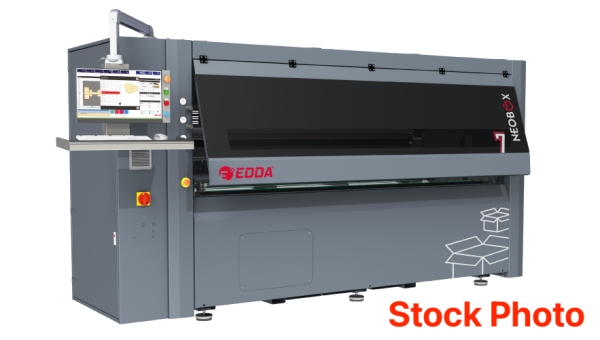

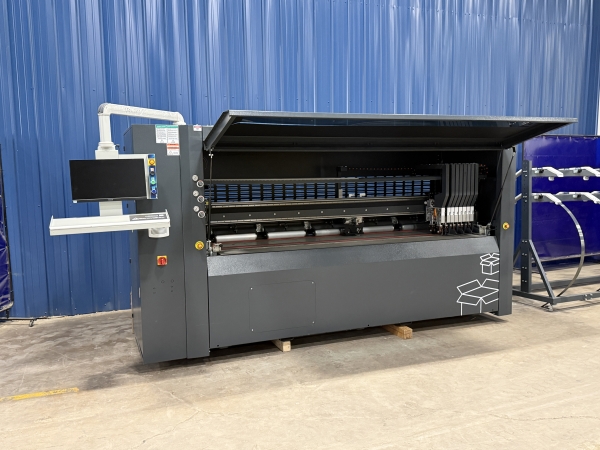

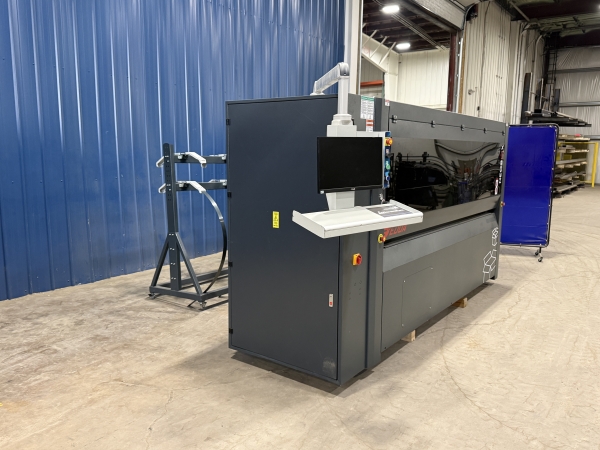

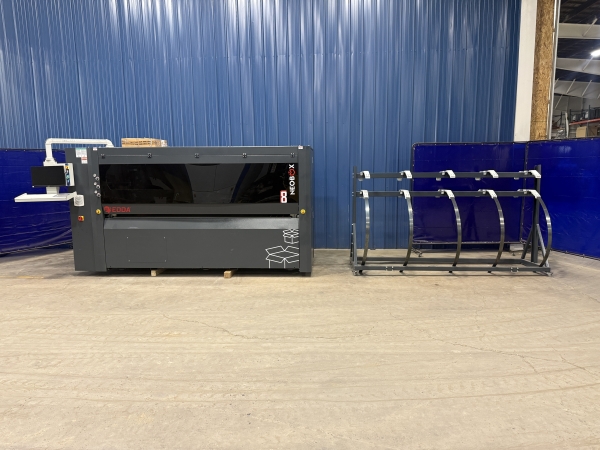

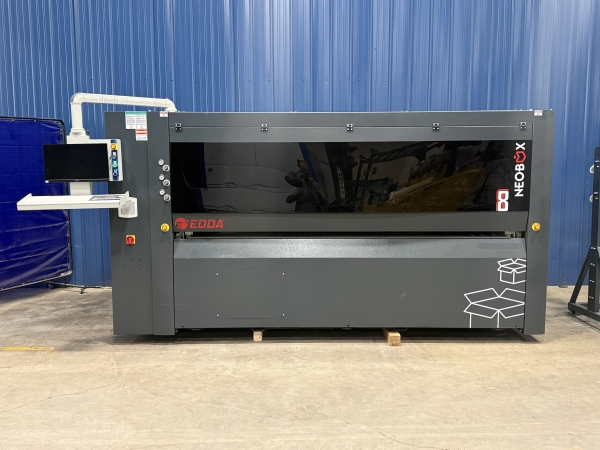

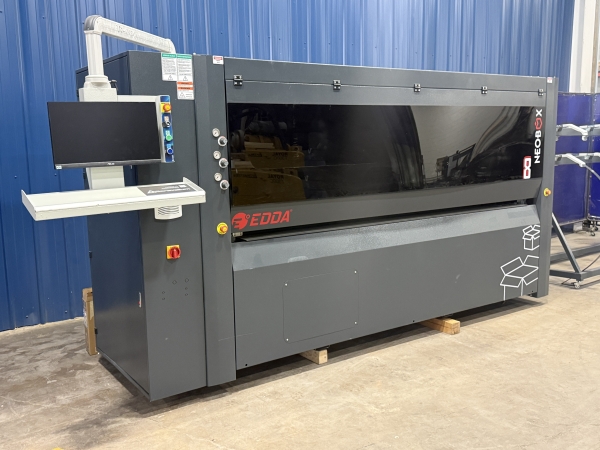

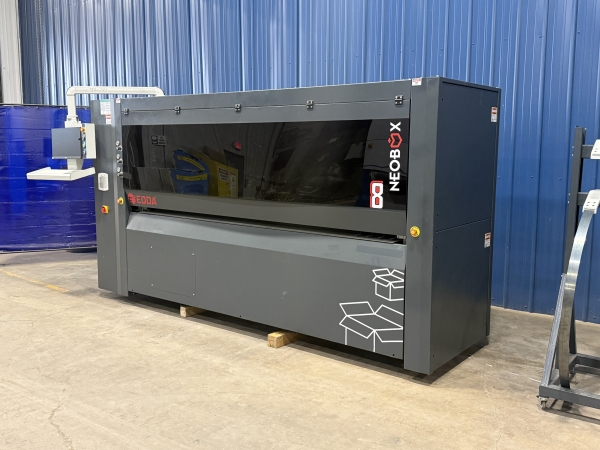

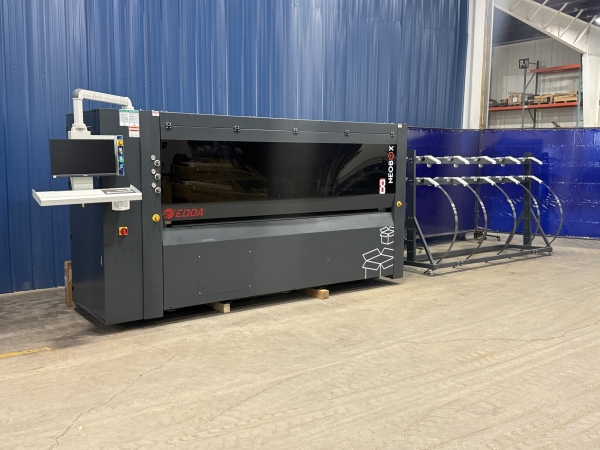

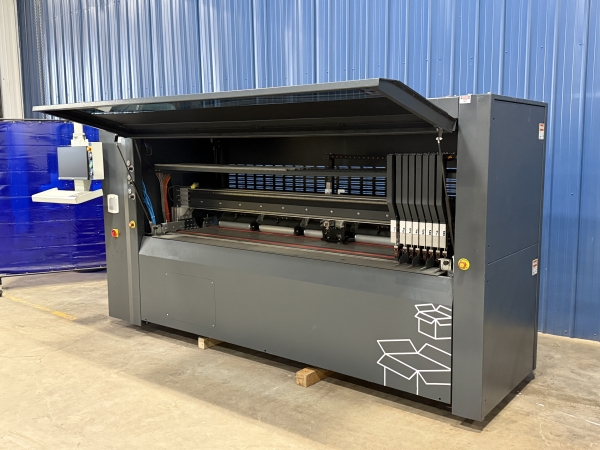

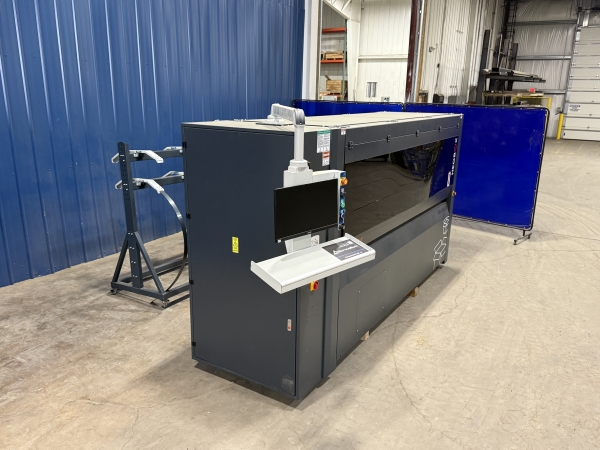

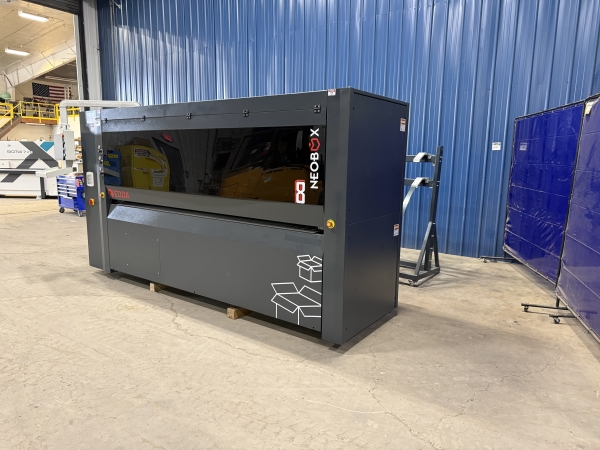

Edda NEOBOX-8-2500 Carboard Cutting Machine

• Machine General Features

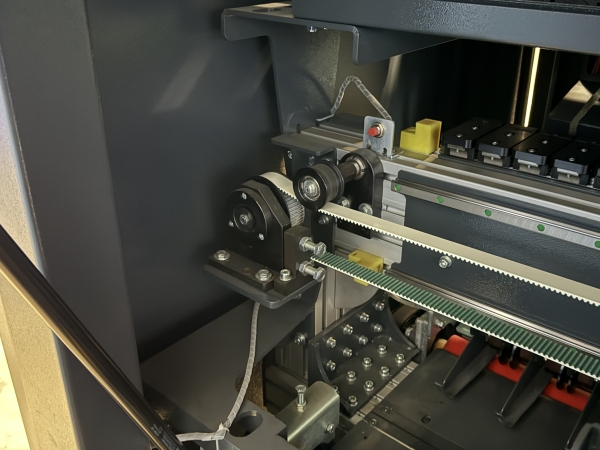

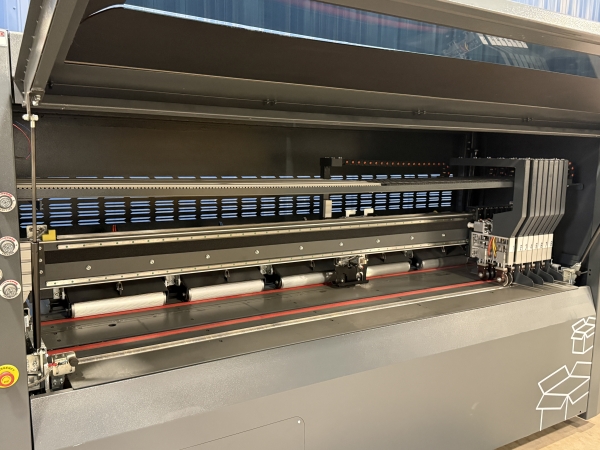

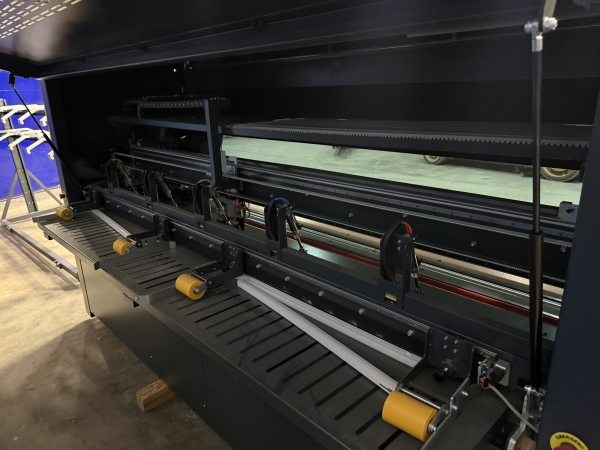

• Tool Positioning System: independent axle driven tool carrying
• Max. Cardboard Width: 2500mm
• Transversal Axis Speed: 200 m/min
• Longitudinal Axis Speed: 120 m/min
• Transversal Station: 1

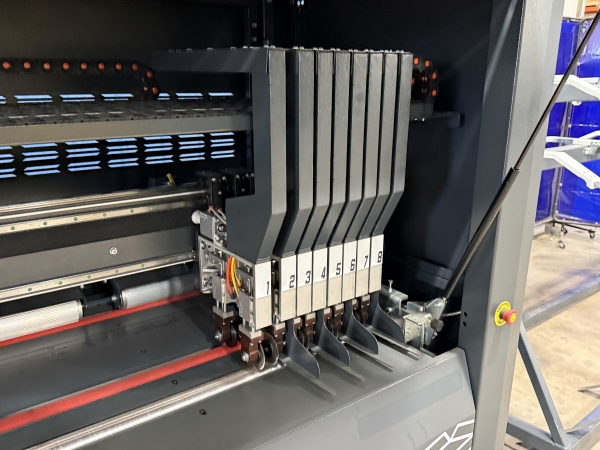

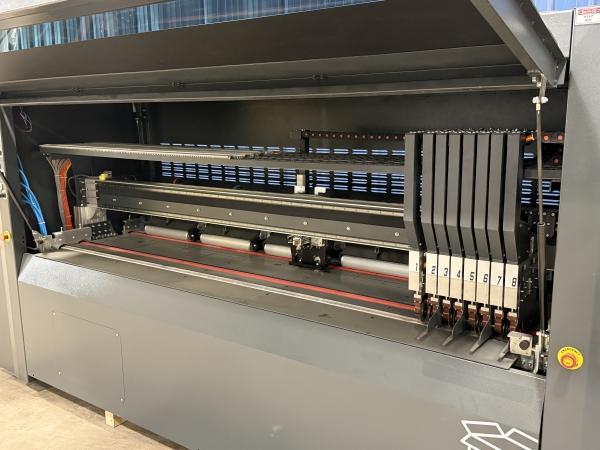

• Longitudinal Station: 7 standard (up to 16 optional)
• Min. Distance of Tools: 20mm
• Min. Length: 350mm
• Suitable Cardboard Thickness: 2-7 mm
• Pre-defined Box Types: more than 50 pre-defined boxes
• New Box Designing Software: installed
• Software: EDDAWORKS
• Operating Temperature: 10°C (50°F) - 40°C (104°F)

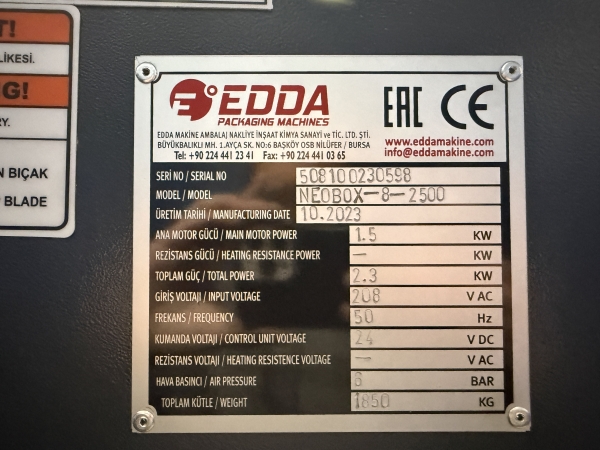

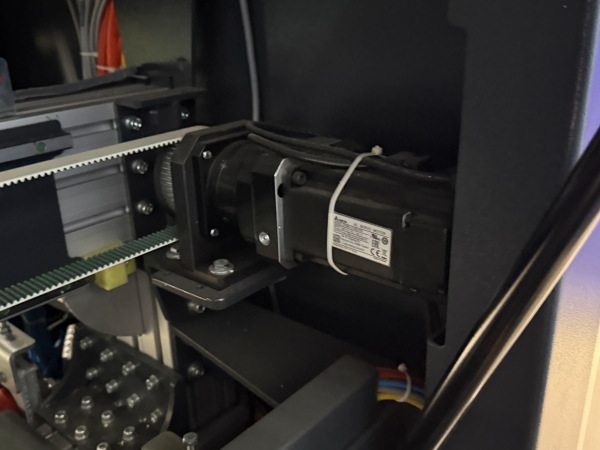

• Main Motor Power: 1.5 kW
• Electric Supply: 208V, 50 Hz, Single Phase (Monophase)
• Total Power: 2.3 kW

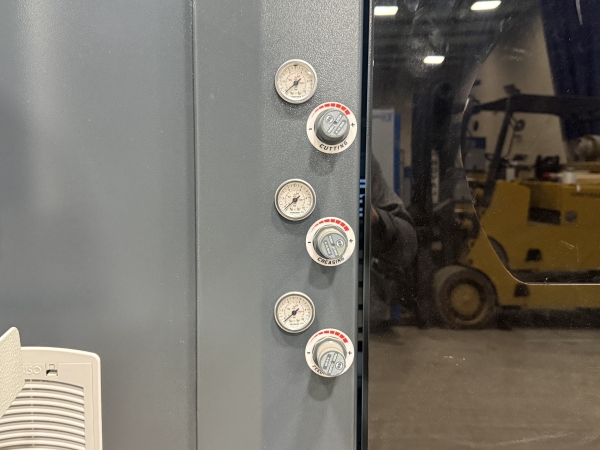

• Air Required: 6 bar
• Total Weight: 1850 kg

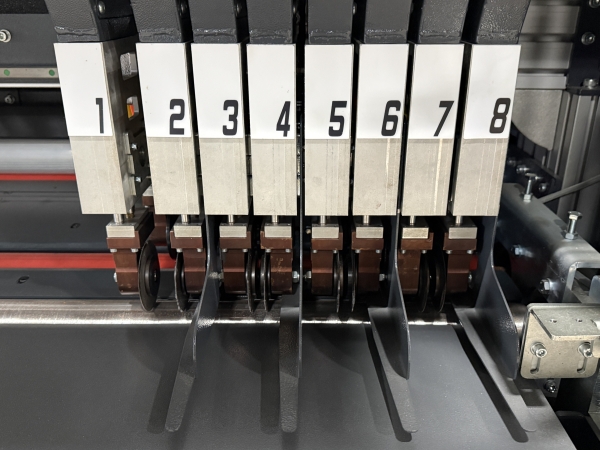

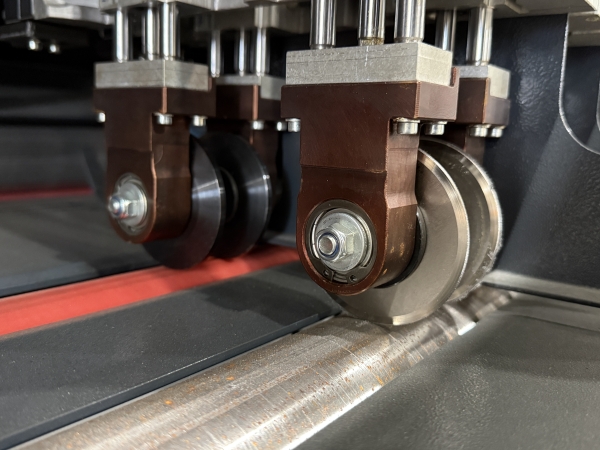

  Cutting Tool Specifications
• Diameter 76mm
• Length: 22mm
• Thickness: 2mm
• Material: High Speed Steel
• NOTE: Specifications from manufacturer literature.
