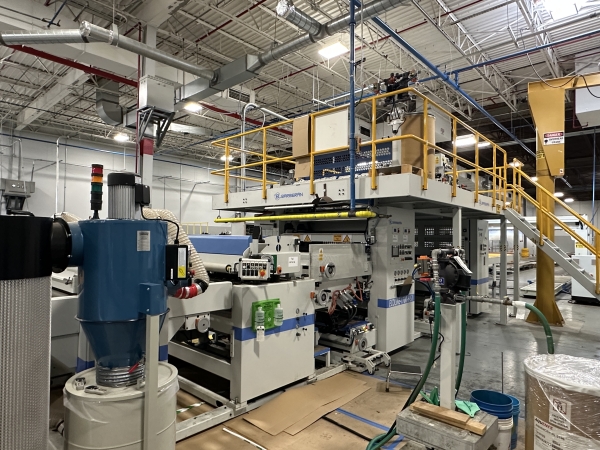

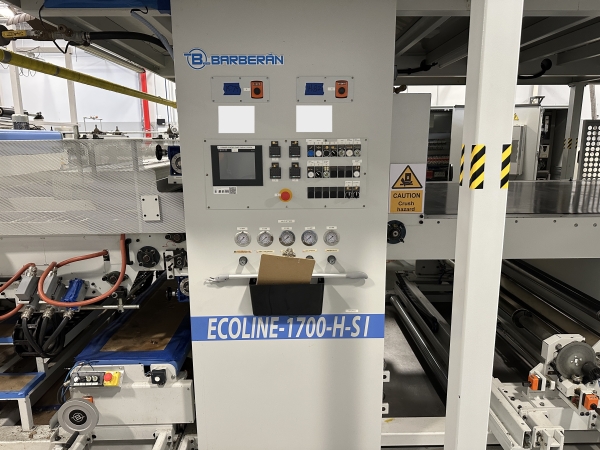

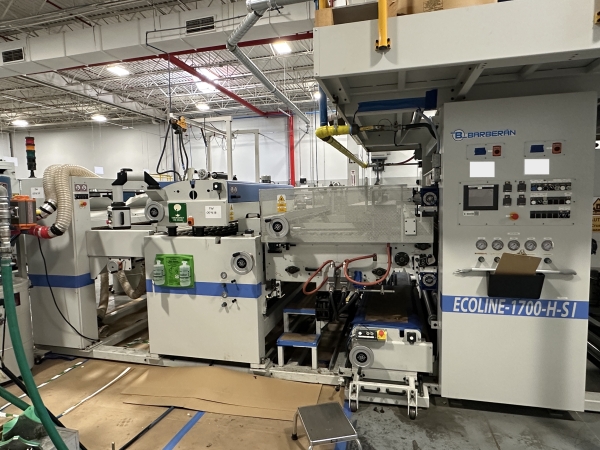

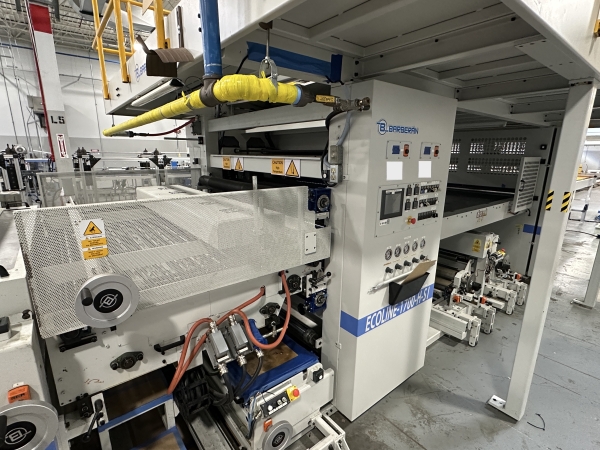

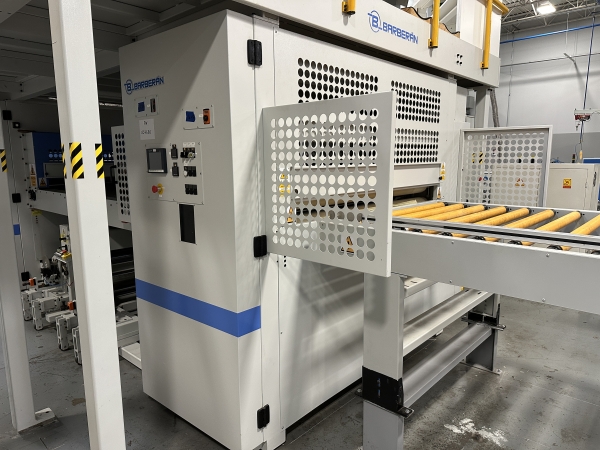

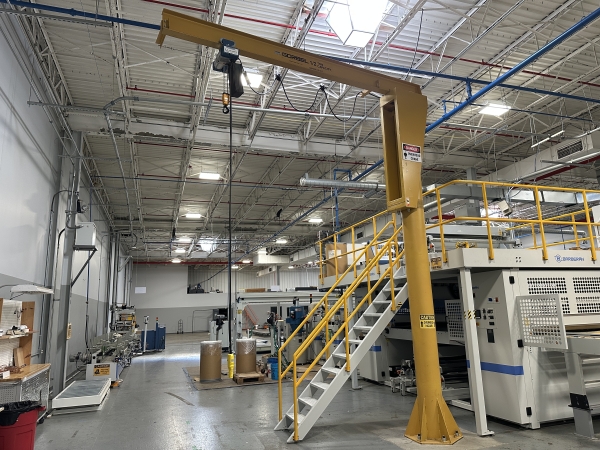

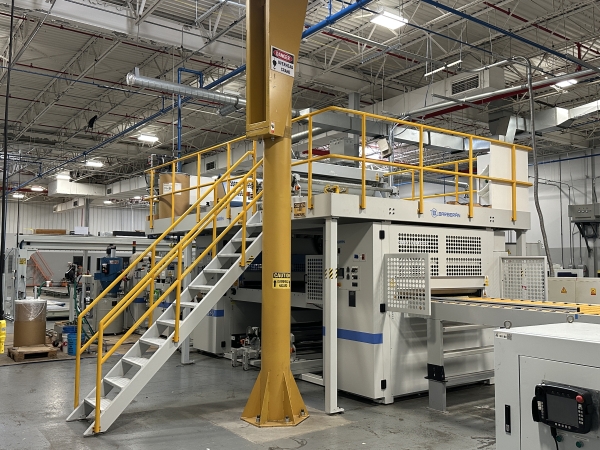

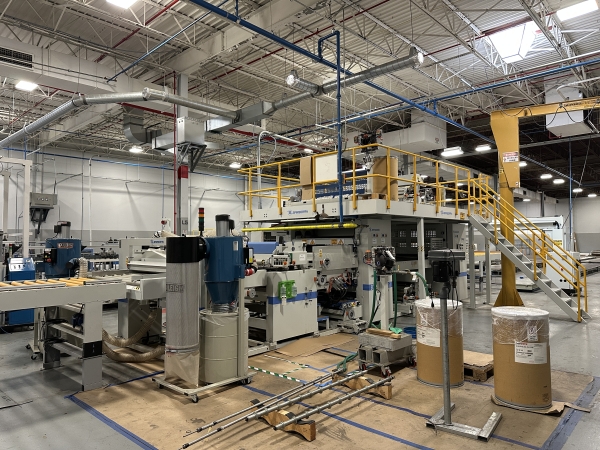

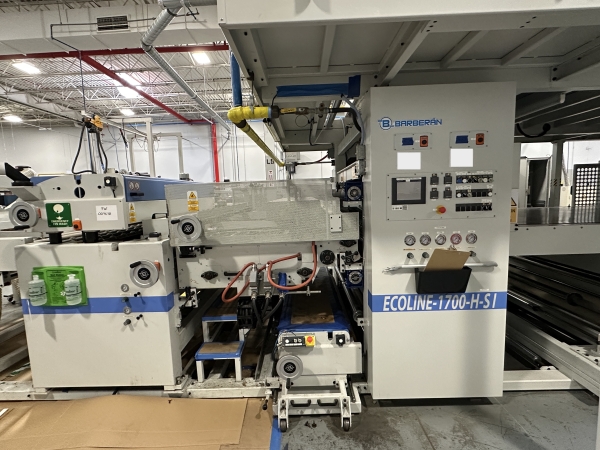

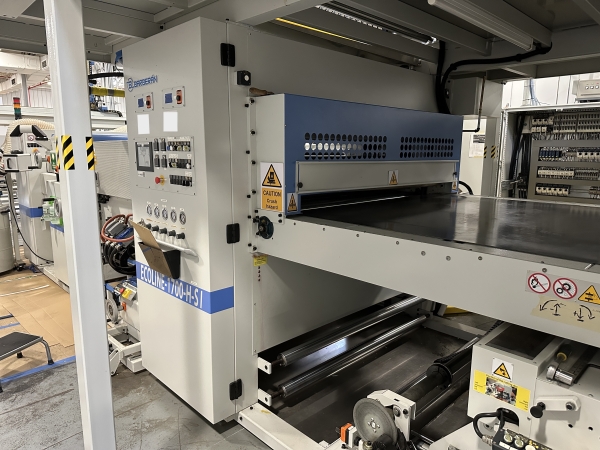

Barberan Ecoline-1700-H-SI Laminating System

• Barberan Model Ecoline-1700-H-SI Laminating System
• Material Capacity:
• Min Work Piece Length: 1500mm
• Max Work Piece Width: 1500mm
• Min/Max Thickness: 3mm/50mm

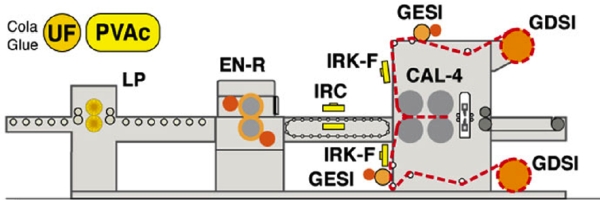

• System Layout:

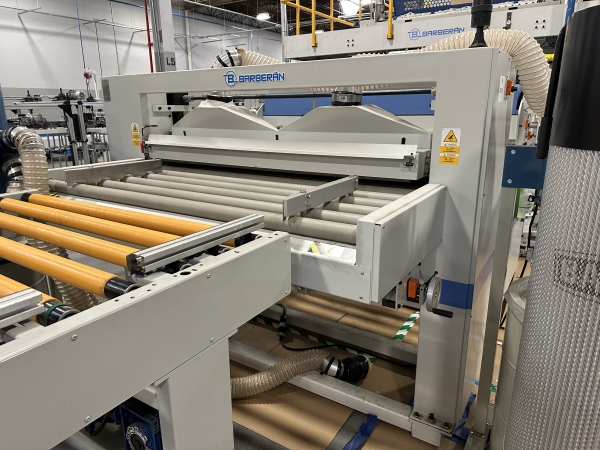

• LP-ECO-1700 Panel Brush Machine
• (2) 180mm (Dia.) Brush Heads Powered by 0.75kW Motors

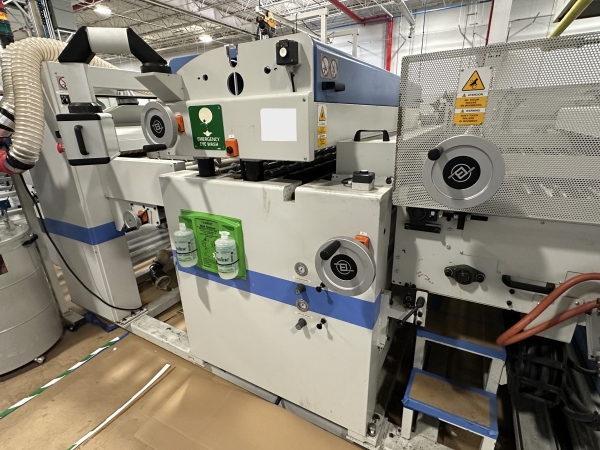

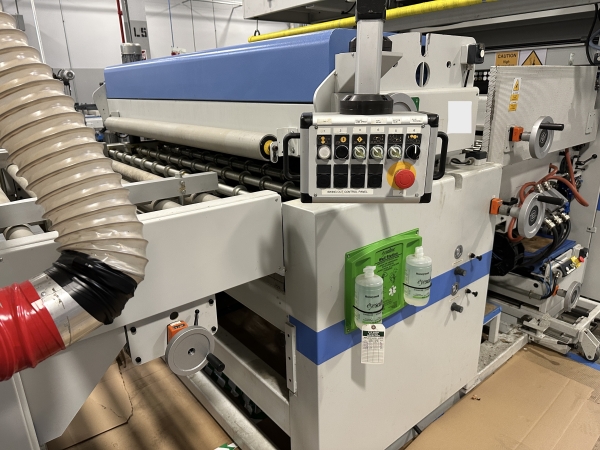

• EN-R-4-1700 Panel Top & Bottom Glue Spreader
• (2) 245mm (Dia.) Glue Applicator Rolls Powered by 0.75kW Motors
• (2) 174mm (Dia.) Doctor Rolls Powered by 0.37kW Motors

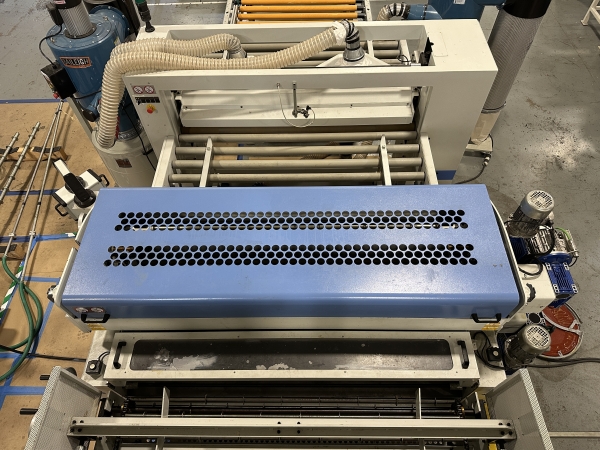

• IRC-SI-1700 Panel Top & Bottom Quartz Infrared Screen Set
• 30 Top & 30 Bottom Lamps - 0.4kW each - Total Power: 24kW

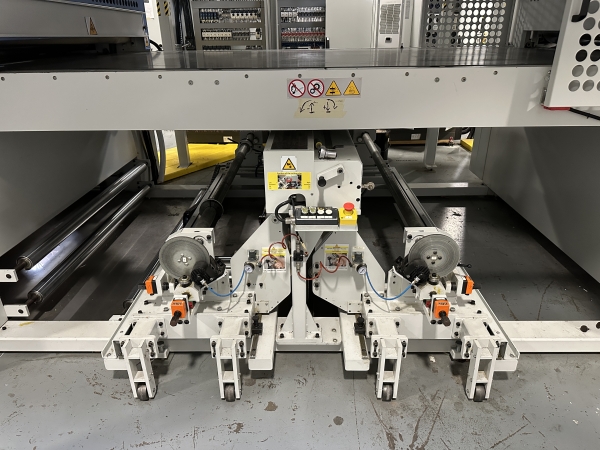

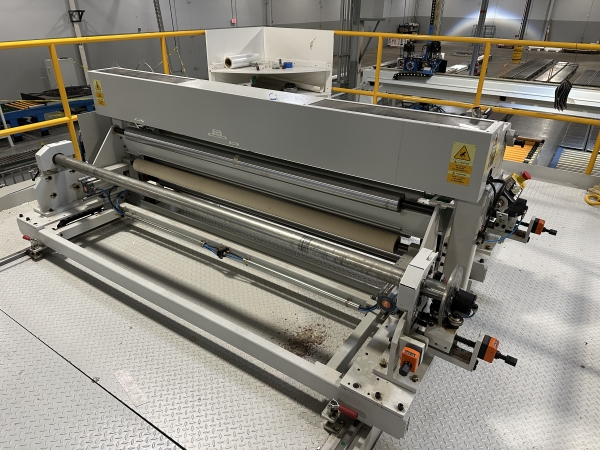

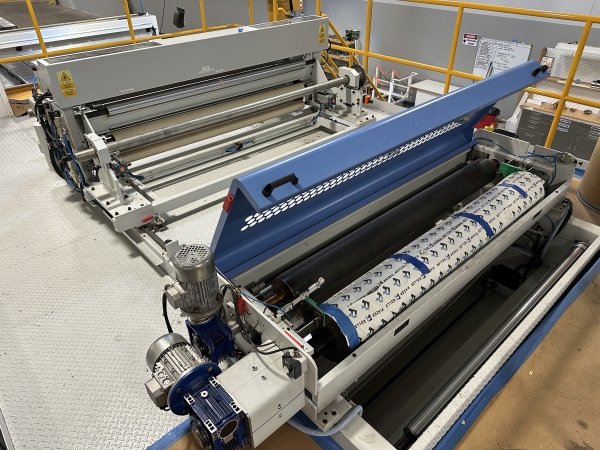

• GDSI-1700 Foil Unwinding Station
• Max Spool Diameter: 600mm
• Max Spool Width: 1,580mm

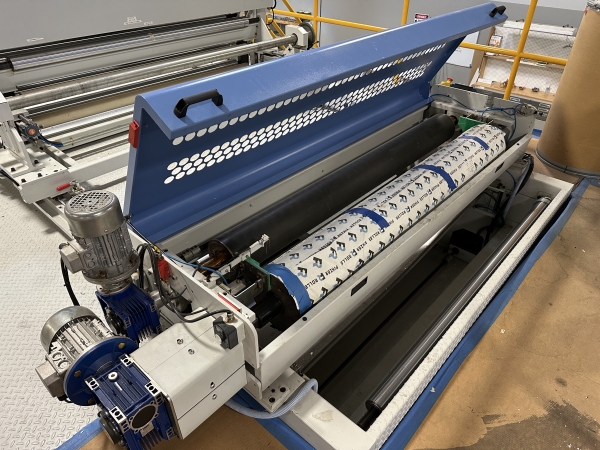

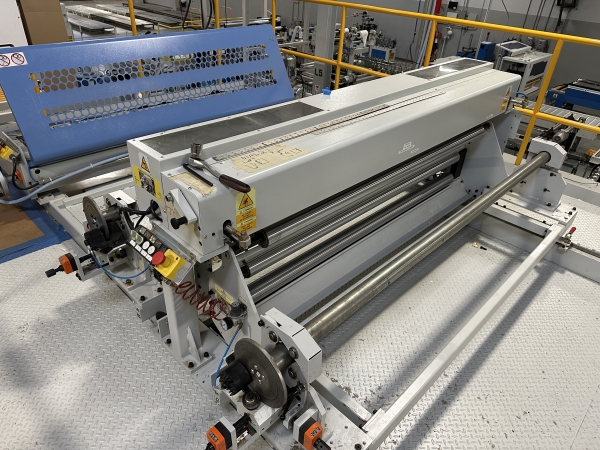

• GESI-1700 Top & Bottom Foil Glue Spreaders
• (2) 245mm (Dia.) Glue Applicator Rolls Powered by 0.75kW Motors
• (2) 174mm (Dia.) Doctor Rolls Powered by 0.37kW Motors
• IRK-F-SI-1700 Foil Top & Bottom Glue Curing Screens
• 15 Top & 15 Bottom Lamps -1kW Each - Total Power: 30kW

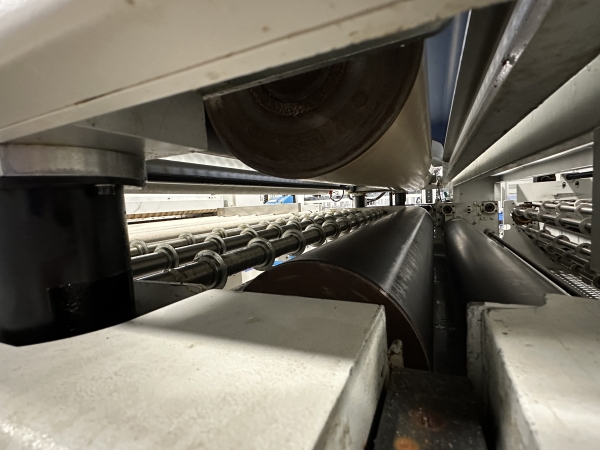

• CAL-4-ECO-1700 Press Rolls
• (4) 300mm (Dia.) Pressure Rolls - Max Force: 30kg/cm (426.7 PSI)
• Pressure Rolls Motor - 3kW

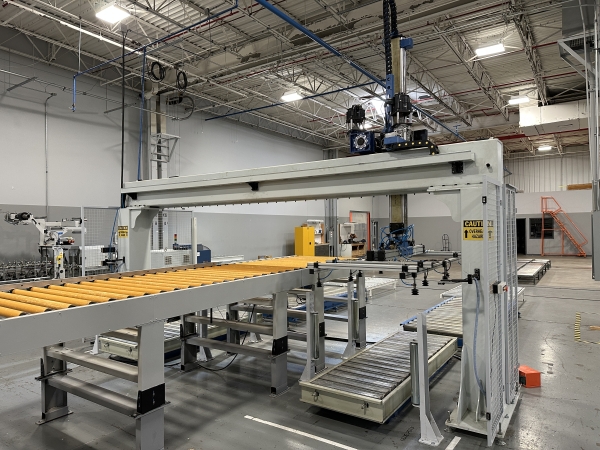

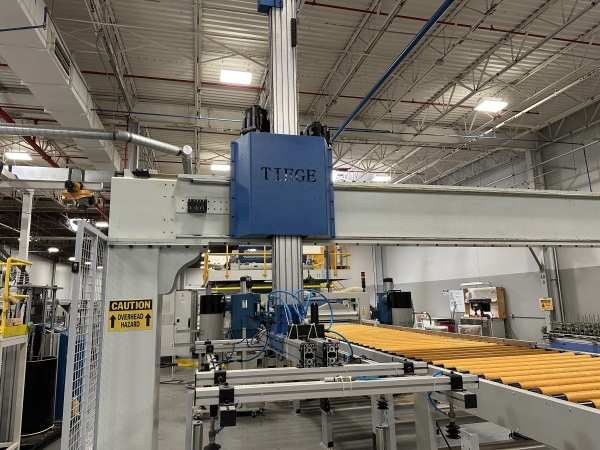

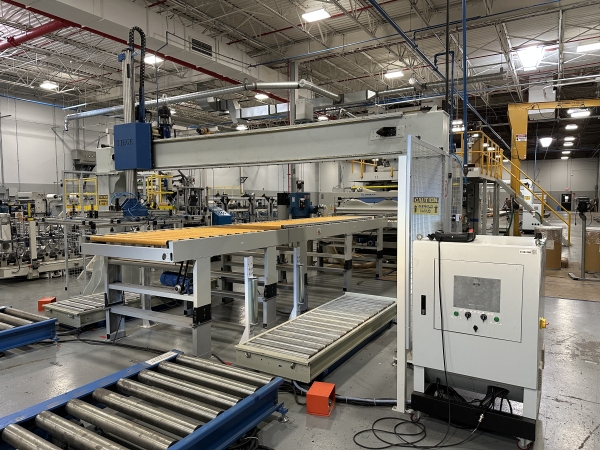

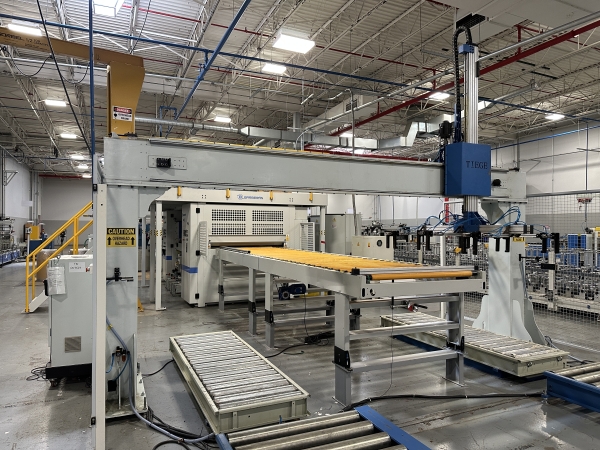

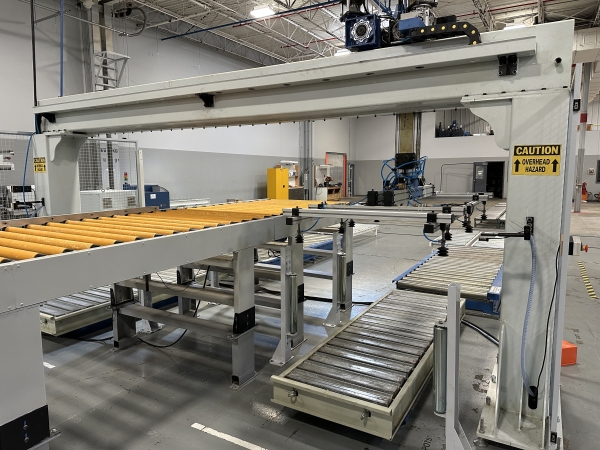

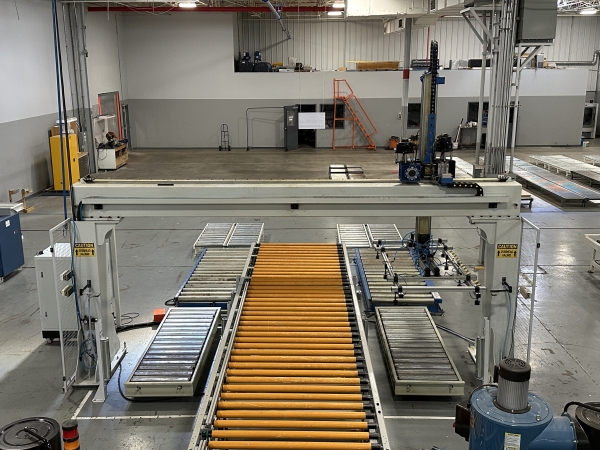

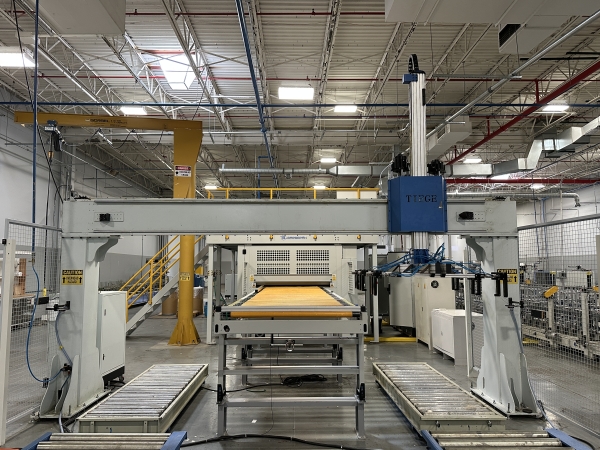

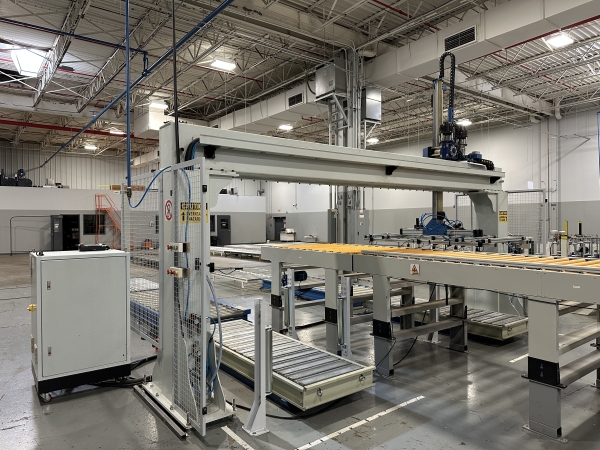

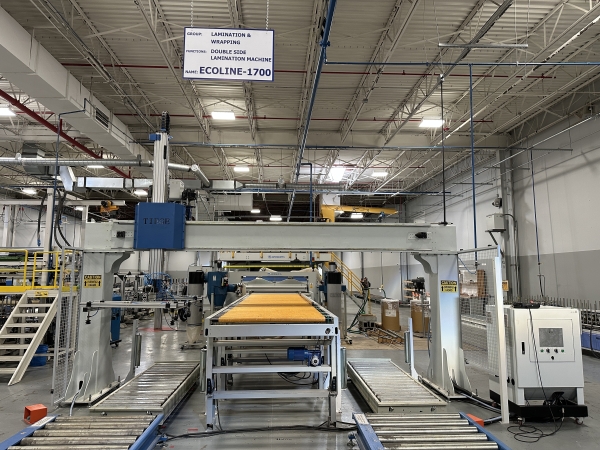

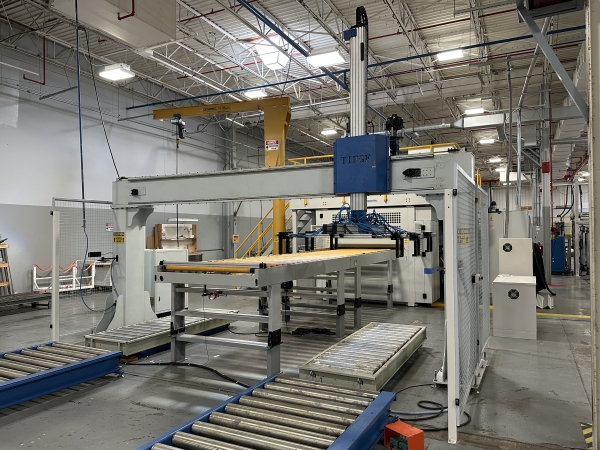

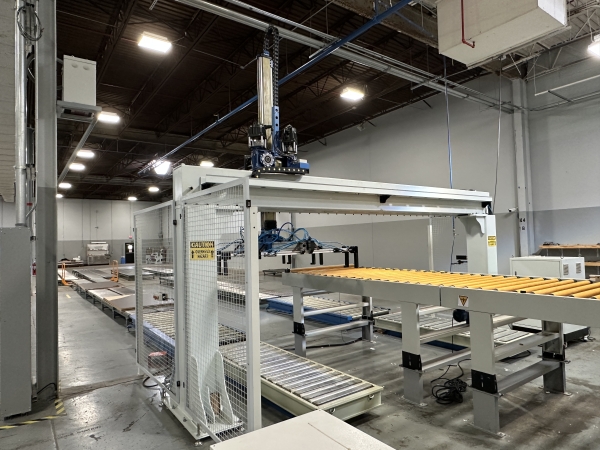

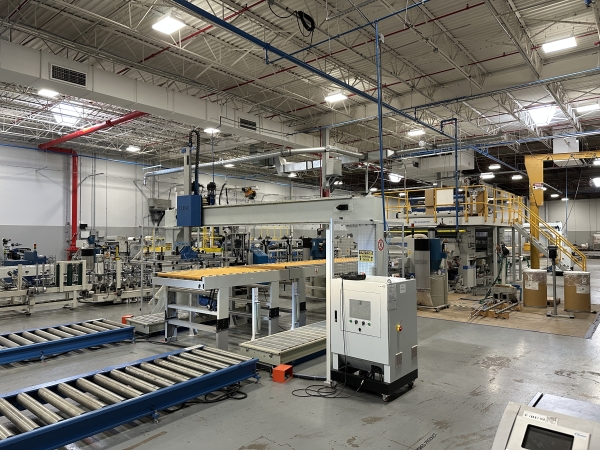

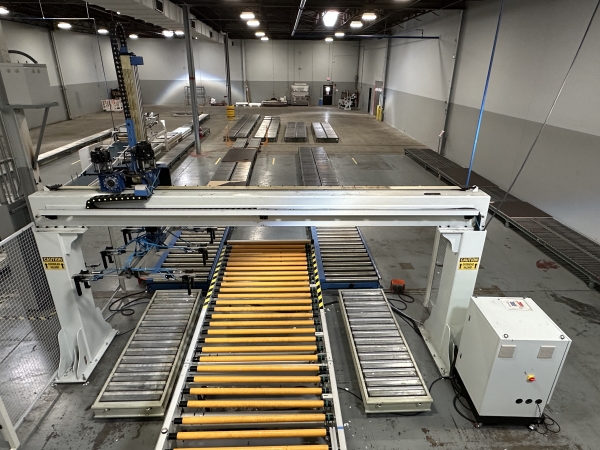

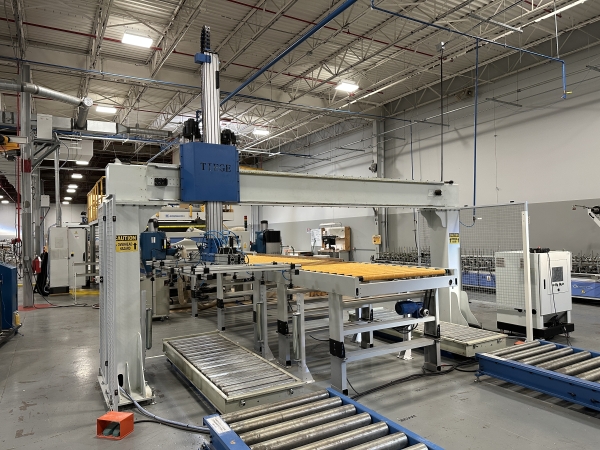

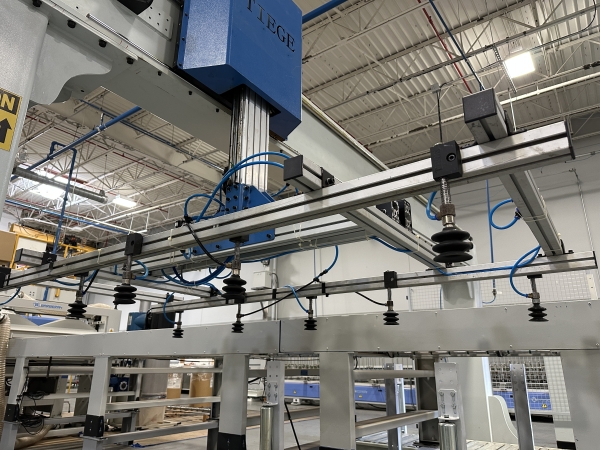

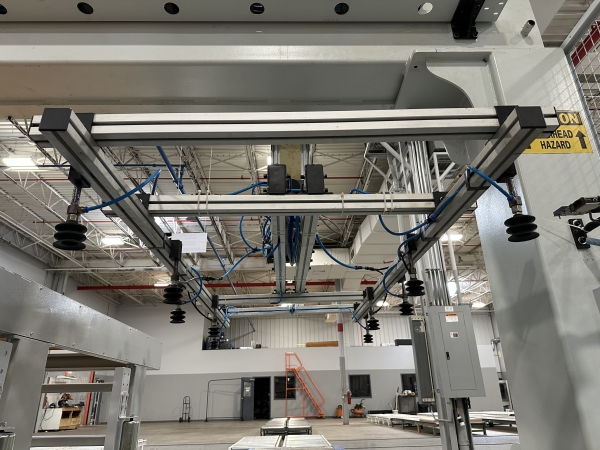

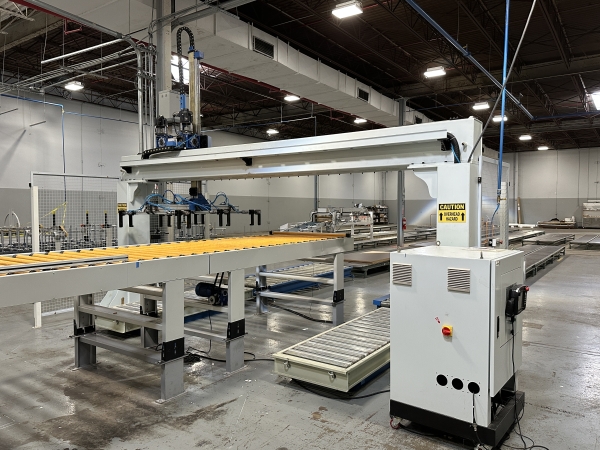

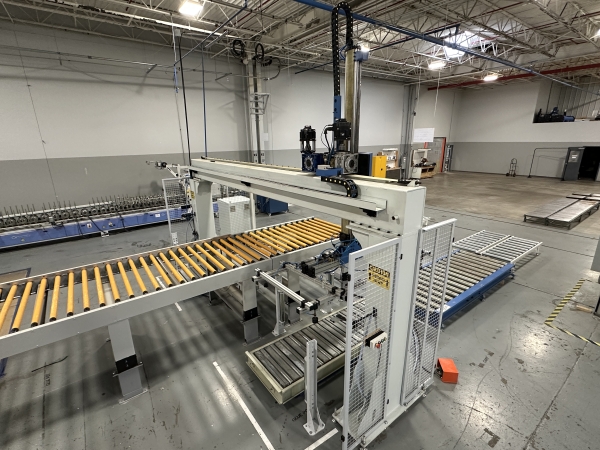

• Includes Tiege Infeed Vacuum Loader & Tiege Outfeed Vacuum Stacker
• Rigging, Loading, Delivery, etc. can be priced based on your needs. Please contact us to discuss.
