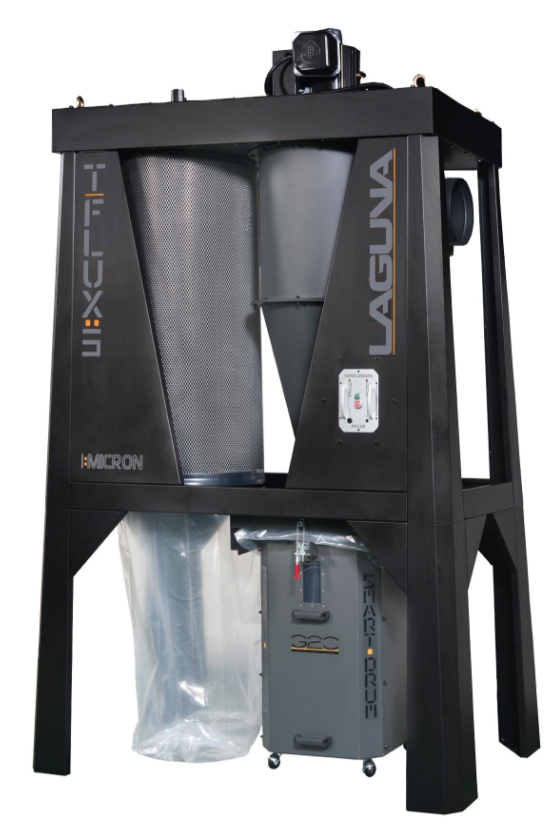

Laguna T Flux 5 Cyclone Dust Collector

• Motor HP 5 HP
• Phase 1
• Voltage 220V
• Amps 22.4 Amps
• Hertz 60
• Plug No
• RPM 3450
• Hand Held Remote Control High Frequency
• Real CFM 2450
• Nominal CFM 4295
• Max Static Pressure (inches of water) 12.1
• Impeller/Fan Size 16
• Impeller Material Steel
• Impeller type Radial Fin
• Balanced ISO 1940
• Inlet Diameters 10
• Drum Capacity 54Gal.
• Octagon Drum Low Pressure Suction
• Drum Collection Bag (Dia. x L) Plastic bag (Ø740 x 1300mmL)
• Canister Filter Type Black 1 Micron
• Filtration Efficiency 0.2-2micron @99.97%
• MERV Rating 12
• Canister Diameter Ø600mm (23.62 )
• Cansiter Length 1200mm (47.24 )
• Filter Surface Area 15m² 162ft²
• Canister filter lower dust collection Plastic bag (Ø610 x 600mmL)
• Wheels None
• Decibel Reading 76 d B(A) (@9.8ft)
