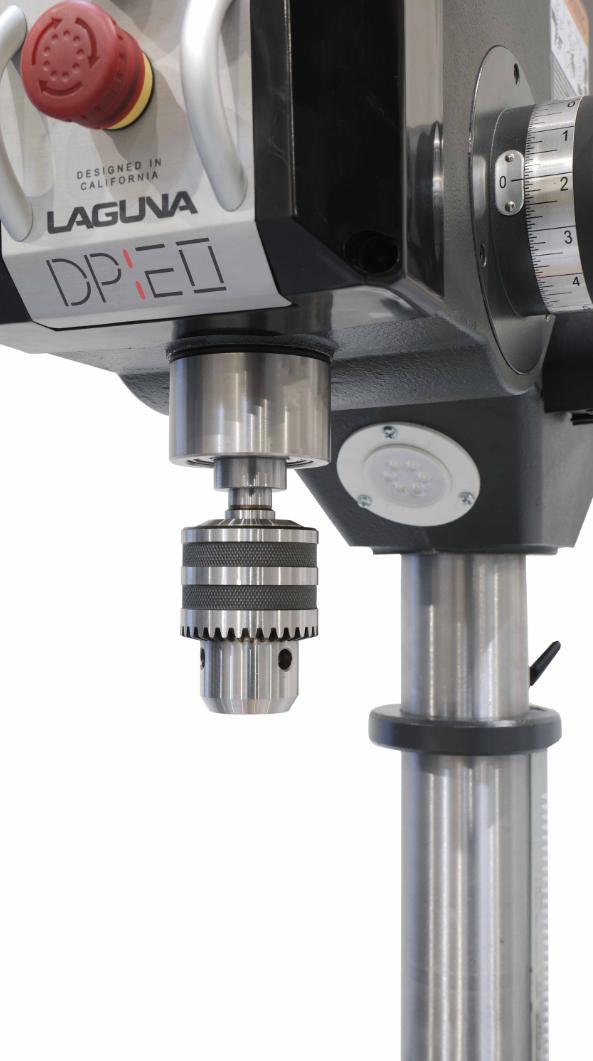

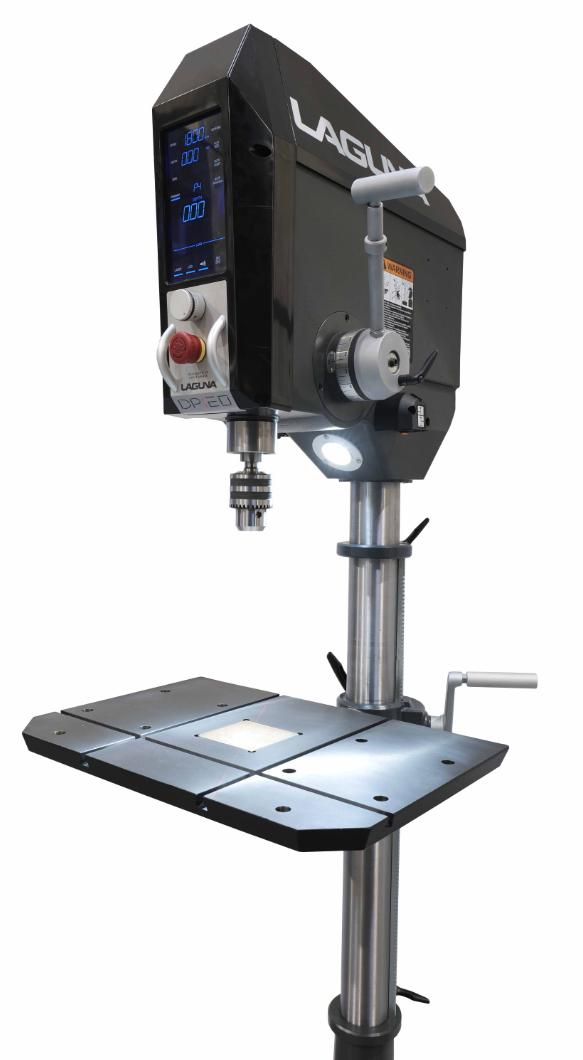

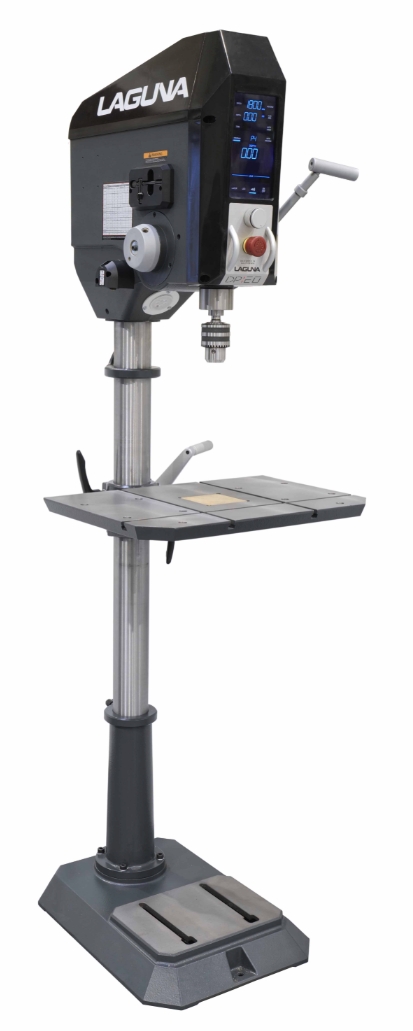

Laguna Model DP:20 Drill Press

• Motor Voltage/hp: 115V/1.5HP
• Breaker: 15 amp. min.
• Power Cord: 72” (1830 mm)
• Table, cast iron: 15”x22” (380 mm x 560 mm)
• Table Tilt: +/- 90 Degrees
• Table Swivel: 360 Degrees
• Laser Light: Included
• Working Light: LED, 5W
• Swing: 20” (510 mm)
• Spindle Taper: MT2
• Spindle Travel: 6” (152.4 mm)
• Chuck: 5/56” – 5/8” (2-16 mm)
• Quill Diameter: 2.17” (55 mm)
• Quill Flange/Collar Diameter: 2.6” (66 mm)
• Spindle to Column, max.: 10” (255 mm)
• Spindle to Table, max.: 29-5/16” (745 mm)
• Spindle to Base: 49.5” (1257 mm)
• Spindle Speed Range: 60-3600 RPM (electronic & variable)
• Column Diameter: 3.15” (80 mm)
