Laguna Model 19-38 Combo Brush/Drum Sander
Machine Available
$3,199.00 Stock #64340N

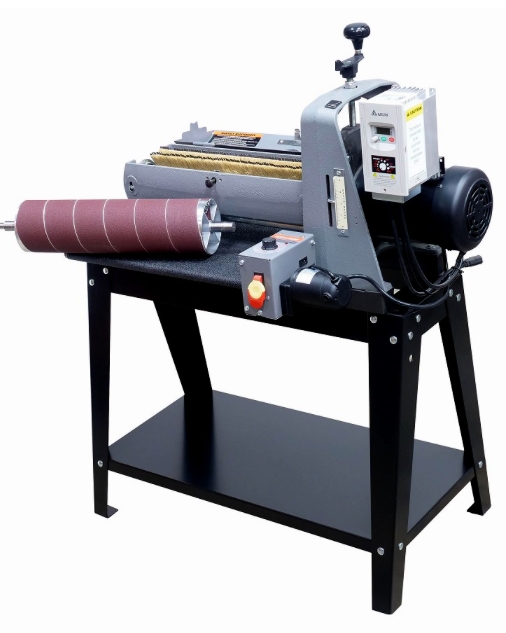

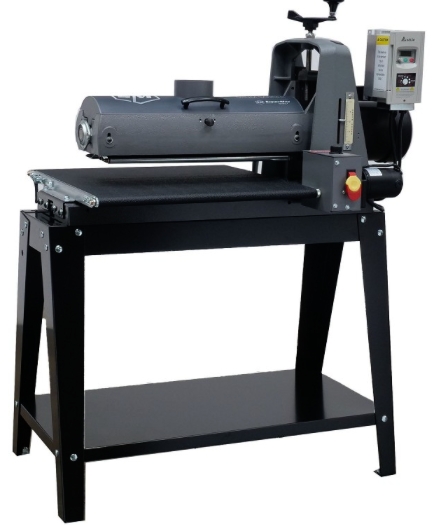

New- Laguna Model 19-38 Combo Brush/Drum Sander
- General Information
- Sanding Head Assembly with Flatter Installed, Conveyor Table Assembly, An Aluminum Drum w/ Two Bearing Sets, A Coupling and one 80 Girt Abrasive Belt, Open Stand Assembly
- True combo machine: Drum and Flat stock. Change sanding heads and sand contoured shapes
- Brush Applications include but are not limited to: white wood sanding, de-nibbing, sealer sanding, primer sanding, UV roughing, metal graining/straight lining, metal de-burring, sanding/polishing solid surface material, scuff sanding, shutter sanding, de-glossing and distressing
- Bench-top unit, standard with 180 Grit Flatter sanding head

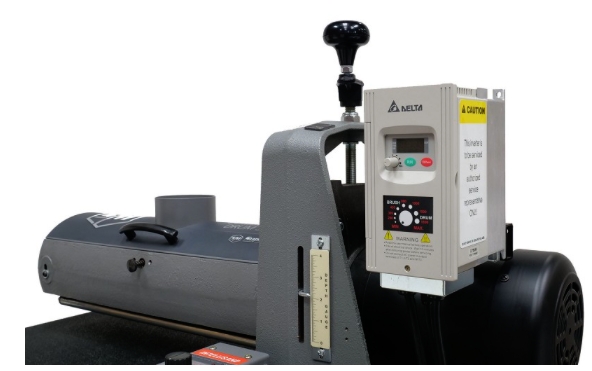

- AC Inverter – Variable Head Speed, 200-1800 RPM
- Tension rollers are adjustable in height, span, and hold down pressure
- Heavy-duty cast iron construction for strength, rigidity, and reduced vibration
- Preset “fast” control to adjust for 38” use
- Specifications
- Maximum Width: 38” (two passes)
- Minimum Length: 2-1/4” to 3-1/2” (varies with application)
- Maximum Thickness: 4” typical (varies with brush/drum style & application)
- Minimum Thickness: 1/32” typical (varies with applications)
- Brush: 5” diameter typical
- Typical bristle length: 1-1/2” (varies)
- Drum Dust Hood: Hinged back with 4” vacuum port
- Height Adjustment: 1/16” per revolution, Depth Gauge included Conveyor
- Motor: 43”–lb. torque Direct drive D.C. motor Infinitely variable 0–10 feet-per-minute
- Drive Motor (TEFC): 1-3/4 HP Continuous-duty
- Additional Option
- 19-38 Combo Wire Brush STAINLESS $999.00
