Razorgage Model Android ST 8' Stop System
Machine Available
Stock #81600N
New- Please Call to Discuss your Particular Application!

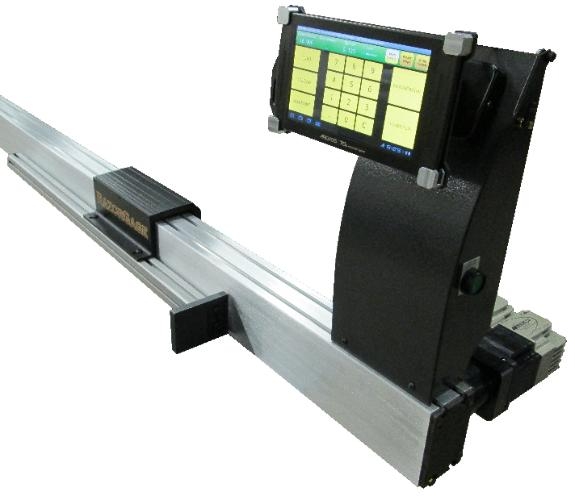

- Razorgage Android ST 8' Stop system
- Highly accurate and easy to use
- Accuracy to +/- .008", repeatabilty +/- .0015"
- Utilizes 7" Touch screen control with Android operating system
- Requires a 120V, 10 Amp power source
- Positioner rides on Hiwin Linear guide and linear bearing system for increased accuracy
- Also uses a 30 tooth zero clearance pulley which allows for increased slip resistence, longer belt life, and the ability to exert a pushing force of 200 lbs at 10 inches per second
- Planetary Gearhead with 3 load paths transmitting torque
- Ability to use decimal or fractional measurements at the press of a button
