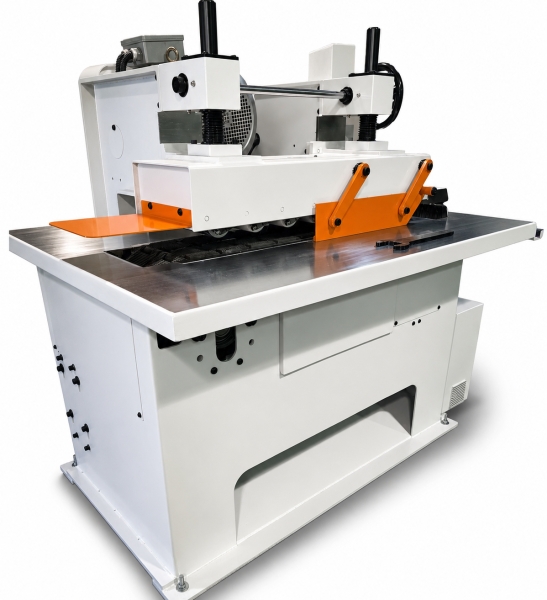

Diehl Model ESL-35 Straight Line Rip Saw

• The NEW ESL-35 Straight Line Rip Saw
• The ESL-35 supports solid-wood operations across:
• Furniture — glue-ready edges for panels and frame stock.
• Cabinetry — edge-glued panels, face frames, and door parts.
• Flooring — straight-line ripping of solid hardwood.
• Custom Millwork & Mouldings — accurate blanks and straightened stock.
• Doors — panel and component stock.
• Machine type - Single-arbor straight line (glue-line) rip saw — straight or hollow-ground cut
• Arbor motor 15 HP (11.2 kW) standard; 20 HP (15 kW) optional Feed motor 2 HP (1.5 kW)
• Feed speed Variable, 50–140 FPM (12–42 m/min)
• Stock thickness 3/8" (10 mm) min; up to 1.5" (38 mm) with a 14" blade, or 2.55" (64 mm) with a 16" blade
• Minimum length 12" (305 mm)
• Throat capacity 19" (482 mm)
• Saw blade 14" or 16" diameter; 2" (50.8 mm) arbor bore
• Arbor speed 3,450 RPM, belt-driven, with automatic spindle/arbor brake
• Accurate glue-line cut Straight or hollow, up to 5' (1.5 m)
• Feed system Diehl chain/race with pressure-roll system
• Safety Dual anti-kickback fingers (cam-controlled upper + lower in table); electrically interlocked saw pit; pivoting pressure-beam side guard
• Dust collection 1,250 CFM required (1–6" and 1–3" openings)
• Worktable height Nominal 34" (864 mm)
• Electrical 208/240/480/575 V, 3-ph, 60 Hz; 380 V, 3-ph, 50 Hz; 110 V control circuit
• Dimensions 65" L × 53" W × 56" H (1651 × 1346 × 1423 mm)
• Weight 2,750 lbs net (2,960 lbs crated; 3,275 lbs export-crated)
