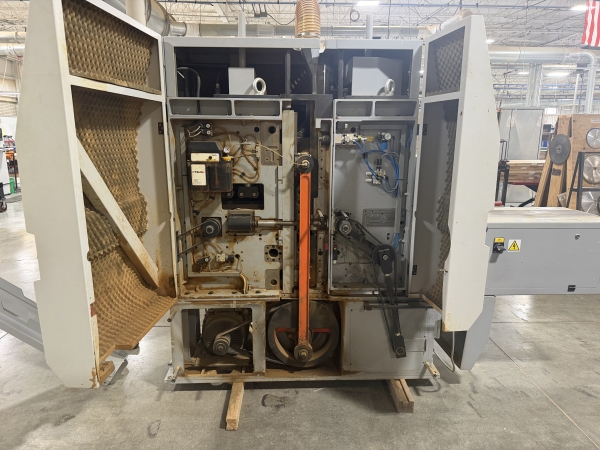

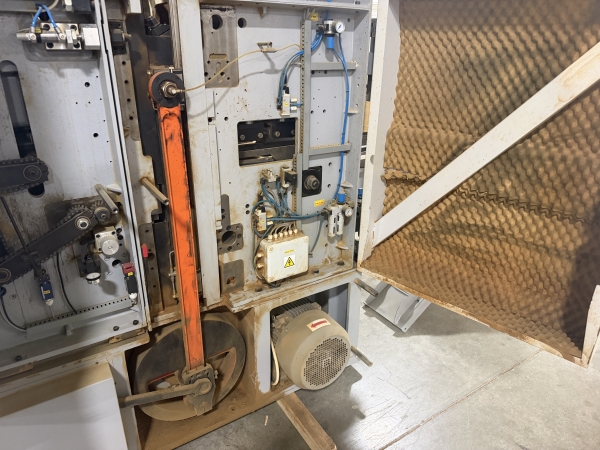

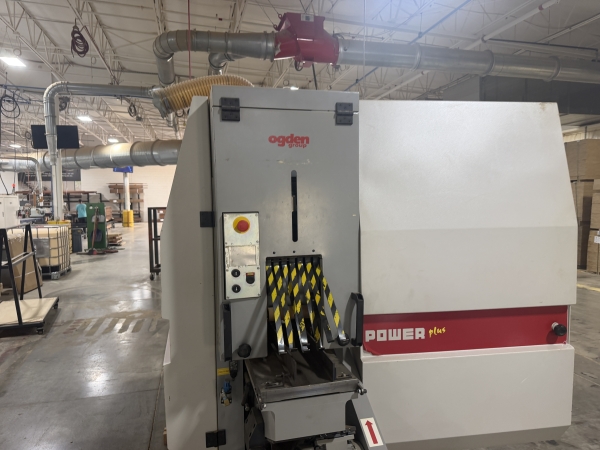

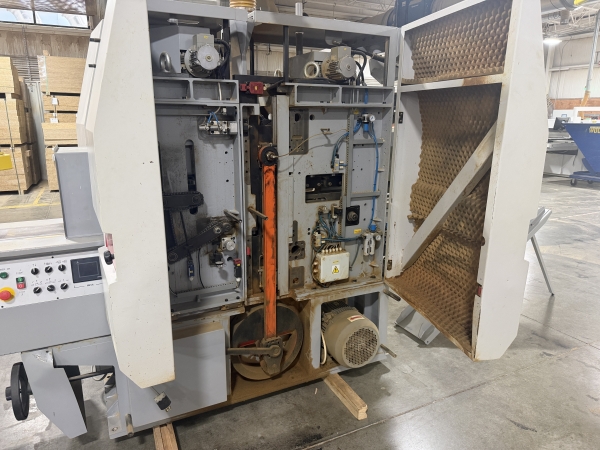

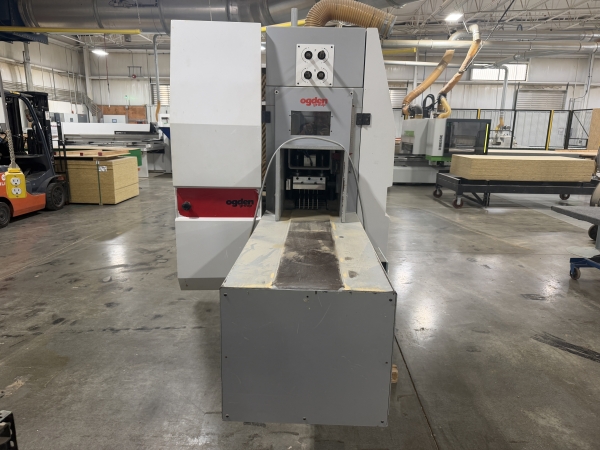

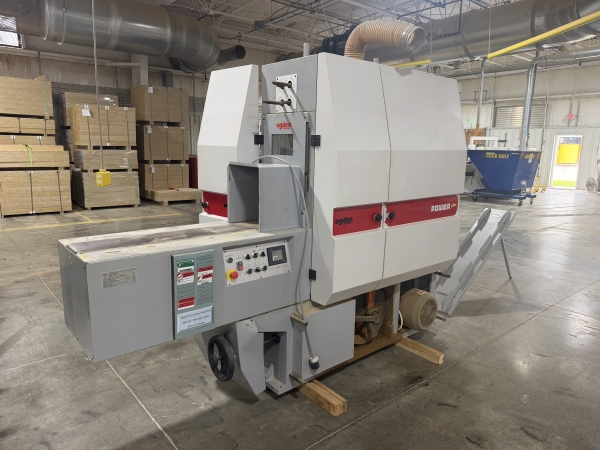

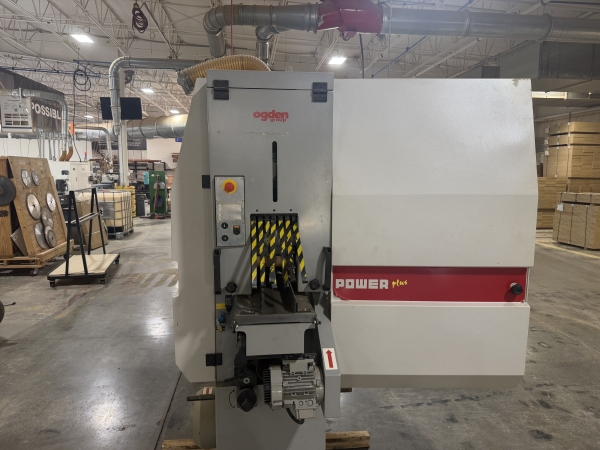

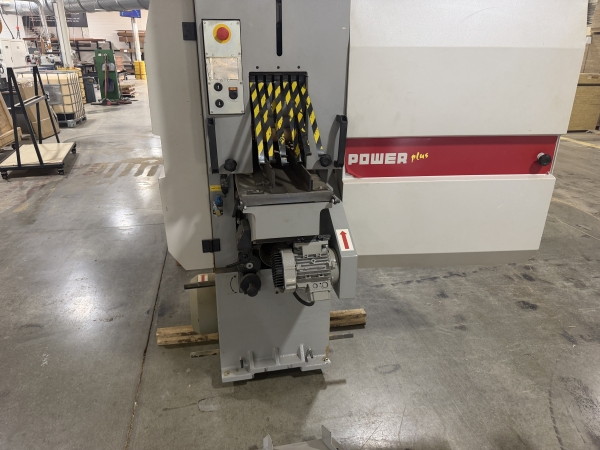

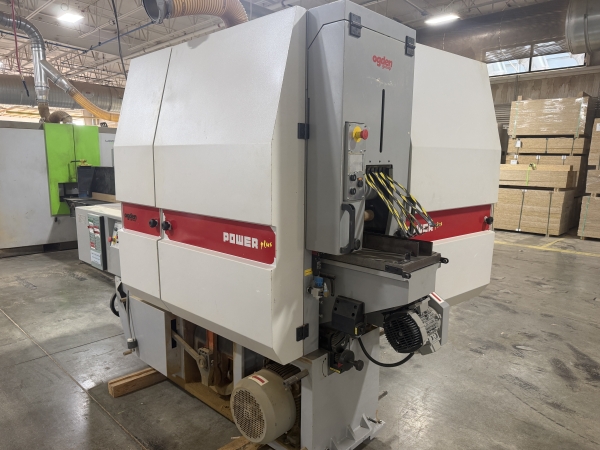

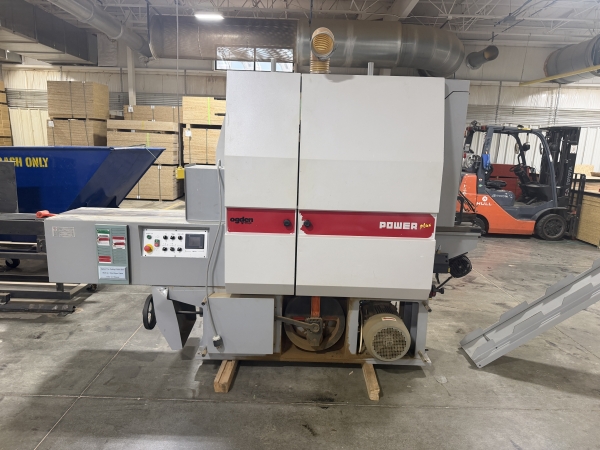

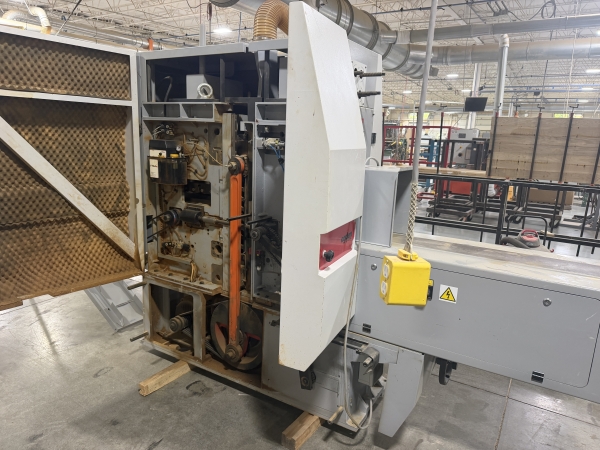

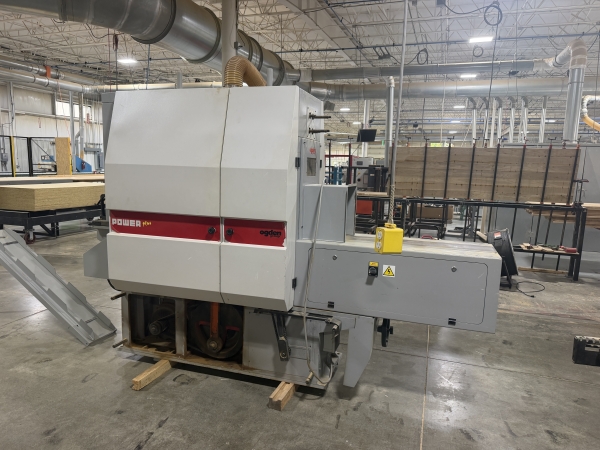

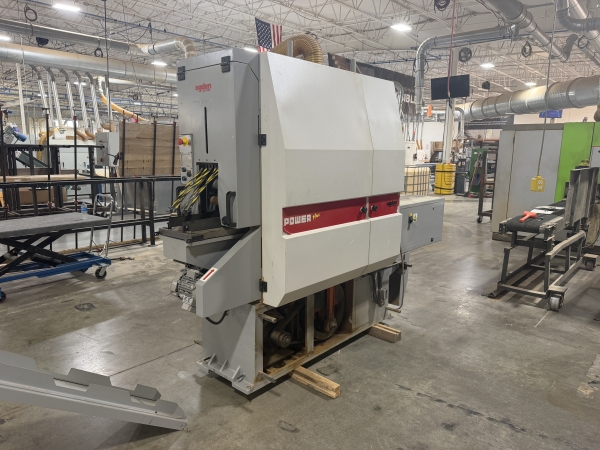

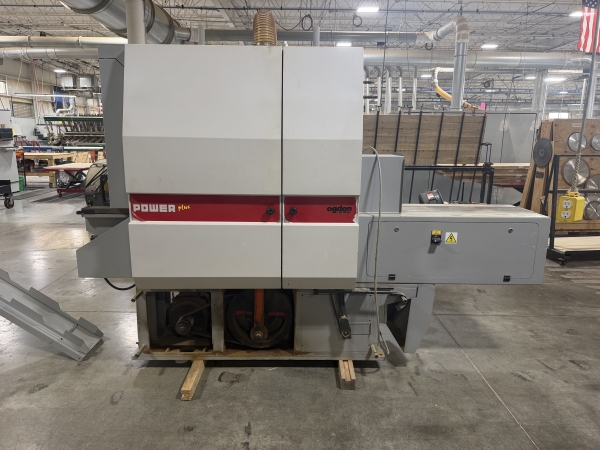

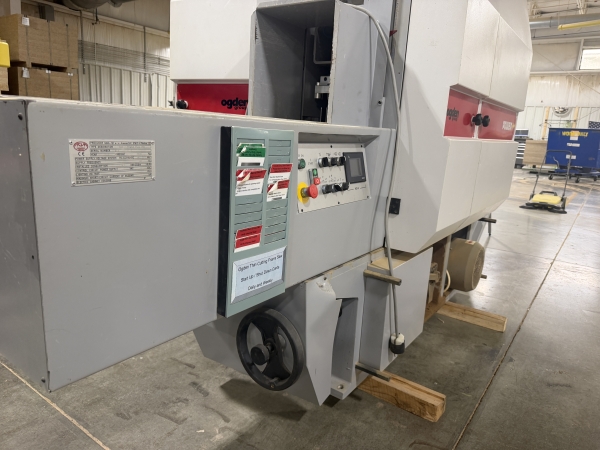

Ogden Model Power Plus 350 Frame Saw

• Ogden Power Plus 350 Thin Cutting Frame Saw and Planer (Model TR88)
• Includes option for two-sided planer on outfeed.
• The Power Plus Thin-Cutting Frame Saw was developed for cutting solid wood blocks into glue-able slats with a minimum of saw kerf waste.

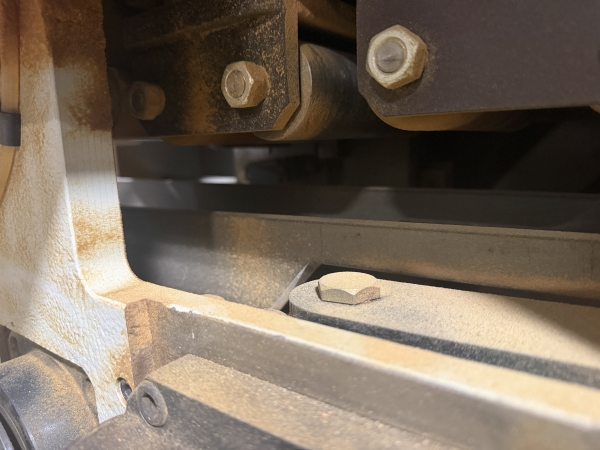

• Power Plus uses lineal bearing guides which eliminates all play between the carriage and the base of the frame. This play free guide system results in less vibration of the machine and also accurate and smooth cut on the product.
• Machine is equipped with:

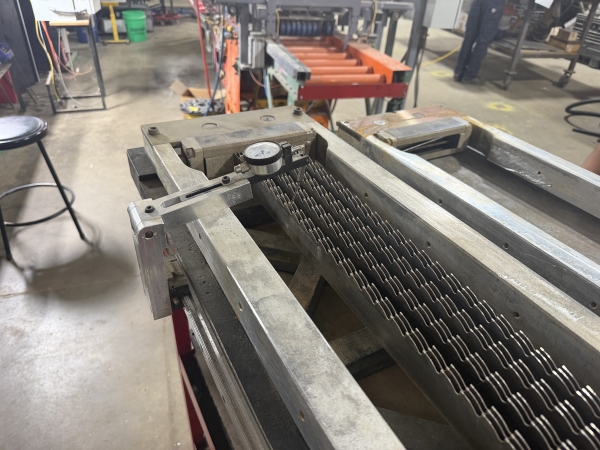

• 1 Setup frame change device with dial indicator

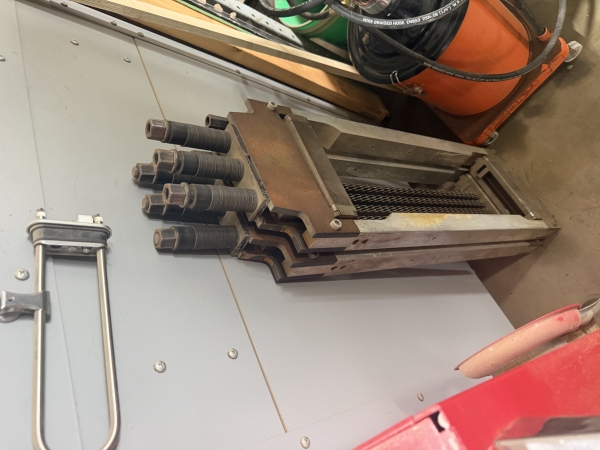

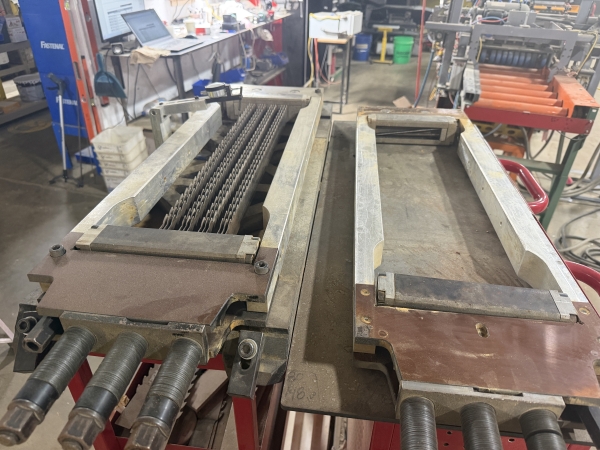

• 3 Saw frames according (2 short and 1 long)

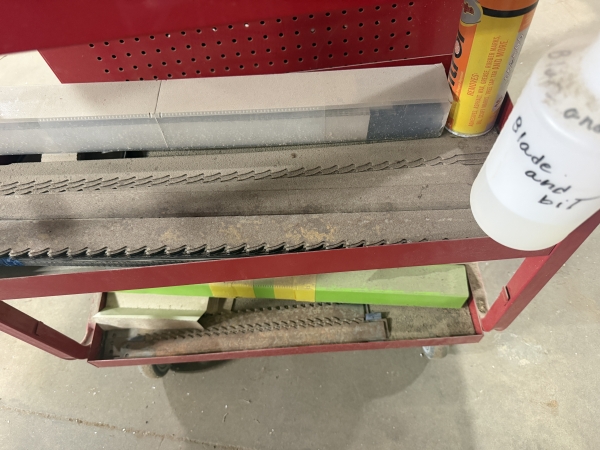

• Multiple Sets of Saw Blades

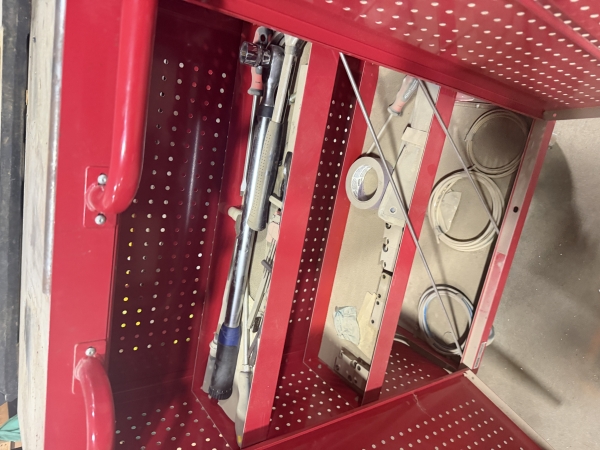

• 1 Precision torque wrench (200 Nm)
• 1 Chip breaker
• 1 Air blast system

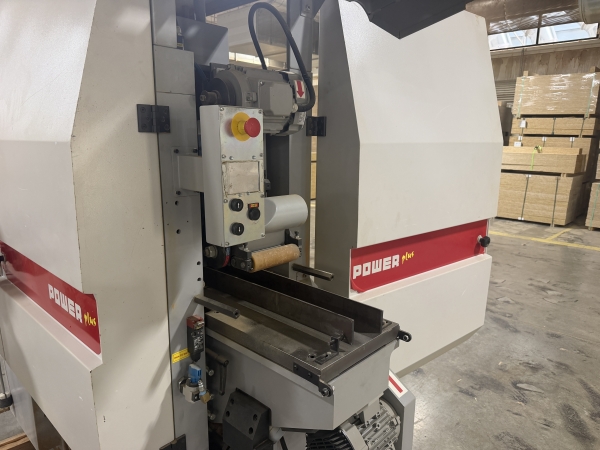

• Automatic raise lower of the top feed rollers via electrical push button
• Digital feed speed indicator

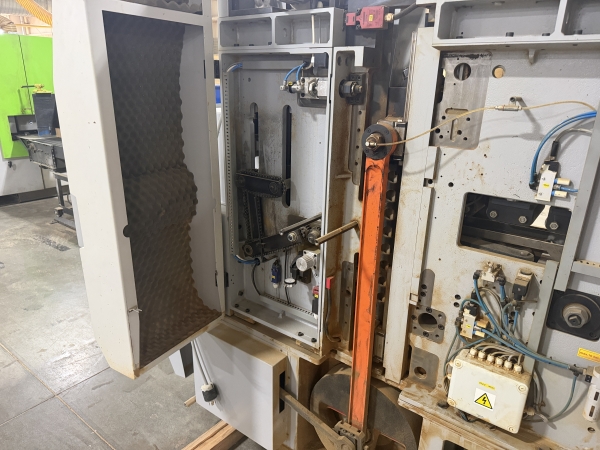

• Automatic opening of the machine for frame removal

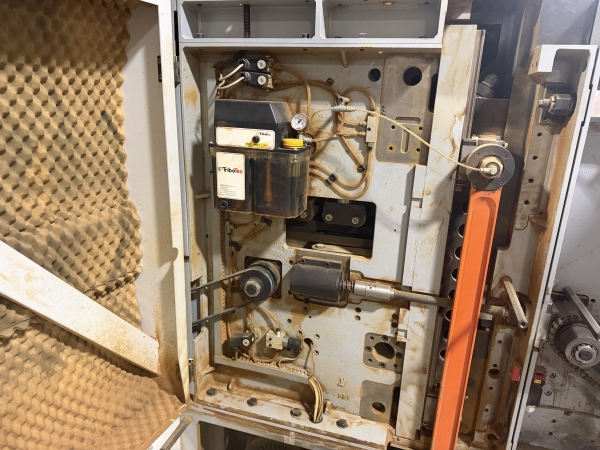

• Automatic central lubricating system

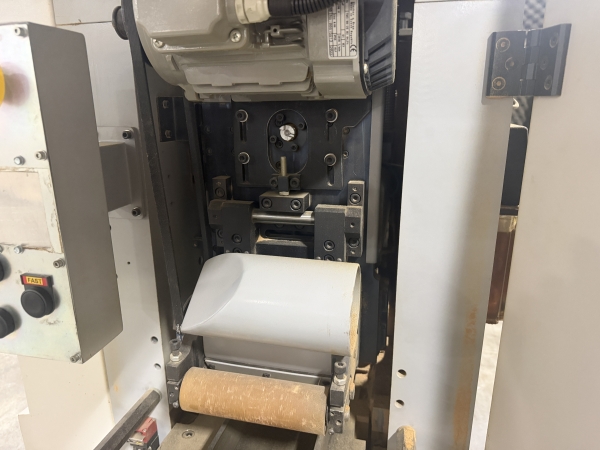

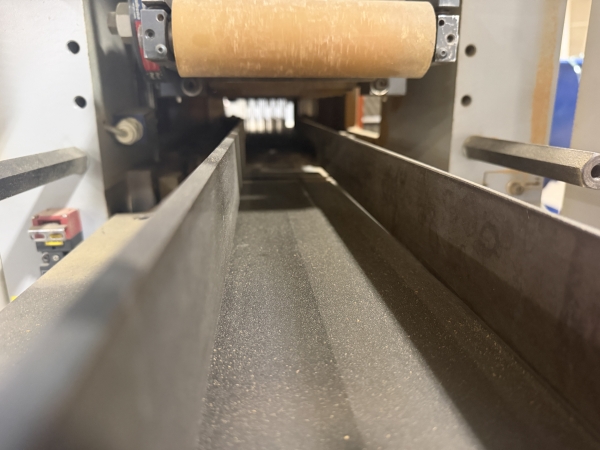

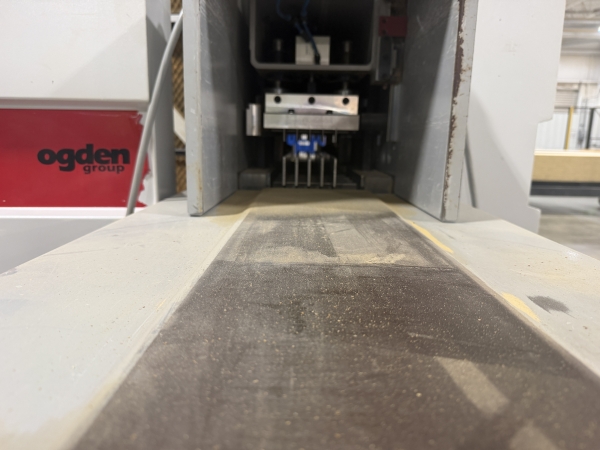

• Driven feed rollers top and bottom
• TECHNICAL DATA
• Voltage 480 V 60 HZ
• Main Motor 15 kW
• Feeding Speed 0.3-1.5 m/min
• Strokes of the Saw Frame 160 mm
• Strokes per minute 400 strokes/min
• Cutting Height Adjustable 100 - 350 mm (4" - 13.5")
• Cutting Width with side guide 1 x 150 mm
• Min. Block Length 300 mm
• Minimum Slat Thickness 2.5 mm (depending on cutting height)
• Cutting Accuracy approx. + / - 0.2 mm
• Saw Kerf 1.40 mm
• Saw Blade Life-Stellite Saws approx. 10 - 40 hrs.
• Dust Hood Diameter 1 x 120 mm top 1 x 160 mm bottom
• Machine Dimensions L 2600 mm x W 800 mm x H 1700 mm
• Machine Weight 3,700 kg or 8,000 lbs.
• 480v, 3ph
