OSI Machinerie Model SCP-24 Self-Centering Double-Sided Planer
Machine Available
Stock #52177

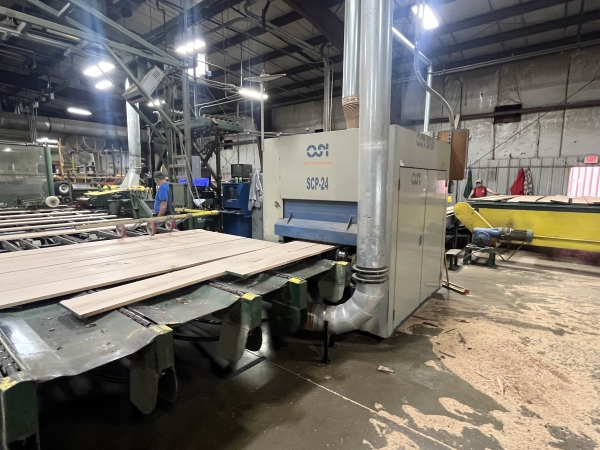

Used- OSI SCP-24 24" Self-Centering Double-Sided Planer Line

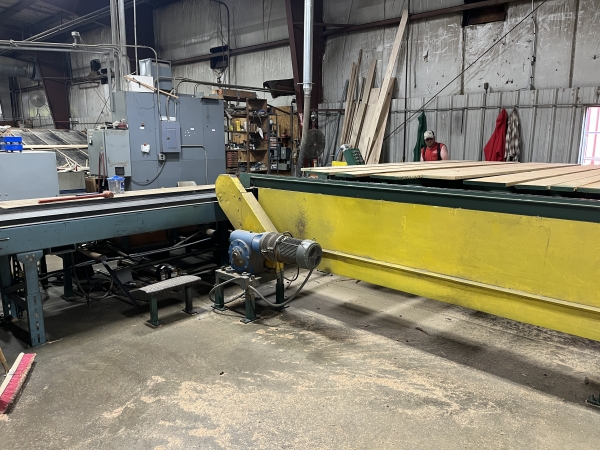

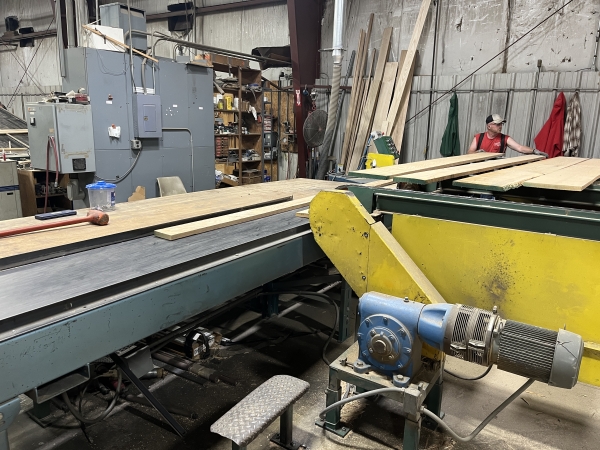

- Line Consists of the following: Driven Roll Case, 3 arm tilt hoist with sticker belt conveyor, lateral transfer deck, in-feed belt conveyor, OSI SCP-24 self centering planer, and panned out-feed lateral deck

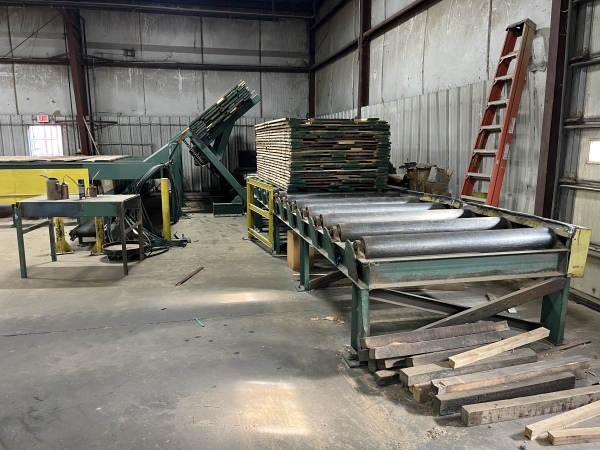

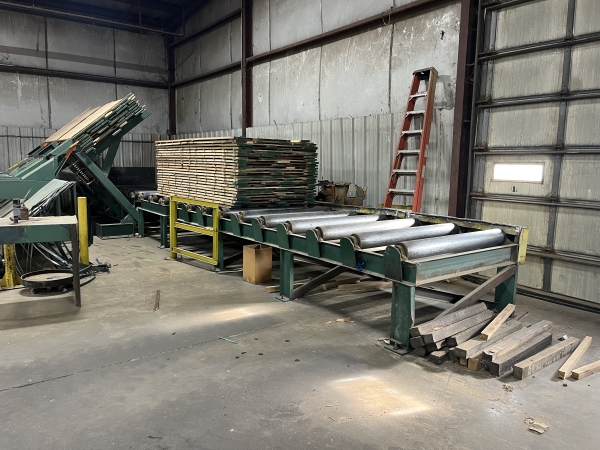

- Driven Roll case set-up to handle pack up to 60" wide and will handle 6-16' long packs

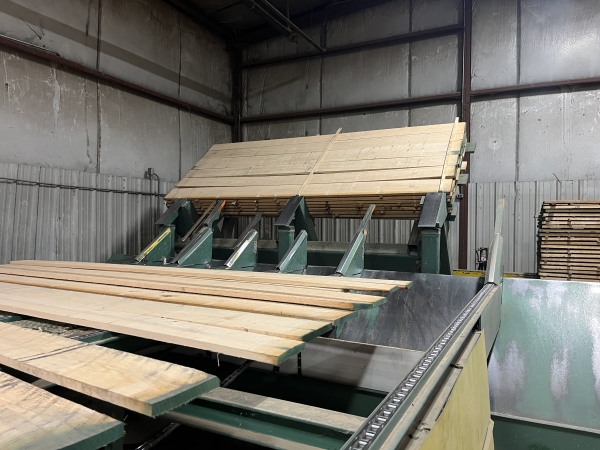

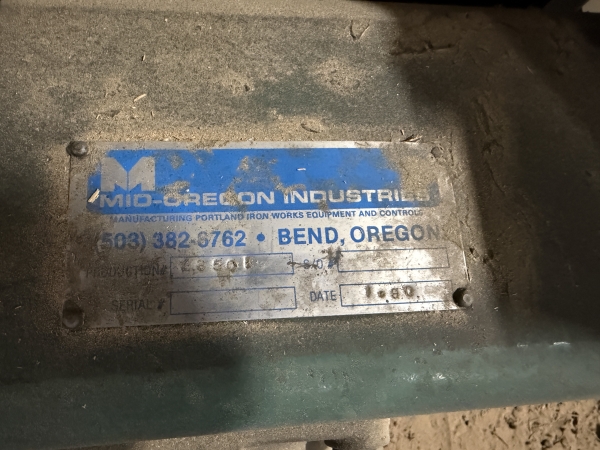

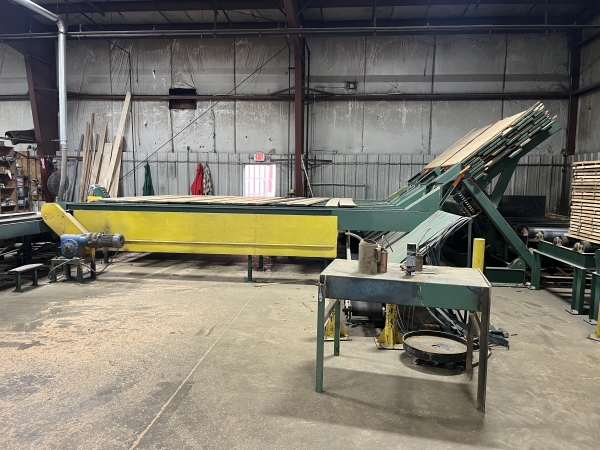

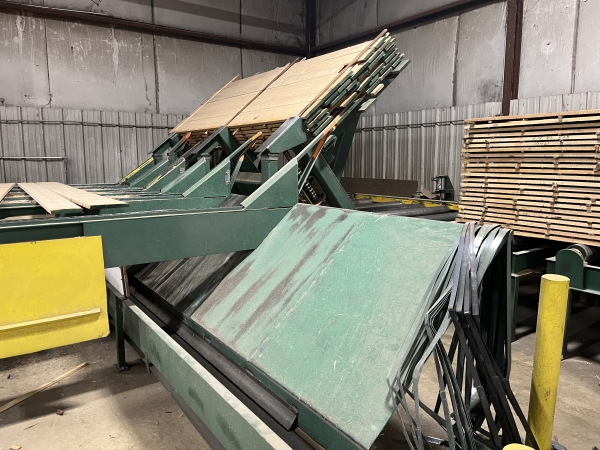

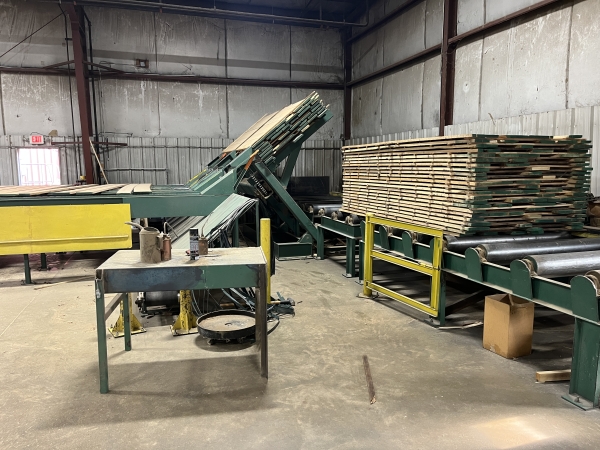

- 3 arm tilt hoist with Mid Oregon Hydraulic Power Pack

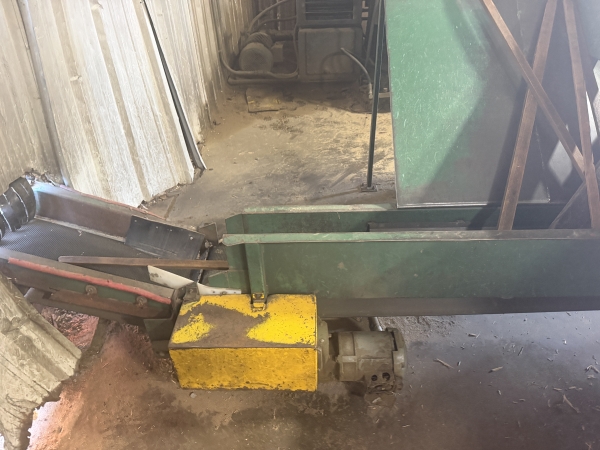

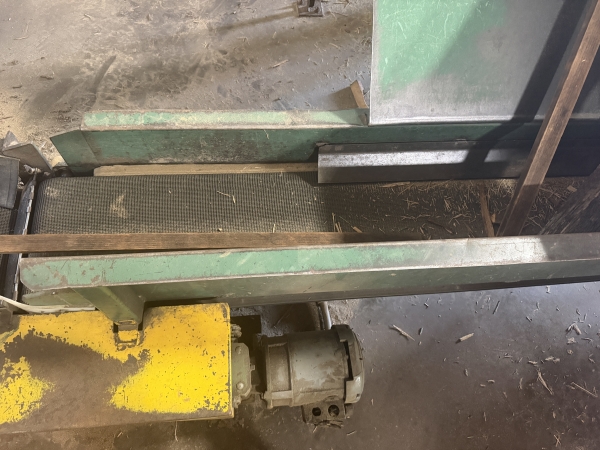

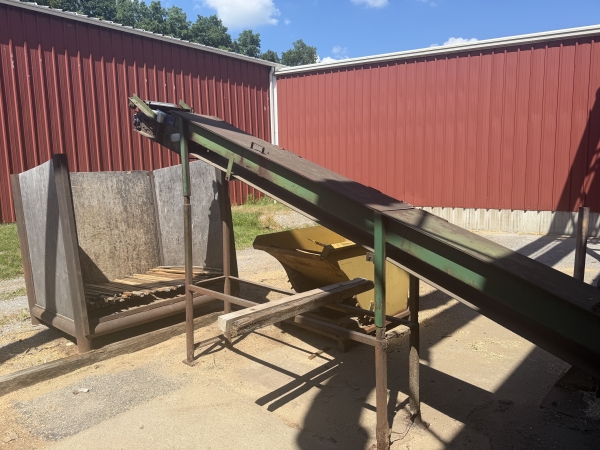

- Has a sticker belt conveyor measuring approximately 12" x 20' long - followed by an approximately 15' long incline conveyor

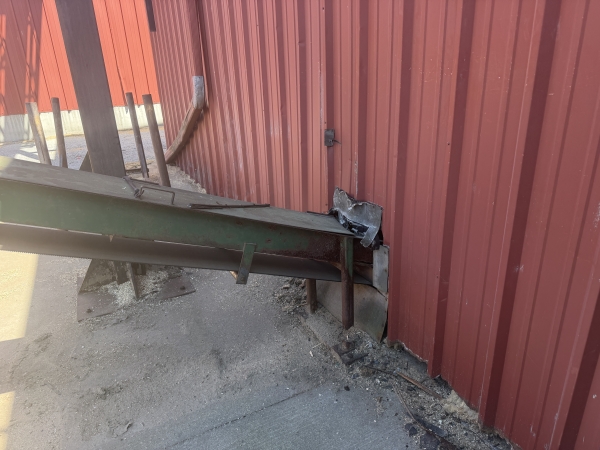

- Does not have a stick stacker - sticks fall into a bin at the out-feed

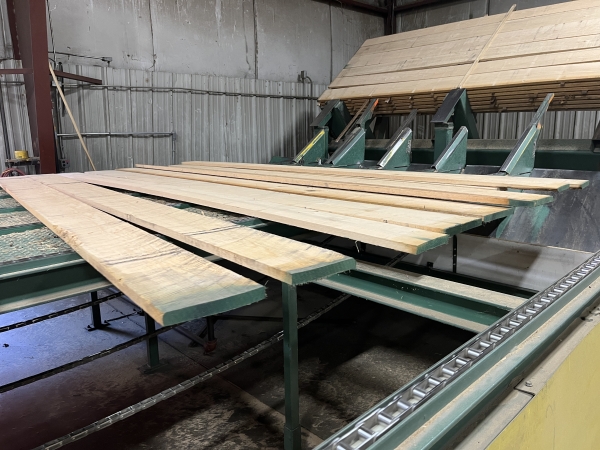

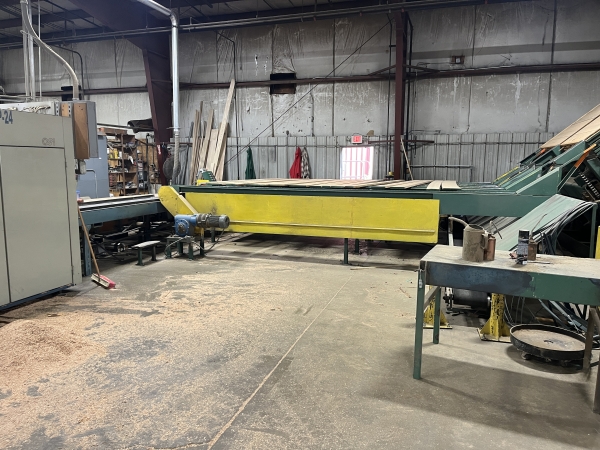

- 6 Stand flat top chain deck with chain spacing at 0-24"-48"-72"-96"-144"

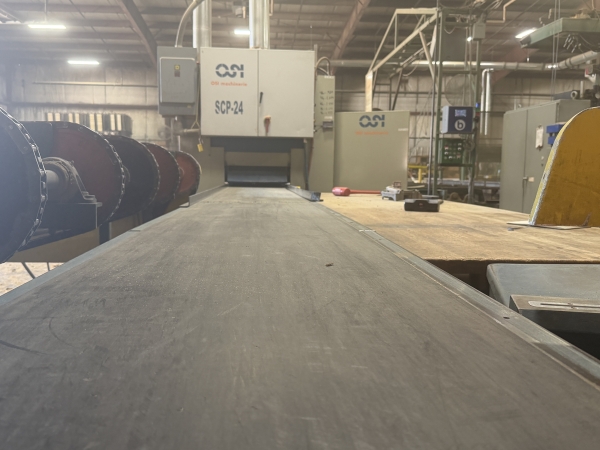

- 24" x 20' Belt conveyor feeding the planer

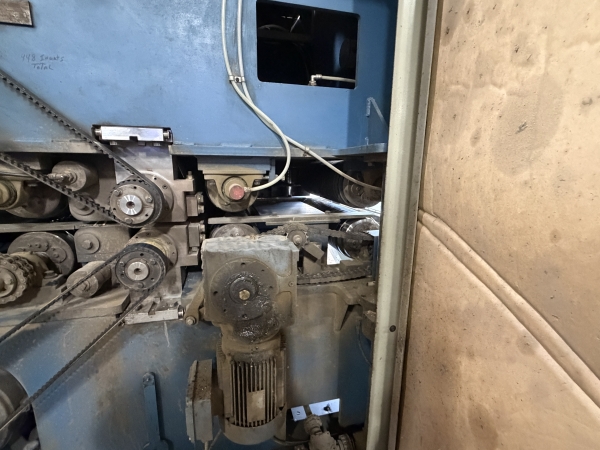

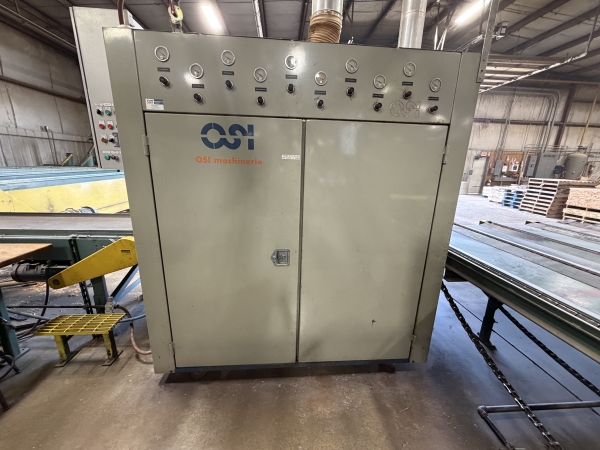

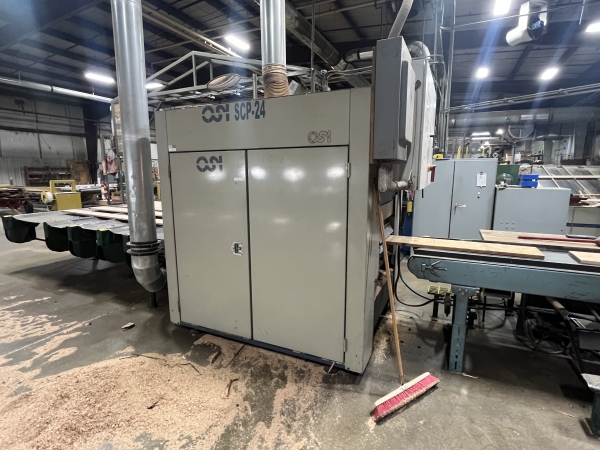

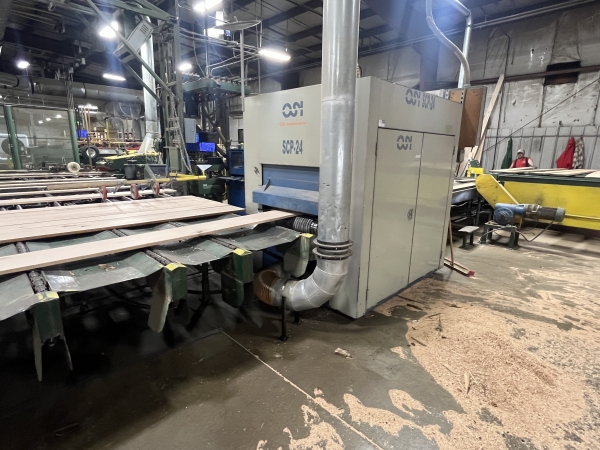

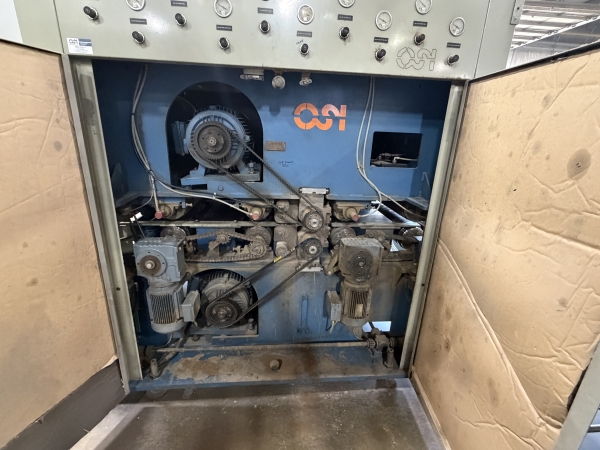

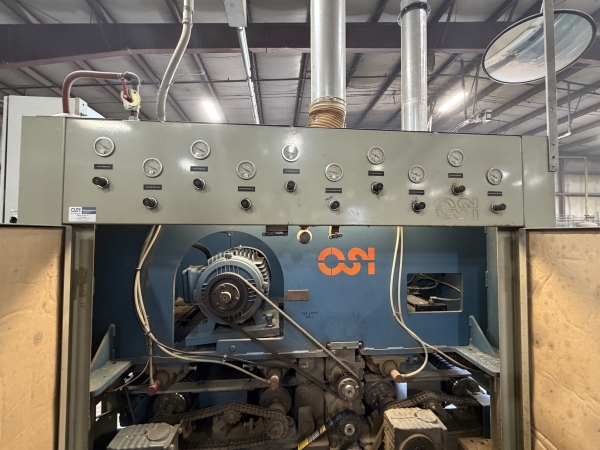

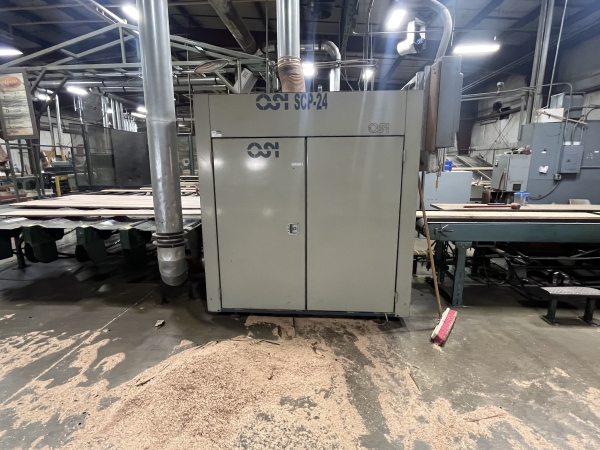

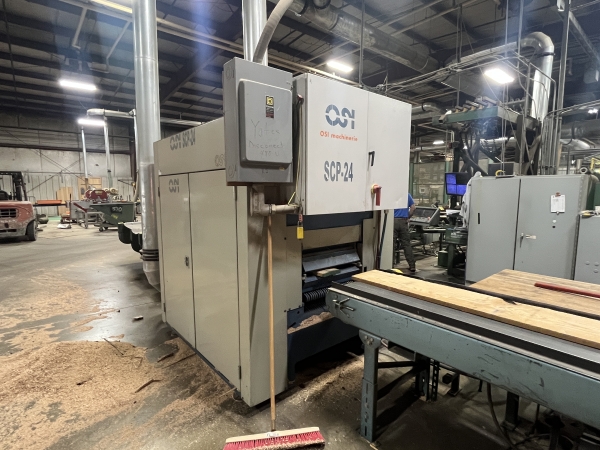

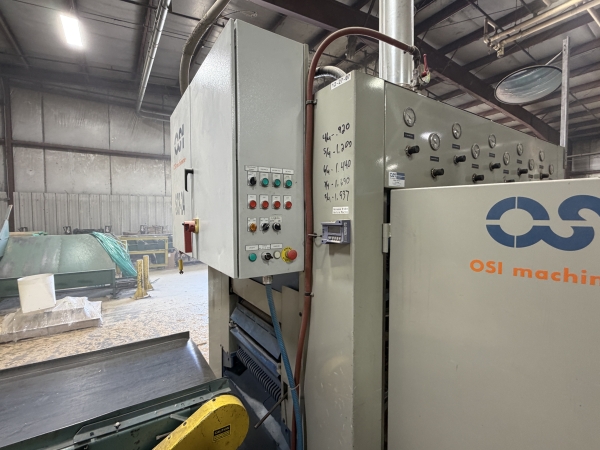

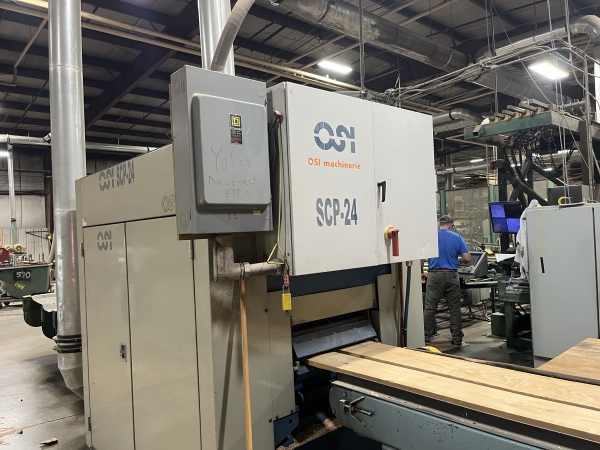

- OSI Self Centering Planer Width Capacity: 24"

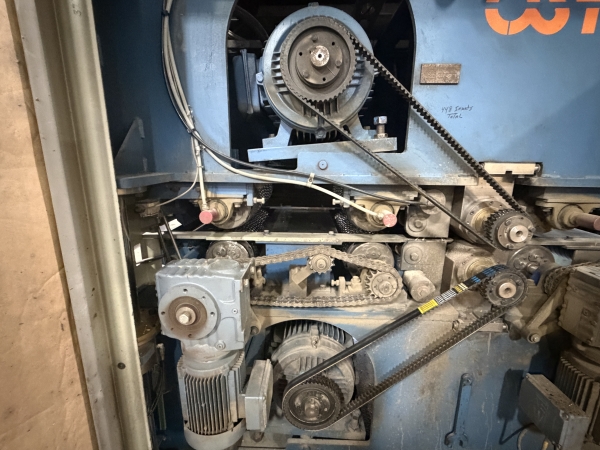

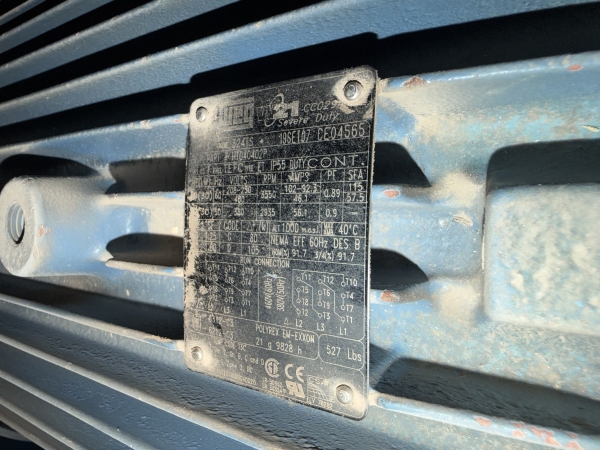

- Top Head Motor: 40 HP
- Bottom Head Motor: 40 HP
- Thickness Capacity from 1/2" - 5 1/2"
- Upgraded feed speed of 125FPM

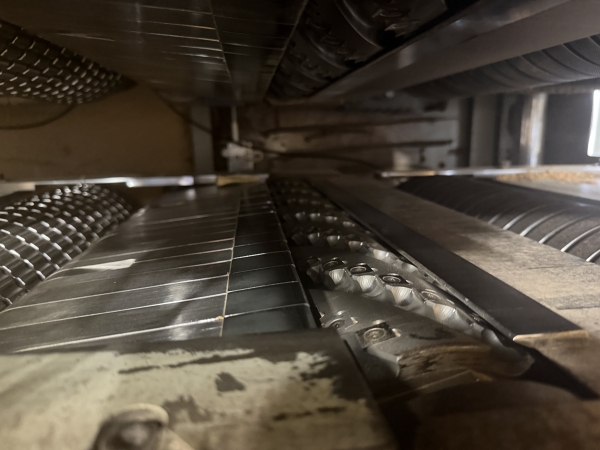

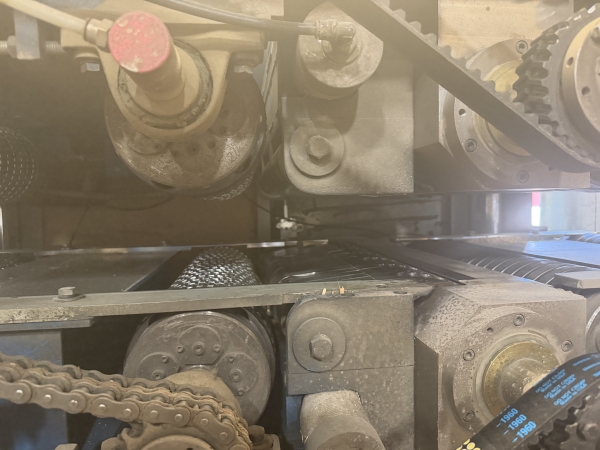

- Machine Currently has Direct-Opposing steel insert cutterheads installed which utilize 15mmx15mmx2.5mm inserts
- Includes a Spare set of aluminum insert cutterheads which were originally sold with the machine when new

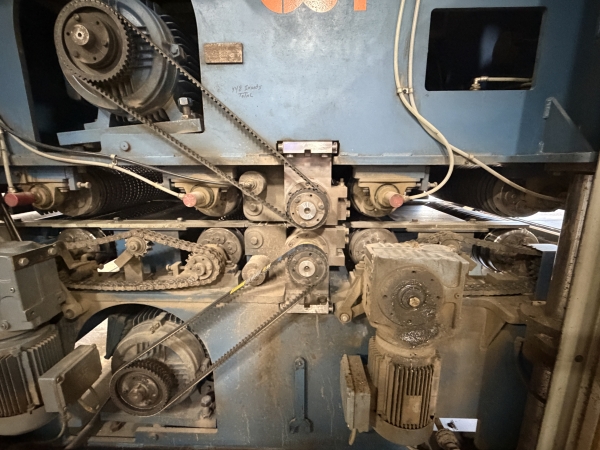

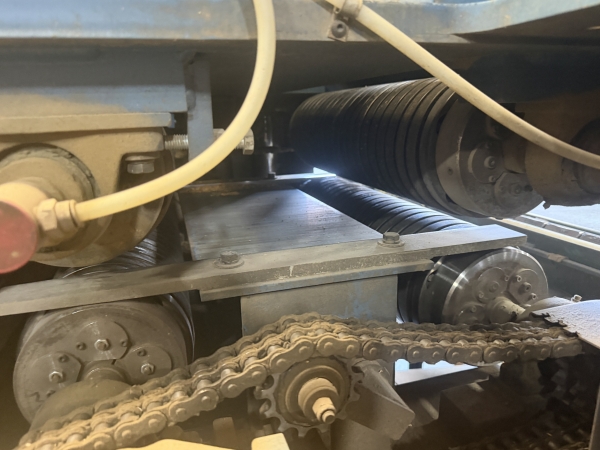

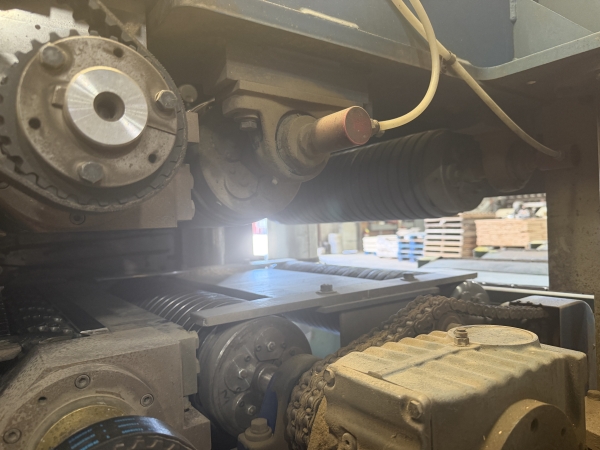

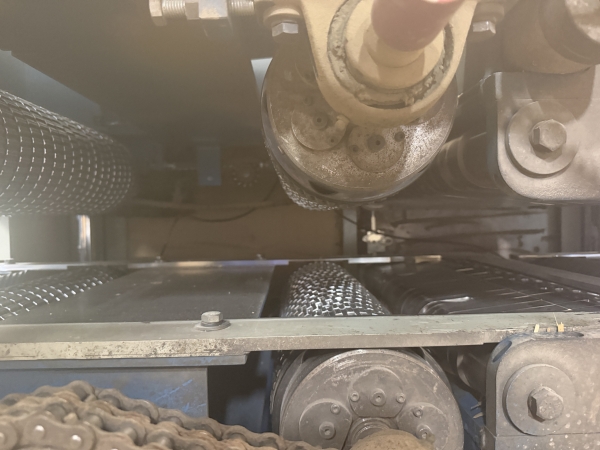

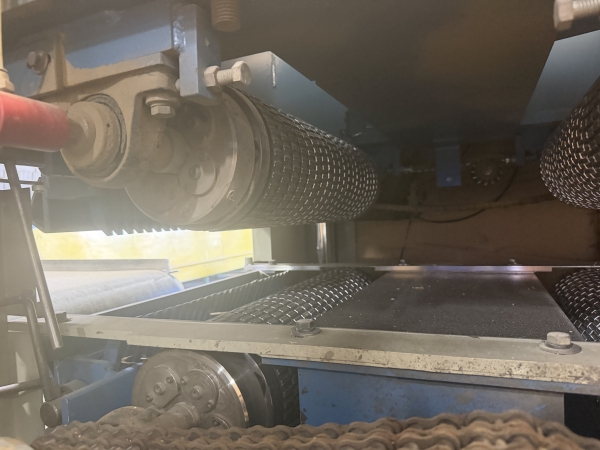

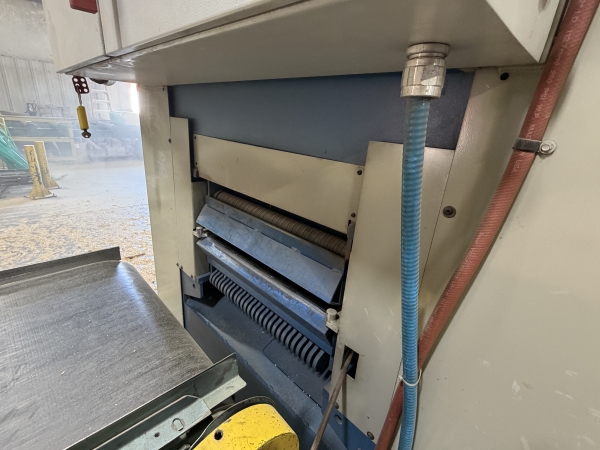

- Face-to-Face Segmented Feed Rolls Ensures Perfect Centering of Every Workpiece
- Segmented Pressure-Fingers follow the shape of each board, eliminating jams and splitting
- 24" Minimum Single Workpiece Length
- OSI Self Centering Planer was installed new in late December of 2007

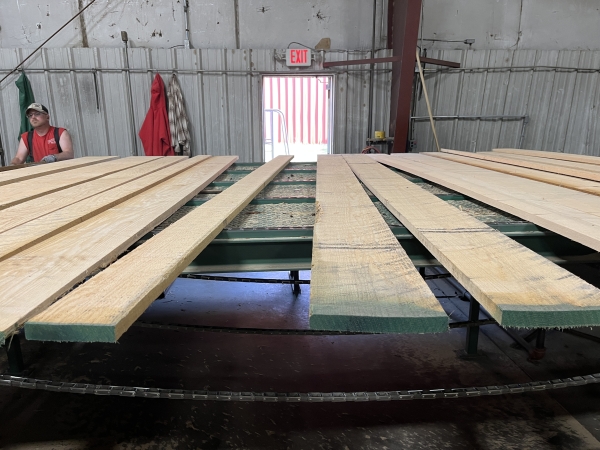

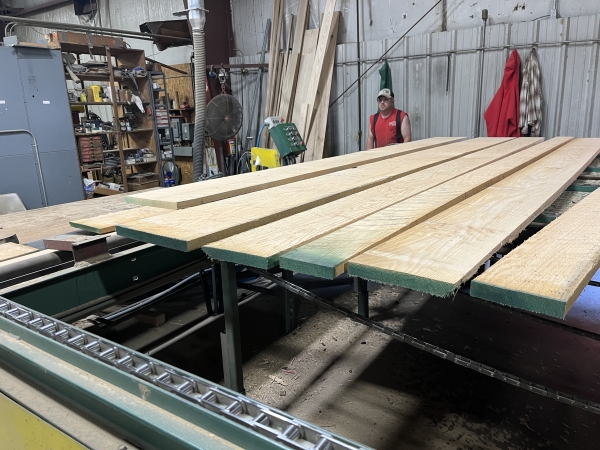

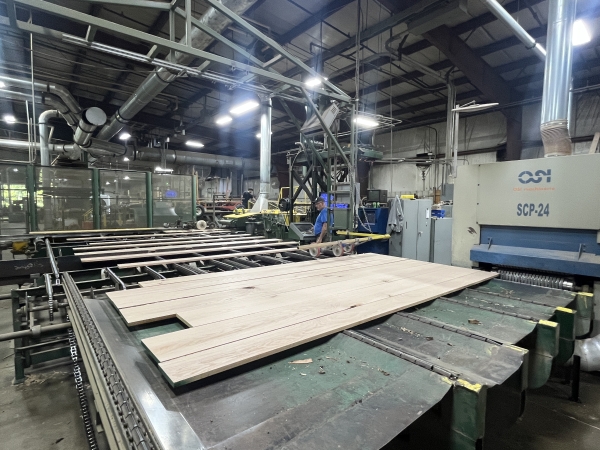

- 6 Stand Panned C550 Roof Top Chain Deck at the out-feed
- Chain Deck measures approximately 12' wide x 12' Deep
- Current owner purchased a new rough mill and the machines will be available in late December or early January
- Specifications are written to the best of our knowledge with some being sourced from literature, we encourage you to inspect the machine and verify
