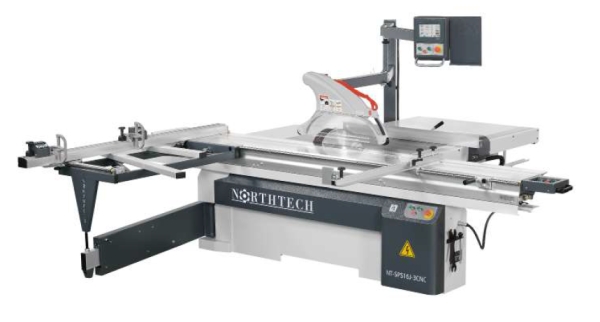

Northtech Model NT-SPS16J-3CNC Sliding Panel Saw

• Sliding Panel Saw with Programmable Servo Positioning
• Main motor: 10HP, 3PH 60HZ 230V or 460V
• 10 foot sliding table (126") table (8' and 12' available upon request)
• Saw blade diameter max. Ø400mm (16")
• Max. cutting height with blade at 90°: 125mm (5.0")
• Max. cutting height with blade at 45°: 88mm (3.5")
• Rectified cast iron fixed table dimension: 620x1125mm (24.5" x 44")
• Main blade speed: 3000 / 4000 / 5000 / 6000 rpm
• 12" saw blade included
• Includes (2) flip stops with Digital Readout
• Premium lineal rail dust hood positioning
• 12mm Dado capable with included wooden insert
• Main saw bore Ø25.4mm (DADO function spindle)
• Scoring saw blade: Ø120mm (4.7")
• Scoring motor power: 0.75KW (1HP)
• Scoring blade speed: 8000rpm
• Cutting width: 1300mm (52")
• Saw table extension: 400mm x 650mm (16" x 25")
• Manually positioned cross cut fence 0/45°
• Motorized positioning scoring saw height and kerf adjustment
• CNC servo positioned rip fence
• CNC servo positioned blade tilt
• CNC servo positioned blade height
• Overarm fl ex hose cradle
• Pusher bar storage on dust hood
• Includes (2) premium quick change dust guards for 0 and 45° cutting
• Safety bar and close proximity override for added safety
• (100) Blade height and blade tilt and rip fence program recall
• (1) Tool box
• Dust requirements: (1) 5" dust port requiring 681 CFM at point of extraction
• (1) 3" dust port requiring 245 CFM at point of extraction
• Net / Gross weight: 1,808lbs / 2205lbs + 413lbs / 545lbs + 128lbs x 166lbs
• Packing dimensions (LxWxH): 90" x 53" x 44" + 132" x 19" x 15" + 79" x 6" x 12"
