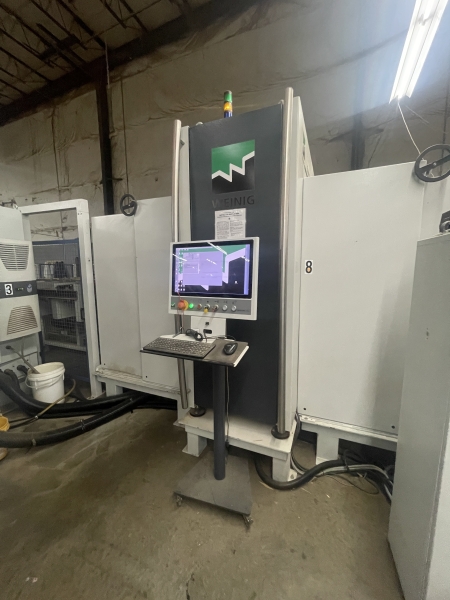

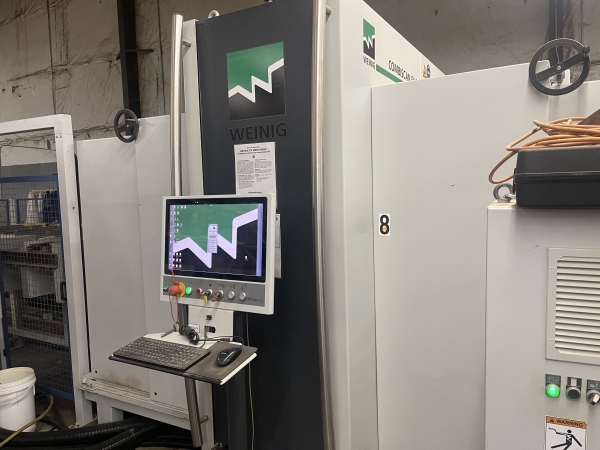

Weinig Model Combiscan C200X Scanner

• Weinig Model Combiscan C200X Scanner
• Max Timber Dimensions (Min/Max):
• Length: 4"/17" (1200mm/5200mm)
• Ingoing Width: 1.5"/6" (38mm/153mm)
• Ingoing Thickness: 1"/2" (25mm/51mm)
• Machine Specs:
• Passline Height: 36.22" (920mm)
• Able to process up to 20 boards of 3.5 m per minute

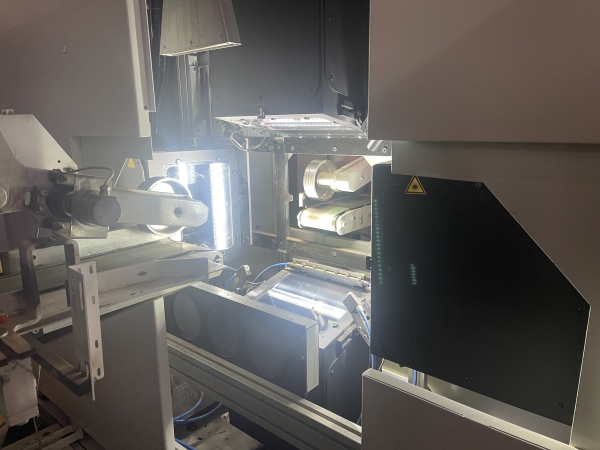

• 4 side detection with laser cameras
• 4 side detection with high-resolution color cameras
• 4 side detection with dot laser
• 4 side detection with line scatter
• 4 side detection with 3D lasers
• IP 54 Housing for cameras
• Angle cracks detection on top/bottom side
• X-Ray high voltage sensor for density defects
• Random width module

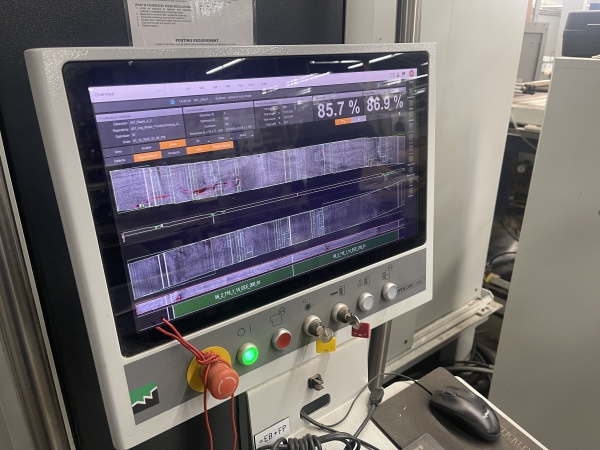

• Optimizing software
• WPP interface

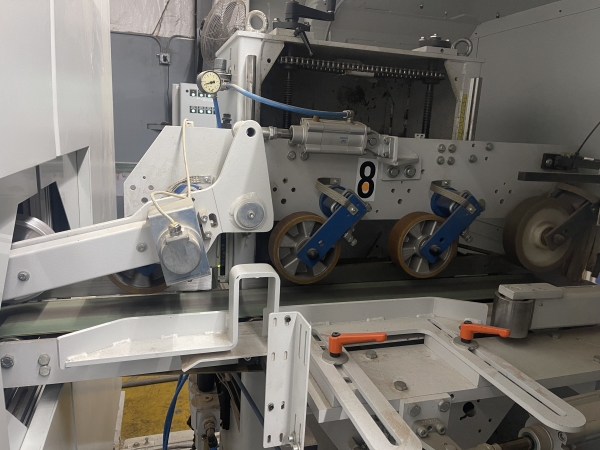

• Mechanical frame, easily adjustable for different cross sections
• 1 X-Ray camera
• 16 lasers
• 4 for 3D
• 4 for scatter
• 4 for dot
• 4 for ACM
• 4 LED Lighting devices
• Dust elimination by blowing device; filter for clean air (5 microns)

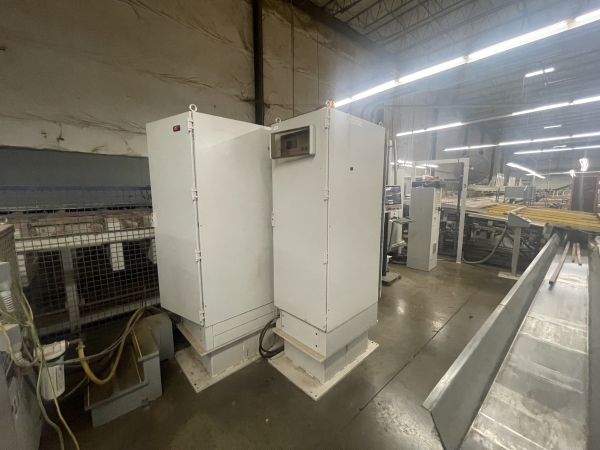

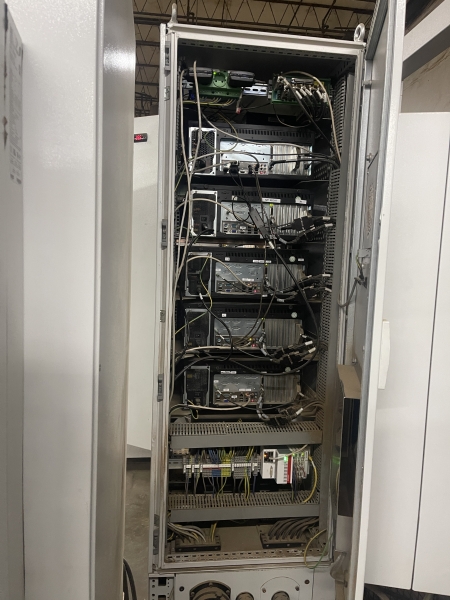

• Electric box
• Photocells

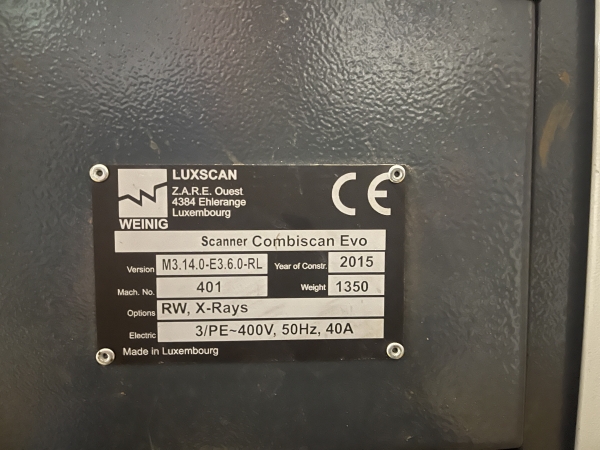

• 2015 Machine
