Weinig Powermat 1500 Moulder w/ Robotic Infeed, Outfeed, and Rondamat 1000 CNC Grinder

Machine Sold

Stock #471018

Used

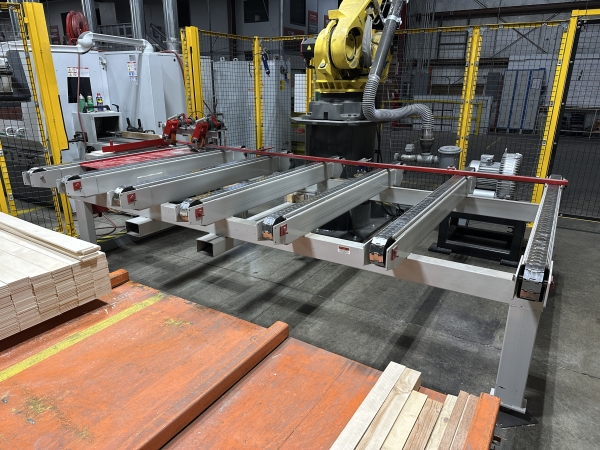

High Plains Automation LR500-12L Lateral Chain Moulder Feeder
Accommodates Material from 2’ to 16’ Long, 3/8” - 3-1/2” Thick, and From 3/4” - 12” Wide
Designed from Moulder Feed Speeds up to 360 ft/min.
Chain Deck Surface is 5’ Deep x 12’ Long
Eight (8) Arms of Stainless Steel Table-Top Chains running on UHMW Wear Strips
Inverter Drive Provides Power and Speed Control to Chains

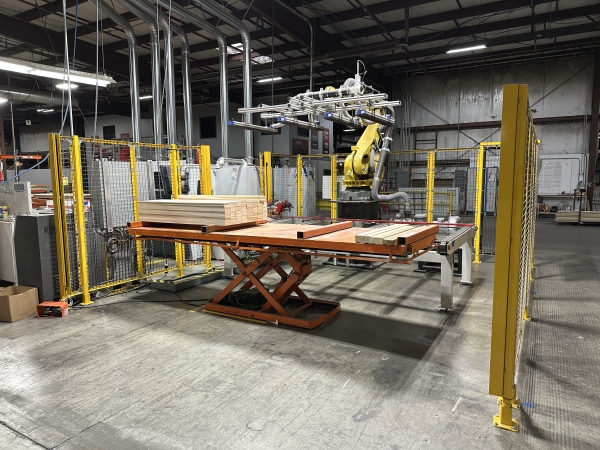

Fanuc Material Handling Robot
Produces Consistent Material Handling Rates up to 120 ft/min.
Robot Arm Equipped with Vacuum Cups to Move Layers of Material to Lateral Feeder

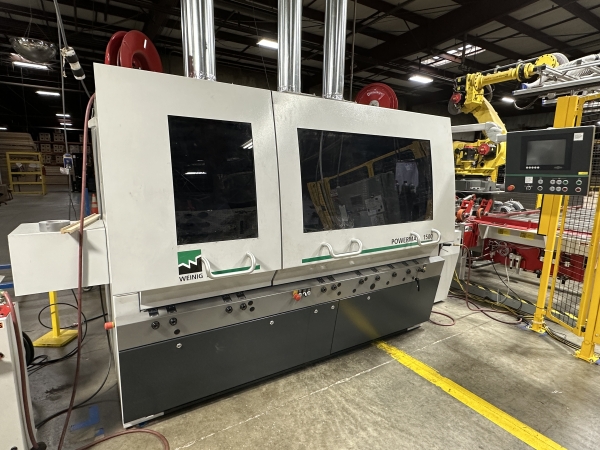

Weinig Model Powermat 1500 Six Head Moulder
Working Width 20 - 230 mm (3/4” to 9”)
Working Height 10 - 160 mm (.40” to 6.3”)
Head Configuration
- First Bottom 15HP with 1-13/16” Spindle, 8000 RPM
- Right Side 15HP with PowerLock Tool Holder, 4000 - 12000 rpm
- Left Side 15HP with PowerLock Tool Holder, 4000 - 12000 rpm
- First Top 30HP with PowerLock Tool Holder, 4000 - 12000 rpm
- Second Top 40HP with PowerLock Tool Holder, 4000 - 12000 rpm
- Second Bottom with PowerLock Tool Holder, 4000 - 12000 rpm
- Feed Speed Electronically Variable including brake 5 - 40 m/min (16 - 130 FPM)

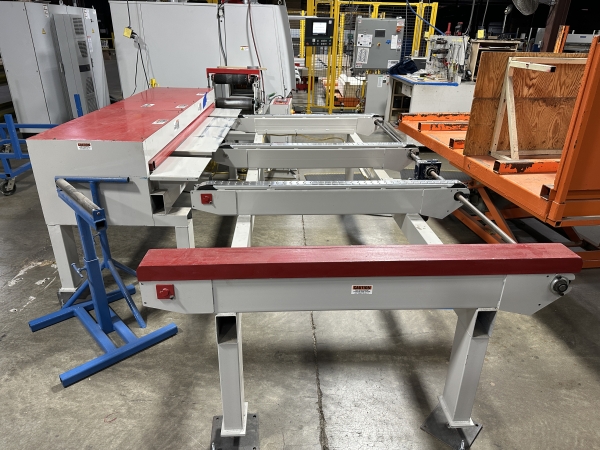

High Plains Automation Model MT-8L-X5 Moulder Outfeed System
The MT is Designed to Right-Angle Transfer Mouldings tothe Left as they Exit Moulder
The MT will Handle Pieces up to 12” Wide and 3’ to 12’ Long
Process up to 45 Pieces Per Minute

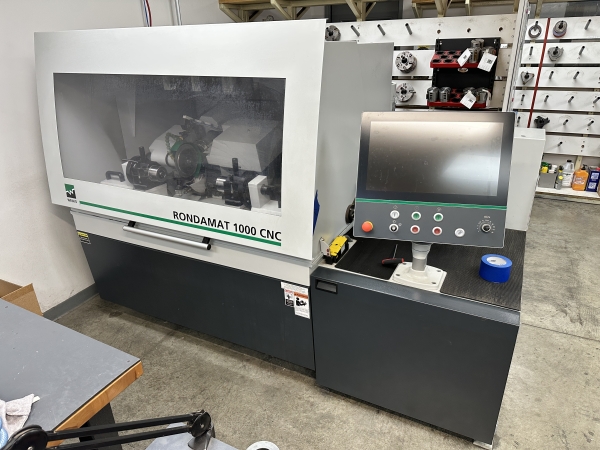

Weinig Model R1000 CNC Profile Grinder The Rondamat 1000 CNC Grinds Tools Fully Automatically on a CAD Drawing Supplied by Moulder Master Software
Maximum Tool Weight 50 kg (110 lbs)
Maximum Tool Width 360mm (14”)
Maximum Tool Cutting Circle 300mm (12”)
Minimum Tool Cutting Circle 90mm (3.5”)

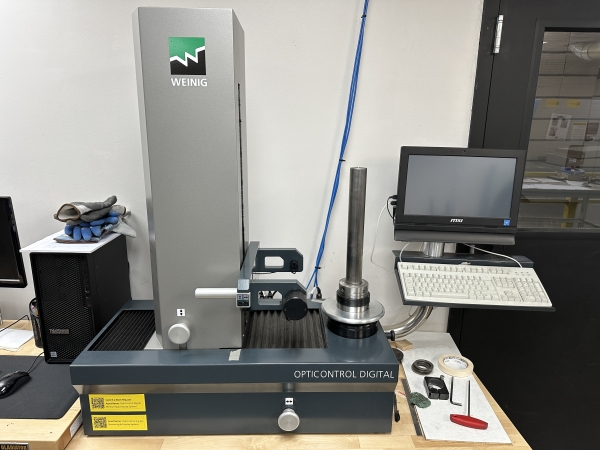

Weinig OptiControl Digital Measuring and Display System
PowerLock
Tool Diameter 0 - 400mm (15.75”)
Tool Length 0 - 460mm (18.10”)
Maximum Measuring Height 460mm (18.10”)
Weinig Machines New in 2022
