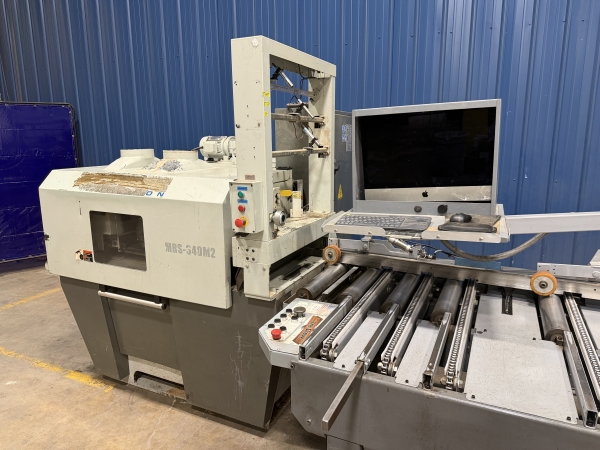

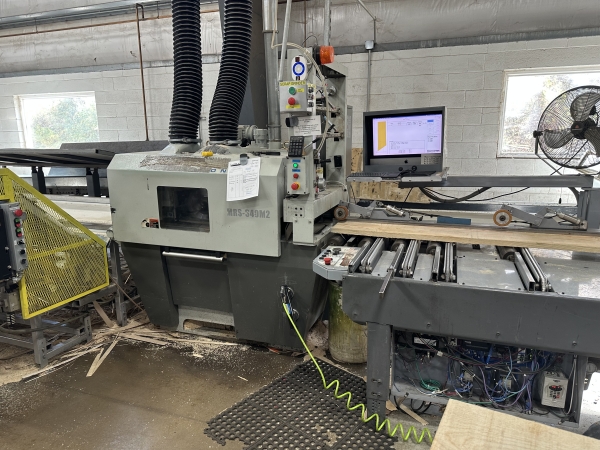

Cameron Automation MRS-340M2 Gang Rip Saw with Skew Infeed
Machine Available
Stock #201640

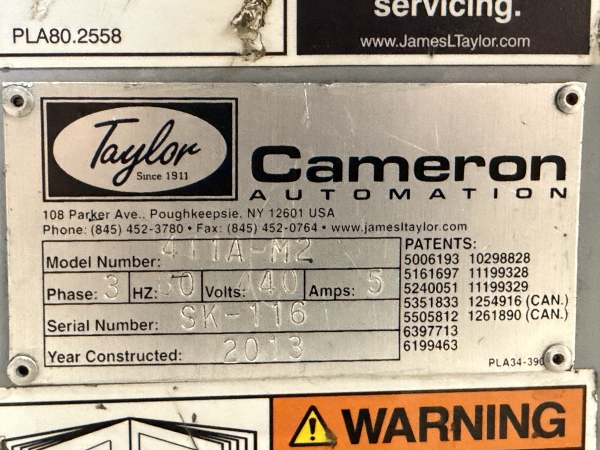

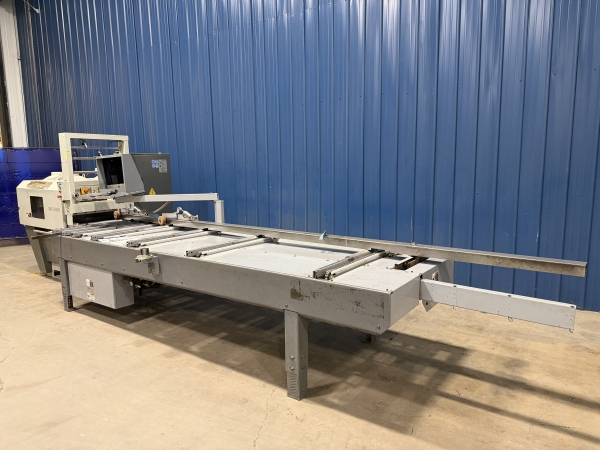

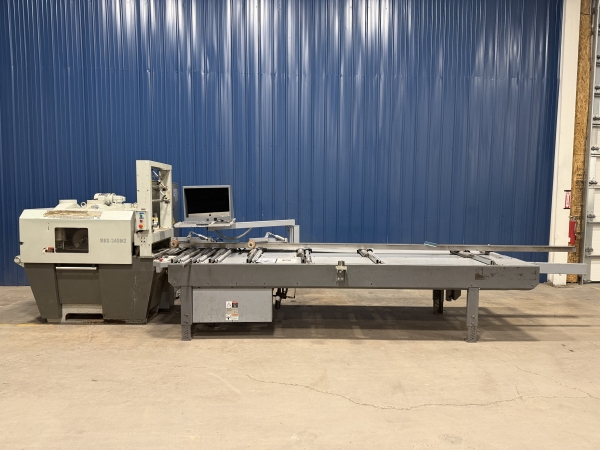

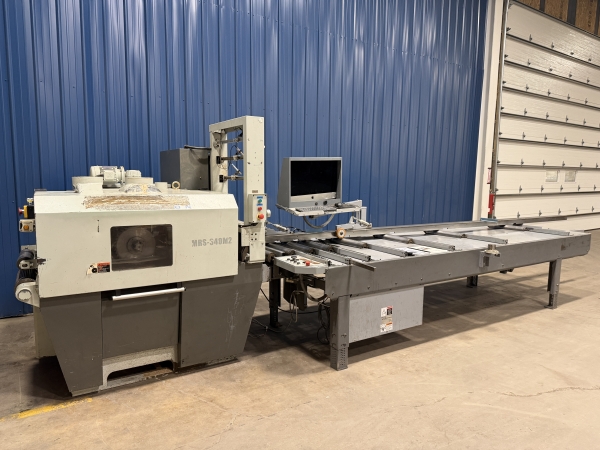

Used- Cameron Automation Model # MRS-340M2 Gang Rip Saw w/ Model #411A-16I-12S-16L-220 Skew Infeed Fence

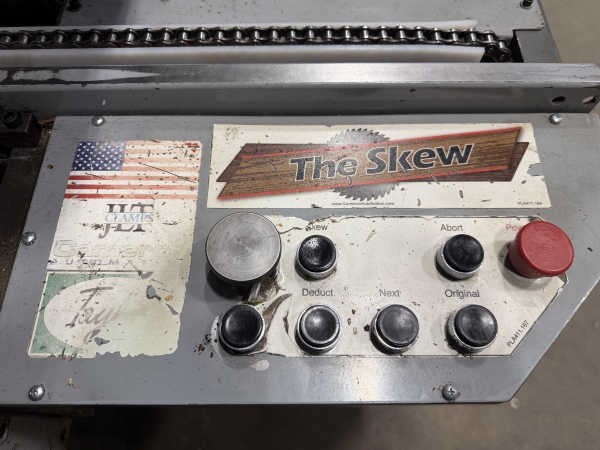

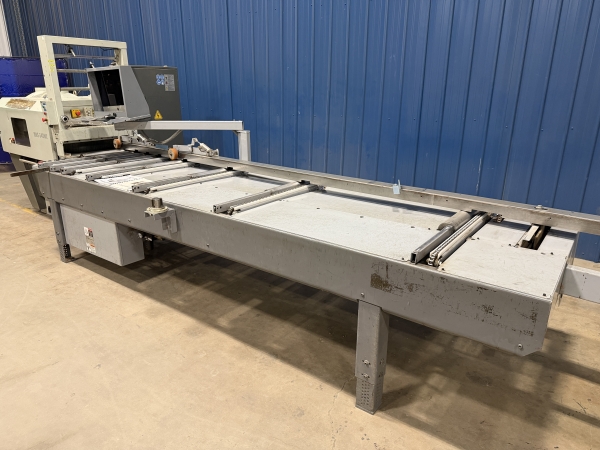

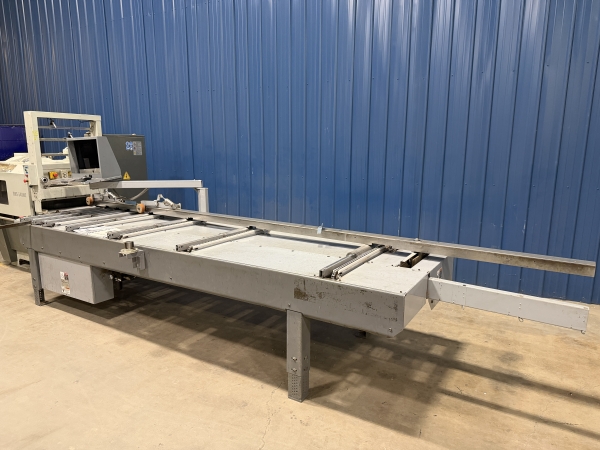

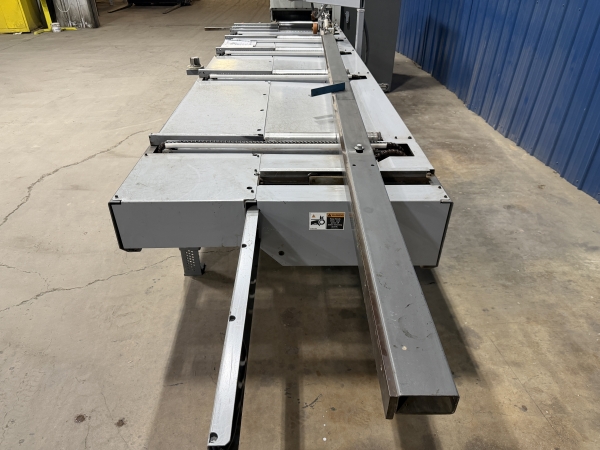

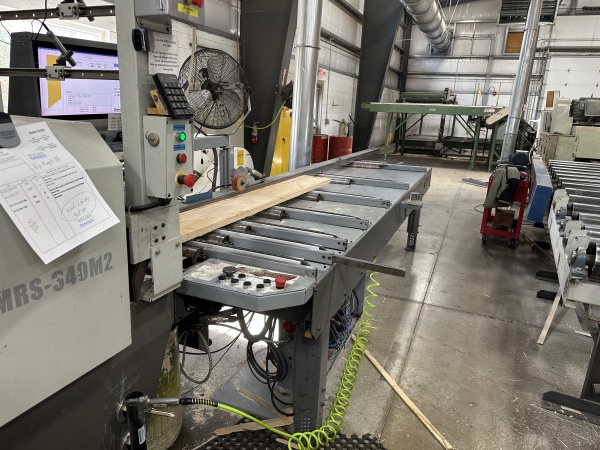

- The Skew Rip Optimizing System with Skewable Fence.
- 16 Laser Width Scanners at 1' Intervals to profile each board
- (2) Drive Press Rollers

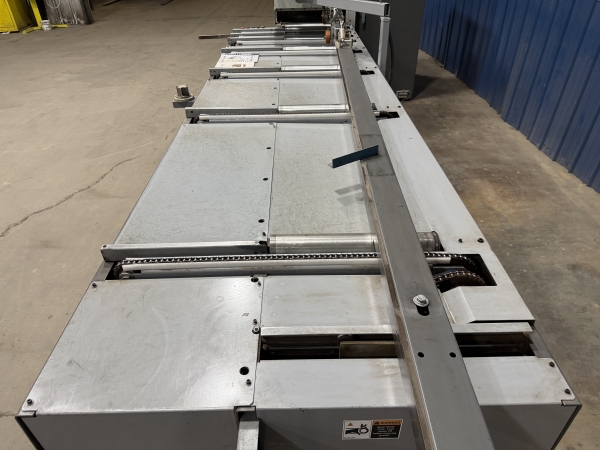

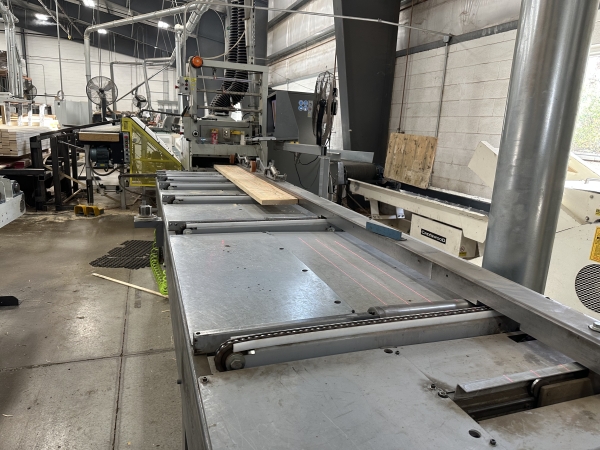

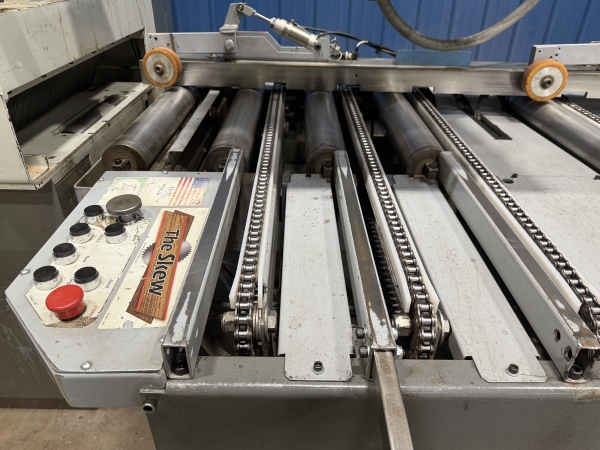

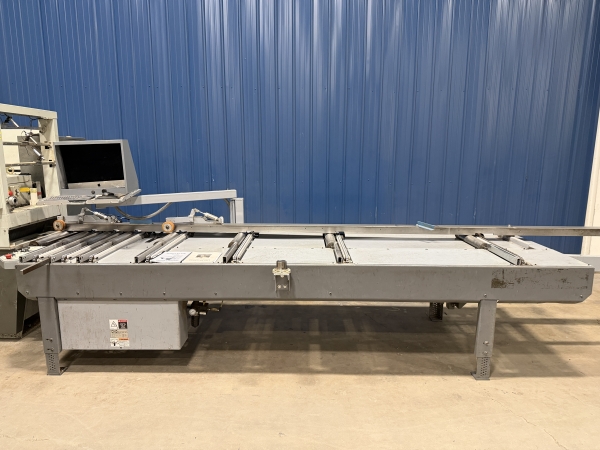

- Infeed Cross Chains for feeding boards

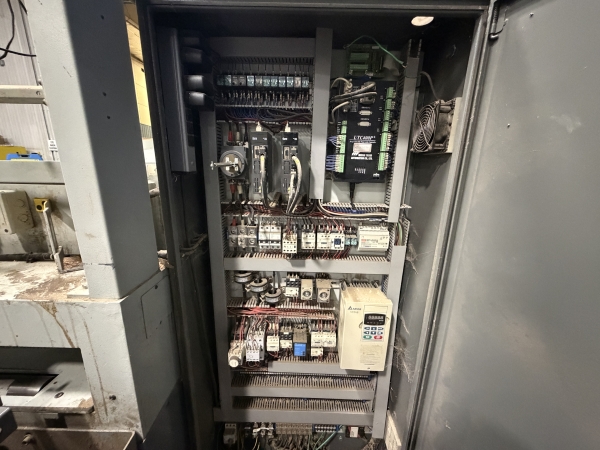

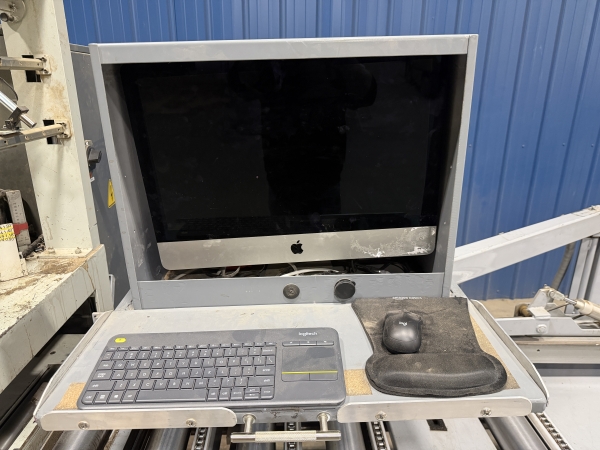

- Computer, Frame, & hardware to feed 12" Gang Rip Saw
- Machine to handle material from 4' to 16' Long
- Kit for Skew to Communicate to Moving Blade Saw

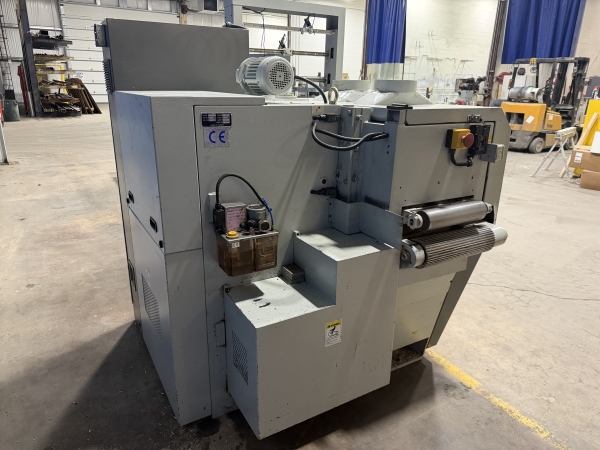

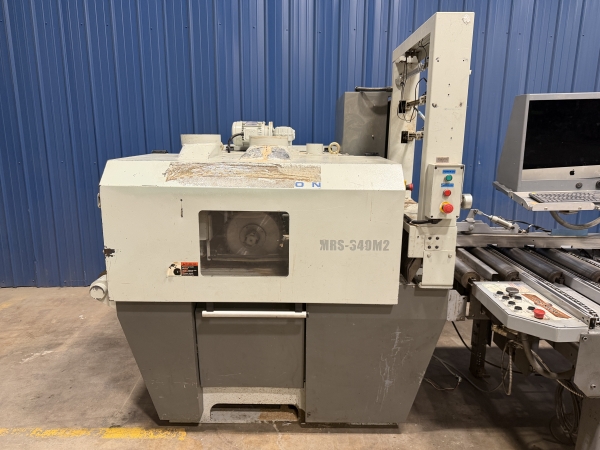

- MRS-340M2 Gang Rip Saw Specifications
- 12" Wide Arbor

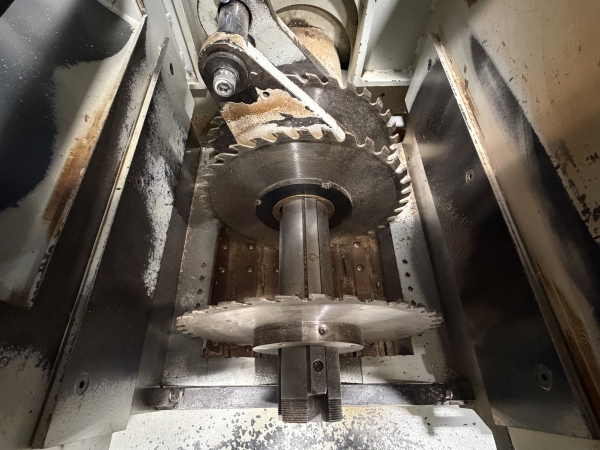

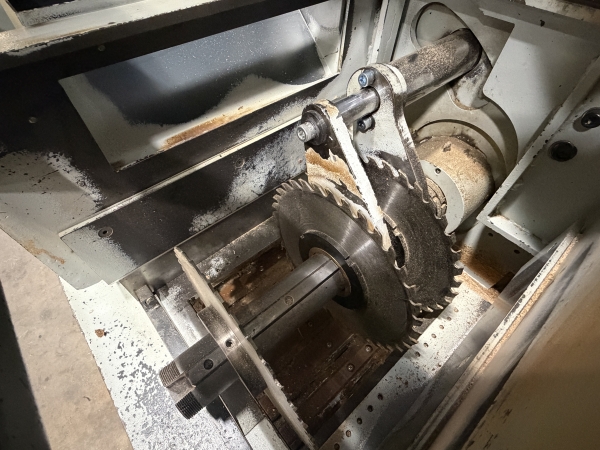

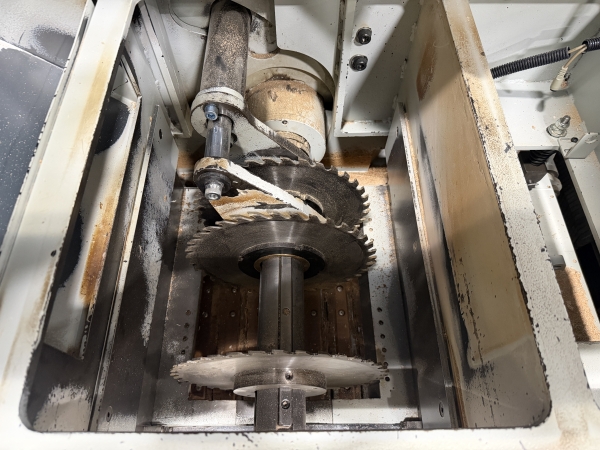

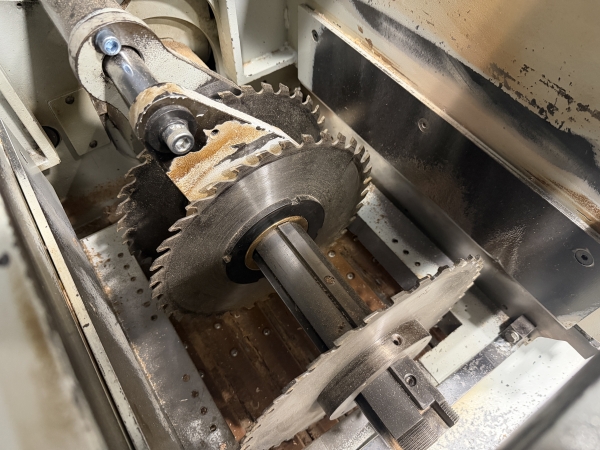

- (2) Servo Controlled Movable Blades
- (2) Fixed Blades
- Feed Speed 26-130 ft/min (8 - 40 m/min)

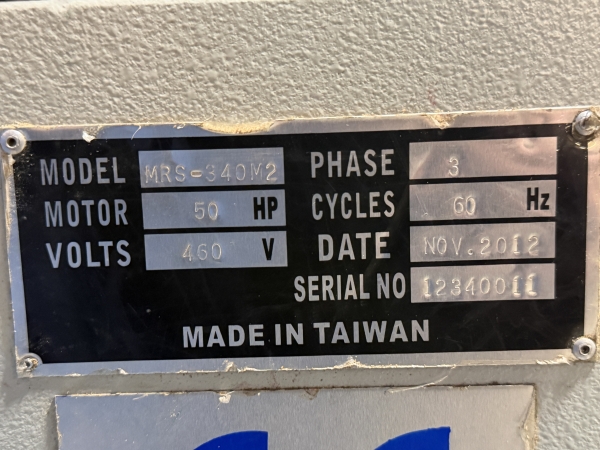

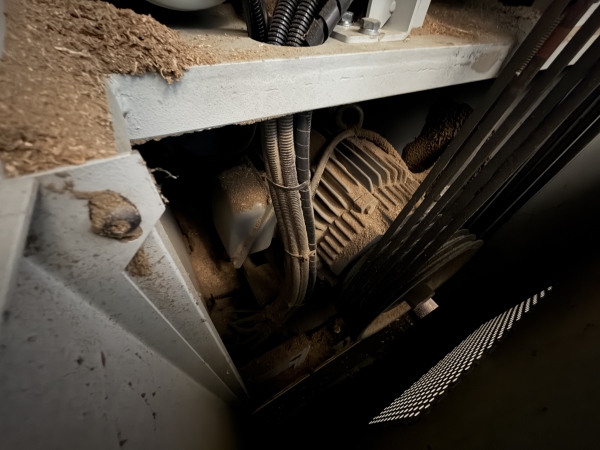

- Arbor Motor: 50 Hp
- Feed Motor: 3 Hp
- Three (3) sets of anti-kickback fingers
- (4) individual Pneumatic pressure rolls

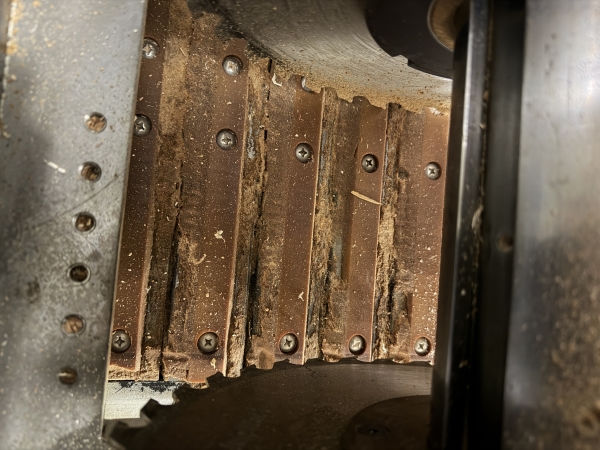

- Steel dip chain construction with urethane inserts
- Powered out-feed roller

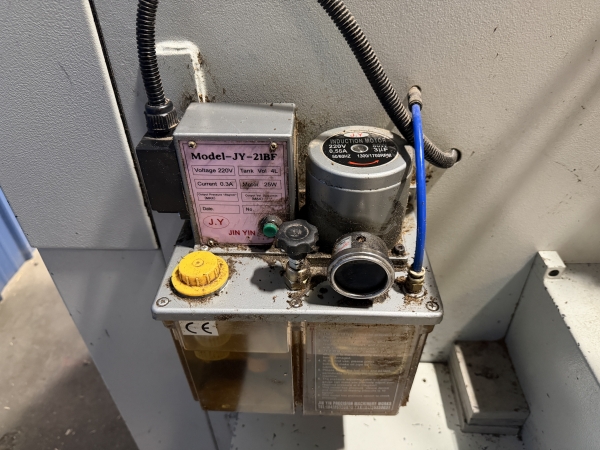

- Digital controlled lubricator for feed chain.
- Amp meter for monitoring arbor motor running amperage

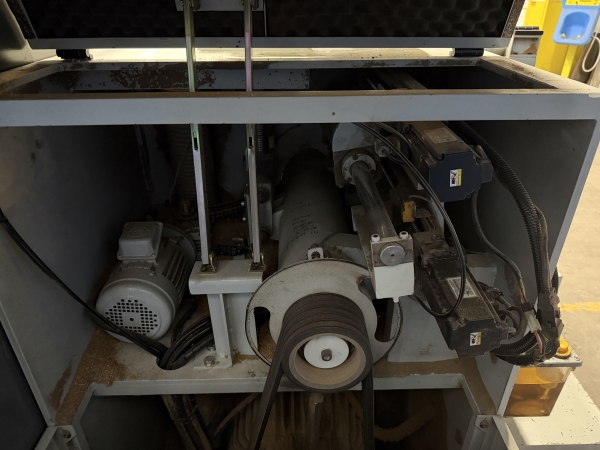

- Easily accessed v-belt driving saw arbor for reduced vibration and higher tolerances
- Easy access to spindle and blades for maintenance and tooling changes
