Northtech Model NT-PAS4852-8-2TBL Pallet Assembly System
Machine Available
Stock #4443206N

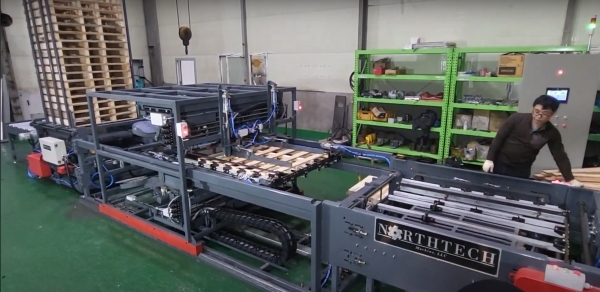

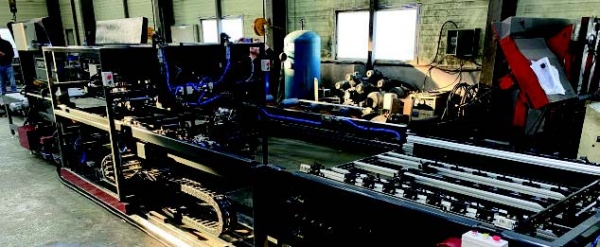

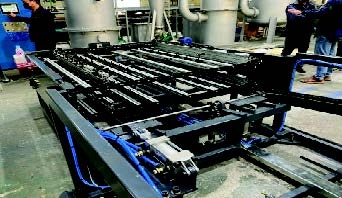

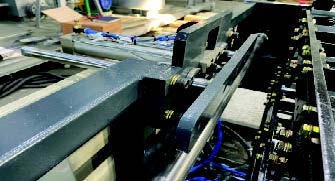

New- Pallet Assembly System with a two table quick loading carriage system, independently traveling top & bottom guns, stacker and (2) full stack discharge conveyor
- Over 800 pallets/8hr shift with 2 workers
- 30 minute changeovers when changing jigs, or under 5 minutes when changing tables

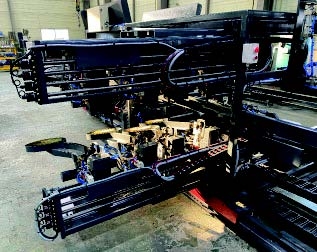

- Top and bottom nail gun carriages pull out the side for easy access Pallet working size: (W) 32" - 48", (L) 32" - 52", (H) 3" - 6"
- 3 and 4 runner capable
- Each nail gun automatically adjusts for up to 3/8” deck board variation
- 9 second nailing cycle time/pallet with overlapping build time means operators are not waiting during the nailing cycle

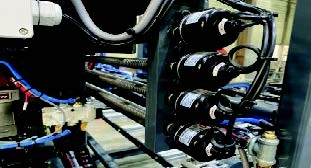

- (4) Top and (4) Bottom CN70 MAX nail guns (included)

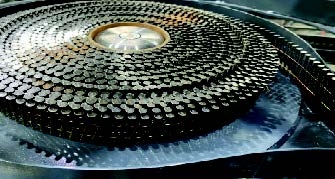

- Usable nail size (Ø x L): 2.3mm-2.8mm (13ga-11ga) x 45mm-70mm (1.8"-2.7”) 24,000 coil nail capacity Infinite deckboard and runner placement

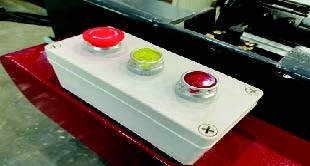

- Single operational control station
- 20 pallet maximum stack height (2,200lb)
- (5) Emergency stop buttons for operator safety
- Standard Northtech 1 year parts warranty
- Customer is responsible for site ready location with all required utility connections and permits.
- Customer specific nail guns can be used (additional costs may apply)
- Electric: 208V/230V/460V 3PH 60HZ (customers choice)
- Air pressure: 8-10MPA 1.5" Ø airline) @ 90 PSI, 500 CFM, 20HP compressor recommended
- Machine size (LxWxH): 374" x 79" x 59", estimated 8,000lbs total weight
- Estimated 4-5 month lead time from time of order
