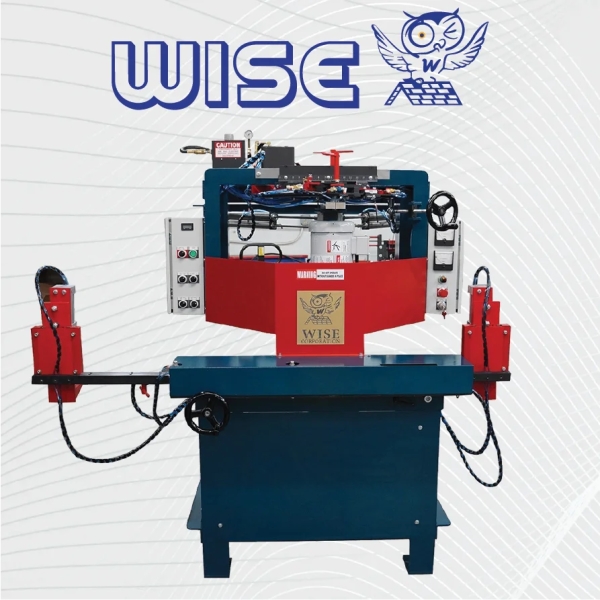

Wise Model 5200 Automatic Stair Router

• 5200 Automatic Stair Router
• The WISE 5200 Automatic Stair Router is a heavy duty, labor saving work center designed to simultaneously route both stringers with ease and efficiency. The continuous automatic feed and automatic shut off eliminate the need for high skilled labor, while fast and simple tread and riser settings produce error free operations for time tested and field proven stair building
  Key Features
• Fast simple tread, rise and run settings
• Built in Jump Dado Function
• Heavy Duty Tyler Spindles
• Enclosed Valve Bank
• Heavy Duty Clamp and Feed System
  Specifications
• Stringers up to 2" Thick x up to 12" Wide x Unlimited Length
• Tread: up to 1-1/2" Thick x 8 to 11" Wide
• Riser: 3/4" Thick x 5-3/4" to 9" High
  Air Requirements
• 3 cfm at 110 psi – 3/4" Feed Line
  Electrical Requirements
• Standard: 230v, 3 Phase, 12 Amp, 60 HZ
• Optional: 460v, 3 Phase, 5.4 Amps, 60 HZ
  Dimensions
• 5' Long x 3' Wide x 5' Tall
  Weight
• 1800 lbs
  Optional: Check out the Wise 5210 Stringer Assembly Table
