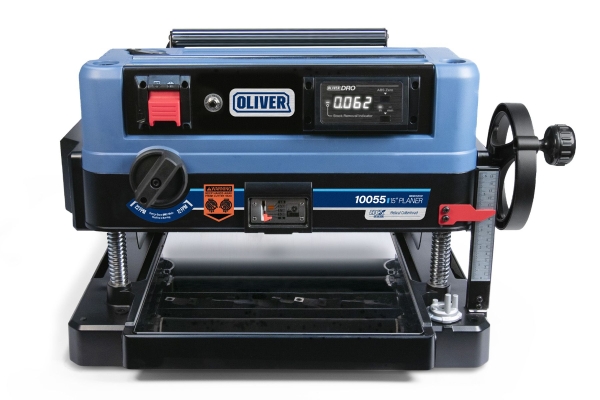

Oliver Model 10055 15" Benchtop HCX Helical Cutterhead
Machine Available
Stock #52168N
New- CutterHead Oliver HCX Helical
- Ph 1Ph
- Stock Number 10055.201
- Maximum Stock Width 15"
- Maximum Depth of Cut Material under 6.5” width 1/8"
- Material over 6.5” width 3/64"
- Maximum Stock Thickness 6"
- Minimum Stock Thickness 1/8"
- Minimum Stock Length 8"
- Dust Port Diameter 4" (reversible for left or right exit)
- Minimum CFM Required 600cfm
- Feed Speeds 12 FPM or 20 FPM
- Table Size 15" x 23"
- Table Size w/Extension Wings 15" x 48"
- Cutterhead Speed 5,600 rpm
- Number of Knives (helical) 40
- Footprint 28" x 23"
- Footprint - with Table 28" x 48"
- Motor 1Ph 2.5HP - 230V, 1Ph, 12A (NEMA 6-15 plug style, 7ft cord)
- Overall Dimensions 28" W x 23" D x 16" H (with extensions folded)
- 29" W x 27" D x 20" H (shipping crate)
- Net Weight 158.7lbs
- Gross Weight 172lbs
