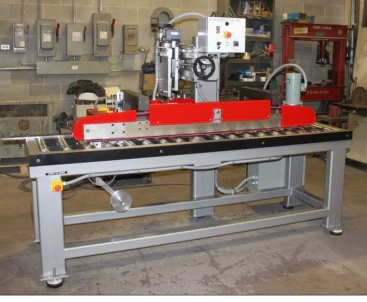

Star V Machinery Model JuniorStar-SP Semi-Automatic Single V-Grooving Machine
Machine Available
Stock #102300N
New- Overview
Our entry level Continuous Duty Star V Groover model, the JuniorStar-SP is designed to enable the smaller solid surface fabricator to profit from the V grooving method and remain on budget.
The JuniorStar-SP is designed to v-groove various materials such as composite, PVC, solid surfaces, veneers, laminates, phenolics, solid wood and more.
Creating a V-fold edge, instead of building up the front edge, or a cove back splash profile, the v-groove is being applied from above, simultaneously taping from below, with the workpiece moving thought the machine automatically. Both linear and crosscuts up to 15” away from the fixed fence are possible. (Set-up controls are manual)
Features of JuniorStar-SP - Narrowest Board: V Groove Center from Fence + 3.5”
- Widest/Longest Board: Unlimited
- Shortest Board: 18”
- Thickness Capacity: 1/4” to 1-13/16”
- Max. Cut Distance from Fence: 10”
- Spindle Motor (1): 10 HP, 3 Ph, 3,600 RPM
- Cutter Spindle: 30mm x 72mm, with clamping 8mm keyway
- Cutter Max. Diameter: 9-1/4”
- Cutter Depth Adjustment: Hand wheel on linear bearings and rails, ACME nut and rod, position via digital indicator
- Cutter Side Movement: Hand Wheel on linear bearings and rails, ball screw and nut, positioning via ProScale digital readout
- Tape Appicator (1): Manual positioning, automatic application
- Roll Bed: Stainless steel rollers
- Reference Rolls: Solid aluminum on cutting area
- Material Feed: Double belt with variable DC motor, 0 to 50 FPM
- Both linear as well as cross cuts up to 15” away from the fixed fence are possible
- Construction: Tubular welded frame
-
Machine Dimensions (LxWxH): 108” x 40” x 72”
Service Connection Requirements - Voltage: 230V 3Ph
- Air: 60 PSI
- Dust Port: 3” requiring 197 CFM
- Warranty
- 2 Year Warranty
- Star V Machinery Customer Satisfaction Guarantee
