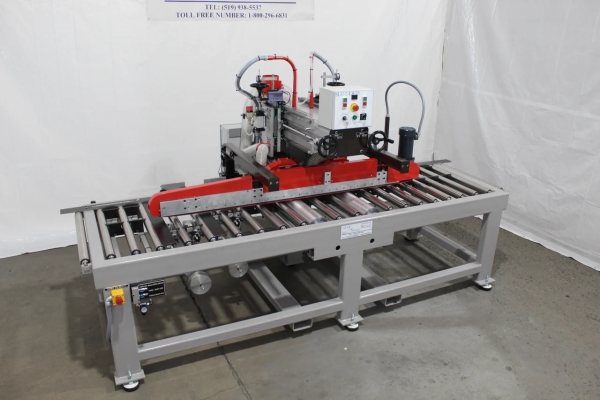

Star V Machinery Model SLG-2-LB Semi-Automatic Double V-Grooving Machine
Machine Available
Stock #102200N
New- Overview
A must for any solid surface fabricator. With two cutting stations controlled via pneumatic controls with a solenoid valve, two tape stations, and frame customizability. The SLG-2-LB can be ordered as a reverse feed machine to accommodate workflow in any shop.
Creating a V-fold edge, instead of building up the front edge, or a cove back splash profile, the v-groove is being applied from above, simultaneously taping from below, with the workpiece moving thought the machine automatically. Both linear and crosscuts up to 15” away from the fixed fence are possible. (Set-up controls are manual)
Features of SLG 1-LB - Narrowest Board: V Groove Center from Fence + 3.5”
- Widest / Longest Board: Unlimited
- Shortest Board: 20”
- Thickness Capacity: 1/4” to 1-13/16”
- Max. Cut Distance from Fence: 15” standard, options available 25”, 30”, 36”, and 40” upon request
- Spindle Motors (2): 10 HP, 3 Ph, 3,600 RPM
- Cutter Spindle: 30mm x 72mm, with clamping 8mm keyway
- Cutter Max. Diameter: 9-1/4”
- Cutter Depth Adjustment: Hand wheel on linear bearings and rails, ACME nut and rod, position on digital indicator
- Cutter Side Movement: Hand Wheel on linear bearings and rails, ball screw and nut, positioning via ProScale digital readout
- Tape Appicators (2): Manual positioning, automatic application
- Roll Bed: Stainless steel rollers
- Reference Rolls: Solid aluminum on cutting area
- Material Feed: Double belt with variable DC motor, 0 to 50 FPM
- Both linear as well as cross cuts up to 15” away from the fixed fence are possible
- Construction: Tubular welded frame
- Machine Dimensions (LxWxH): 132”x63”x72”
- Service Connection Requirements
- Voltage: 230V 3Ph
- Air: 100 PSI
- Dust Port: 6” requiring 785 CFM
- Warranty
- 2 Year Warranty
- Star V Machinery Customer Satisfaction Guarantee
