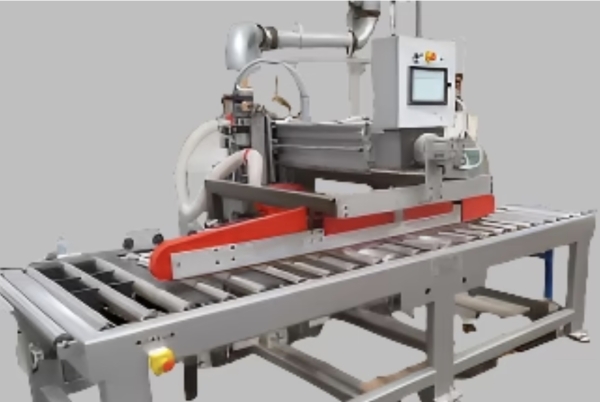

Star V Machinery Model SLG-1000 Fully-Automatic Single V-Grooving Machine

  • star_v_sl1000.jpg
Machine Available
Stock #102150N
New
   CALL FOR PRICE

  • Overview
    The Star V SLG-1000 is designed with one cutting station and one tape station.
    With the push of one button via a Servo system to control the position of the cutting head, tape applicator and the feed height, there is virtually no down time to the in the production schedule. With the ability to make numerous profile changes throughout the day, saving and recalling recipe files for over 1000+ jobs stored locally on the screen, making this an ideal choice for a variety of fabricators.
    Creating a V-fold edge, instead of building up the front edge, or a cove back splash profile, the v-groove is being applied from above, simultaneously taping from below, with the workpiece moving thought the machine automatically
    Features of SLG-1000
  • Narrowest Board: V-groove center from fence + 3.5”
  • Widest/Longest Board: Unlimited
  • Shortest Board: 20”
  • Thickness Capacity: 1/4” to 1-13/16”
  • Cut Distance from Fence: 15” standard, options available 25”, 30”, 36”, and 40” upon request
  • Spindle Motor (1): 10 HP, 3 Ph, 3,600 RPM
  • Cutter Spindle: 30mm x 72mm, with clamping 8mm keyway
  • Cutter Max. Diameter: 9-1/4”
  • Cutter Depth Adjustment: Hand wheel on linear bearings and rails, ACME nut and rod, position on digital indicator
  • Cuter Side Movement: Servo on linear bearings and rails, ball screw and nut, positioning via 10” touchscreen
  • Tape Applicator (1): Servo positioning and feed back on 10” touchscreen, automatic application
  • Roll Bed: 15” stainless steel rollers
  • Reference Rolls: Solid aluminum on cutting area
  • Material Feed: Double belt with variable DC motor, 0 to 50 FPM
  • Both linear as well as cross cuts up to 15” away from the fixed fence are possible
  • Construction: Tubular welded frame
  • Machine Dimensions (LxWxH): 132” x 63” x 72”
    Service Connection Requirements
  • Voltage: 230V 3Ph
  • Air: 60 PSI
  • Dust Port: 6” requiring 785 CFM
    Warranty
  • 2 Year Warranty
  • Star V Machinery Customer Satisfaction Guarantee
