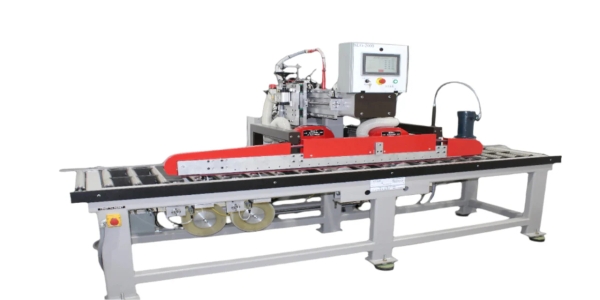

Star V Machinery Model SLG-2000 Fully-Automatic Double V-Grooving Machine

  • SLG_2000-01.jpeg
Machine Available
Stock #102250N
New
   CALL FOR PRICE

  • Overview
    V-Folding machine designed to create a build-up front edge, cove back splash profile, scribe strip, triple fold profiles, dado for back panel, double edge shelving etc.
    This machine comes standard with all available options for enhanced operator convenience and performance. Other v-groove angles besides the standard 90 degrees can easily be employed. The tape, which acts as the hinge for miter folding, is applied automatically and cut to length. The feeder belt moves the material over the high-precision, stainless steel roller bed to minimize friction and reduce or eliminate marring of the material. The v-groove is being applied from above. Motorized set-up features and other gadgets add to the operator convenience for this machine.
    Features of SLG-2000
  • Narrowest Board: V-groove center from fence + 3.5”
  • Widest/Longest Board: Unlimited
  • Shortest Board: 20”
  • Thickness Capacity: 1/4” to 1-13/16”
  • Cut Distance from Fence: 15” standard, options available 25”, 30”, 36”, and 40” upon request
  • Spindle Motors (2): 10 HP, 3 Ph, 3,600 RPM
  • Cutter Spindle: 30mm x 72mm, with clamping 8mm keyway
  • Cutter Max. Diameter: 9-1/4”
  • Cutter Depth Adjustment: Hand wheel on linear bearings and rails, ACME nut and rod, position on digital indicator
  • Cuter Side Movement: Servo on linear bearings and rails, ball screw and nut, positioning via 10” touchscreen
  • Tape Applicators (2): Servo positioning and feed back on 10” touchscreen, automatic application
  • Roll Bed: 15” stainless steel rollers
  • Reference Rolls: Solid aluminum on cutting area
  • Material Feed: Double belt with variable DC motor, 0 to 50 FPM
  • Both linear as well as cross cuts up to 15” away from the fixed fence are possible
  • Construction: Tubular welded frame
  • Machine Dimensions (LxWxH): 138” x 63” x 72”
    Service Connection Requirements
  • Voltage: 230V 3Ph
  • Air: 100 PSI
  • Dust Port: 6”
    Warranty
  • 2 Year Warranty
  • Star V Machinery Customer Satisfaction Guarantee
