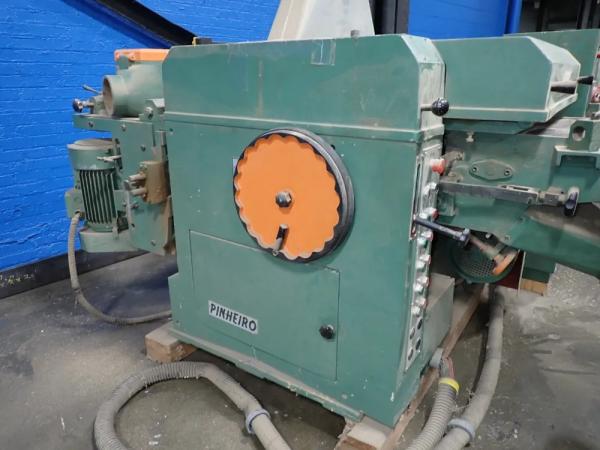

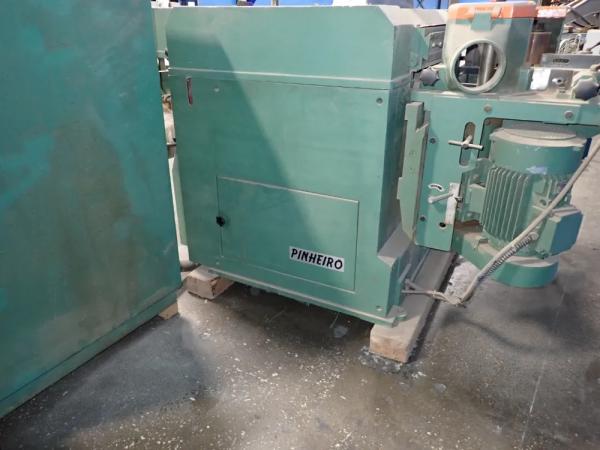

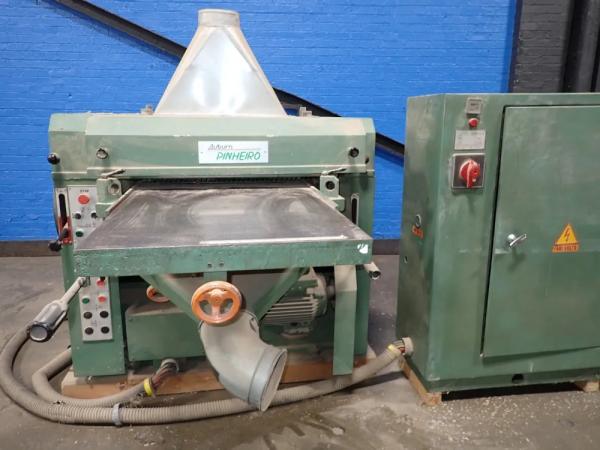

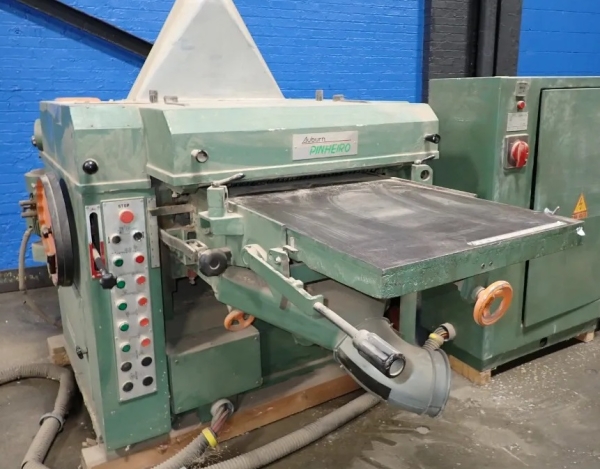

Pinheiro Model MF4-630 Four Sided Planer

• Model MF4-630, 24" Four Sided Planer
• 24" max. planing width
• 20" max. moulding width
• 3" min. moulding width
• 8" max. thickness capacity
• 16" min. length workpiece unbutted, 9" butt fed
• 7.5 HP top head
• 5.5 HP bottom head

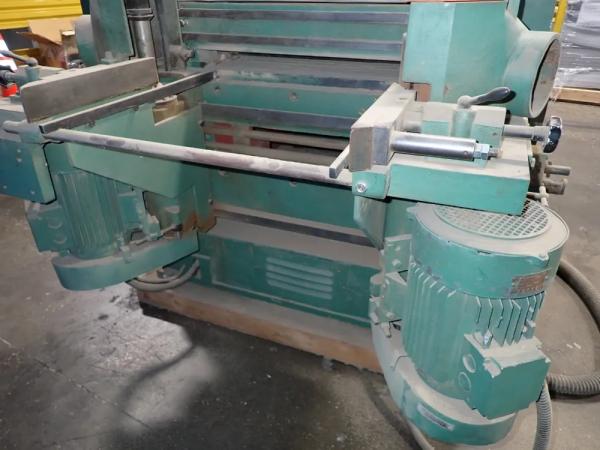

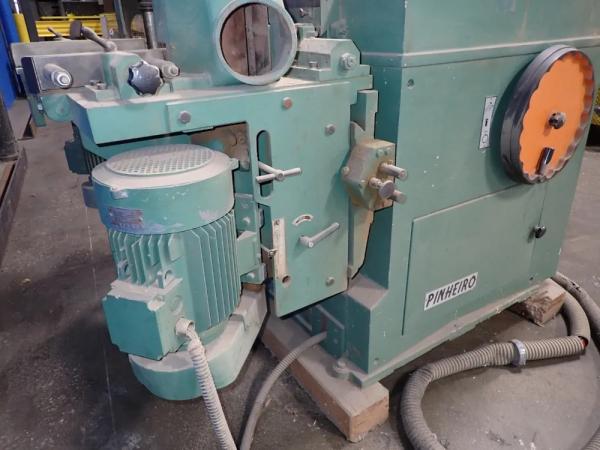

• side heads are 17.5 HP each
• 4 HP variable speed feed 20 to 100 FPM
• top and bottom heads are 4-knife straight knife cutter heads
• side heads are 5" dia. X 8" long 4-knife corrugated back cutter heads
• 1-13/16" dia. arbor on side heads
• 5,000 RPM spindle speed on side heads
• power raise and lower of table
• sectional feed rolls
• (9) powered feed rolls
• 8" dia. dust hood on top head
• 7" dia. dust hood on bottom head
• 6" dia. dust hood on each side head

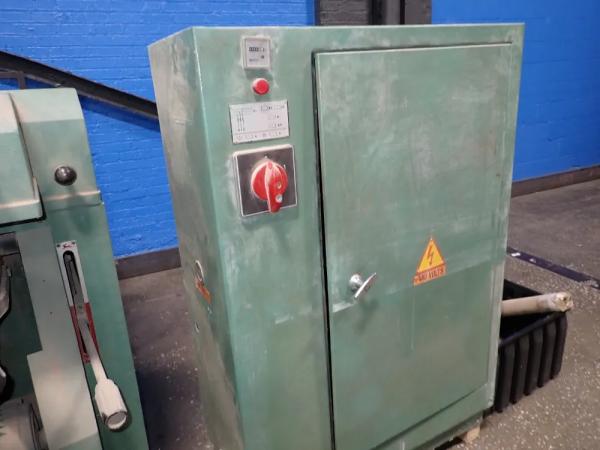

• separate electrical control panel
• Total HP 59; 440 Volt; 77 amps
