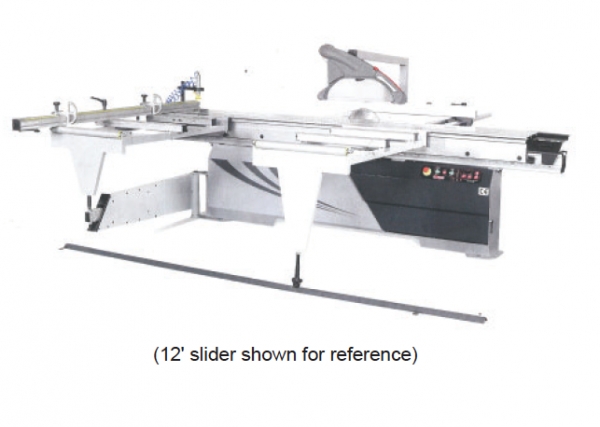

Northtech Model NT-SPS16M-S Sliding Panel Saw with 10' table
Machine Available
Stock #911652N
New- Main motor: 7.5HP
- Voltage: 3PH, 230V or 460V
- Main saw blade diameter maximum.: 16"
- Max cutting height with blade at 90°: 80mm (3")
- Max. cutting height with blade at 45°: 65mm (2.6")
- Table dimension: 37" x 30"
- Main blade speed: 4,500-5,500RPM
- Sliding table: 17" x 120"
- Main saw bore: 30mm
- Scoring saw blade: 200mm (8")
- Scoring motor power: 1HP
- Scoring blade speed: 7250 rpm
- Main table: 550x940mm (22" x 36")
- Side table: 380x540mm (15" x 22")
- Rear table 785x970mm (31" x 39")
- Sliding table dimensions: 17" x 10' (8' and 12' options)
- Cutting width: 51"
- 400mm (16" blade included)
- Manually positioned rip fence
- Powered saw height adjustment with readout
- Powered tilt adjustment with readout
- Manual controlled crosscut fence
