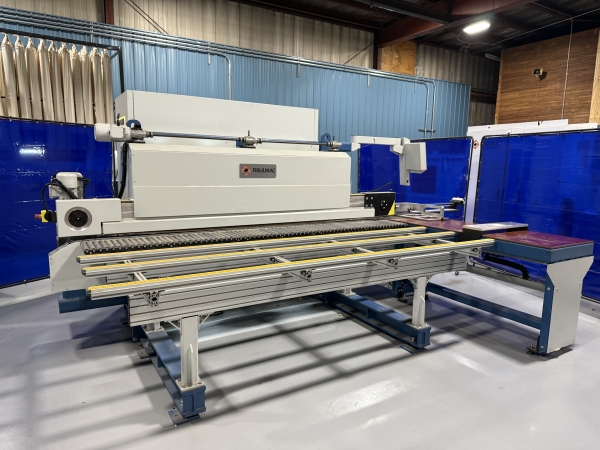

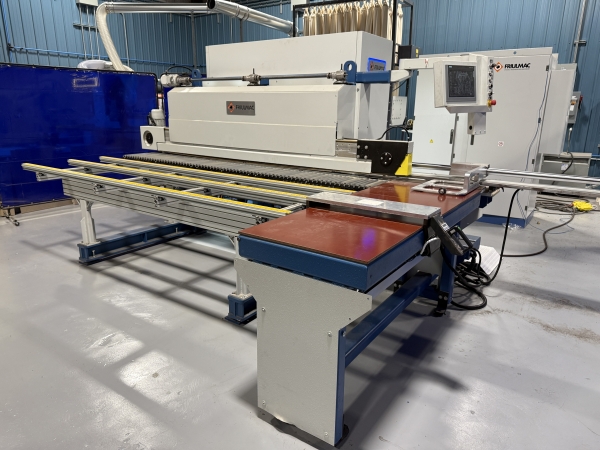

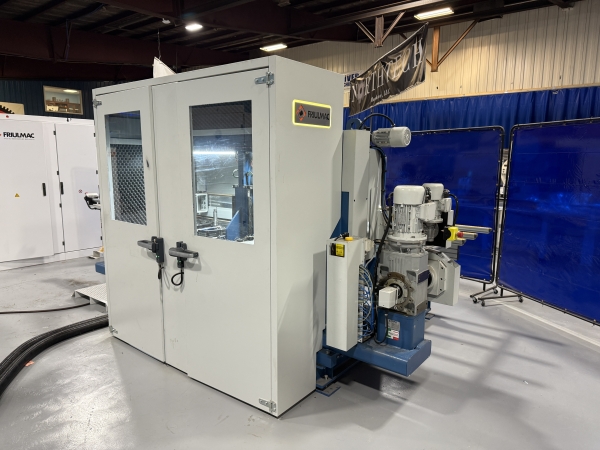

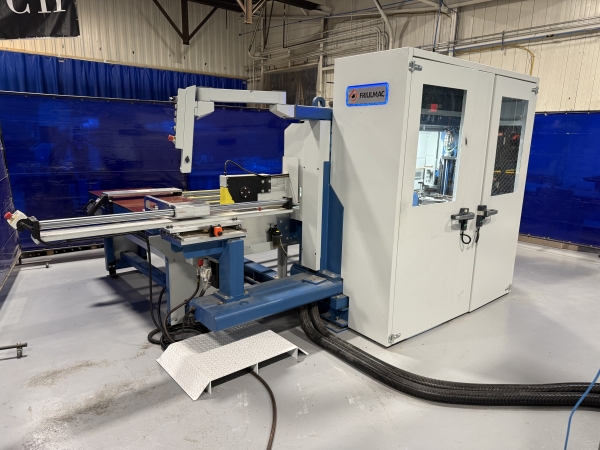

Friulmac Model Fleximat-HS Single End Tenoner

• The FLEXIMAT series has been designed to cope with a wide variety of products in the field of fixtures, furniture and panel processing, ranking at the top of the category for sturdiness and reliability. Equipped with work-piece return systems or integrated in automatic processing lines, it represents the most flexible solution for both small or large production requirements.
• Squaring, profiling, moulding and sanding: all in a single monolateral machine to grant you the maximum production flexibility.
• MACHINE COMPOSITION

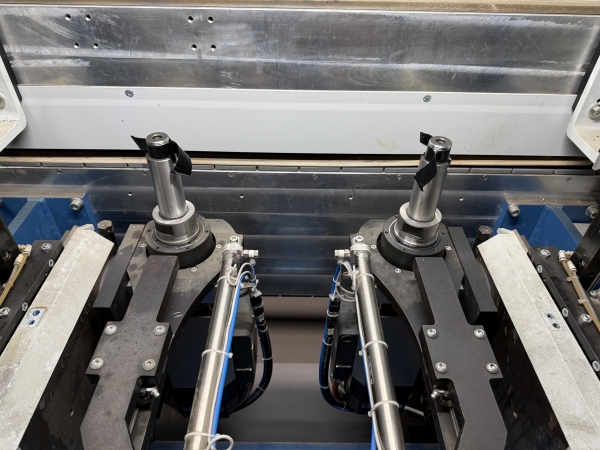

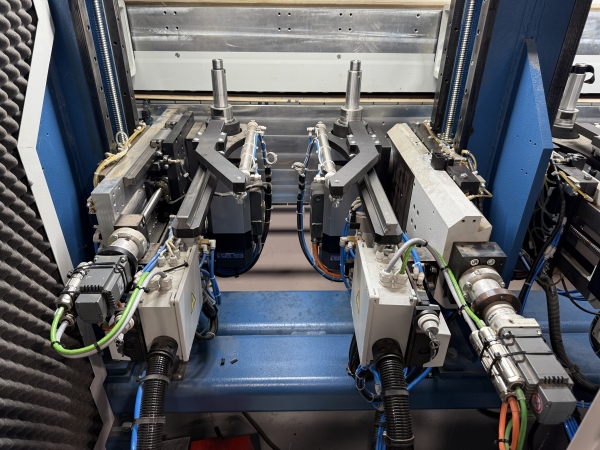

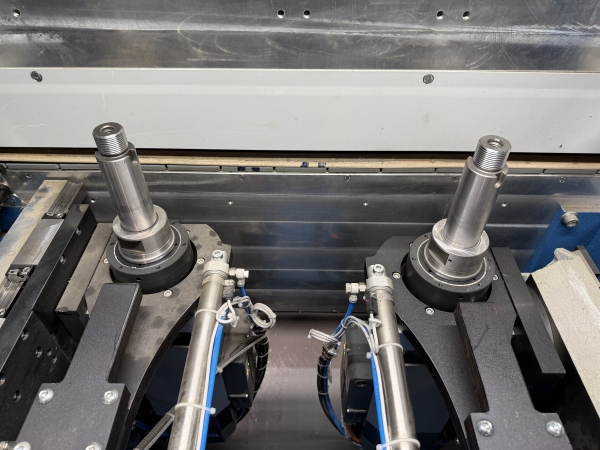

• 1st Station Jump Profiling Unit 6KW (8HP), 6-12,000 rpm, Spindle Diameter 40mm, HSK63F Tool Holder Fitting, Automatic Adjustments for IN/OUT and UP/DOWN
• 2nd Station Profiling Unit 6KW (8HP), 6-12,000 rpm, Spindle Diameter 40mm, HSK63F Tool Holder Fitting, Automatic Adjustments for IN/OUT and UP/DOWN
• 3rd and 4th Station Wheel Sanding Unit 6KW (8HP), 750-3000 rpm, Spindle Diameter 40mm, HSK63F Tool Holder Fitting, Automatic Adjustments for IN/OUT and UP/DOWN
• Working Dimensions:
• Length (Min/Max): 150/1500mm (5.9"/59")
• Width (Min/Max): 150/1500mm (5.9"/59")
• Thickness (Min/Max): 12/25mm (0.5"/1")

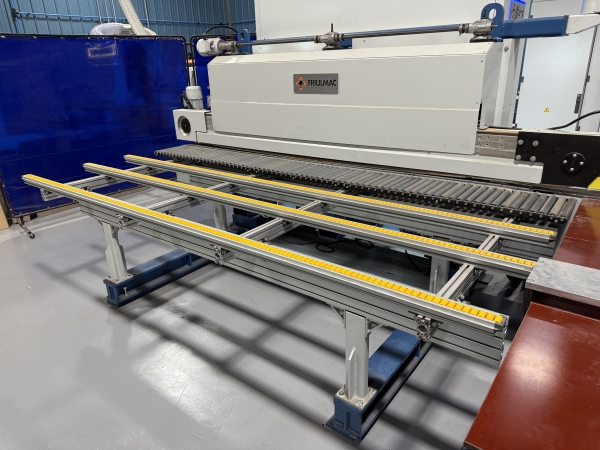

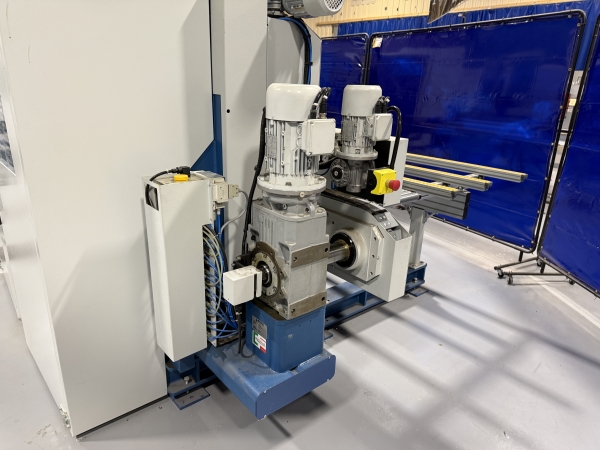

• Workpiece Feeding Occurs by Means of Precision Chain Built of Hard Casting Steel Components, Connected by Pins Mounted on Bearings
• Feeding Chain Speed, adjustable from 5 to 30 m/min. (16 to 98 ft/min.)

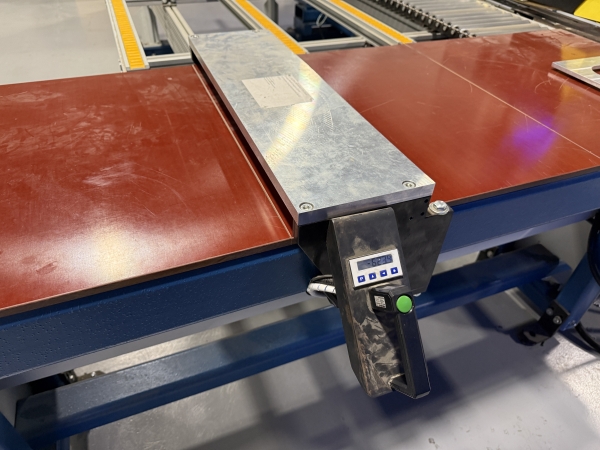

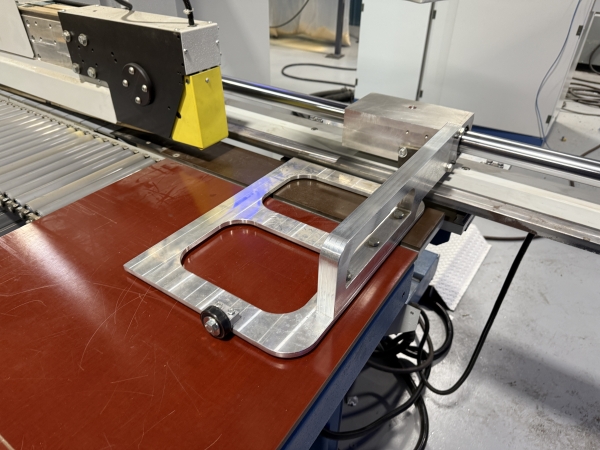

• Equipped with Back Side Squaring Fence, (manually excludable)
• Motoroized Top Pressure System Controlled by Inverter

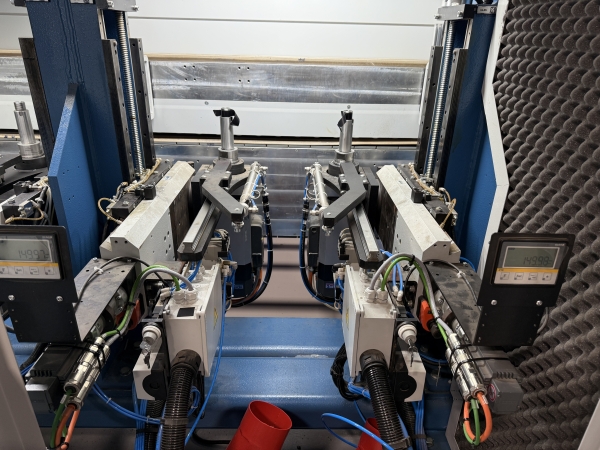

• Automatic Quick-Change System for Profiling and Disc Sanding Units HSK63F for each Working Spindle
• Dust Hood Pneumatic Fast Displacement for Each working Spindle
• Current Voltage: 460V 3PH

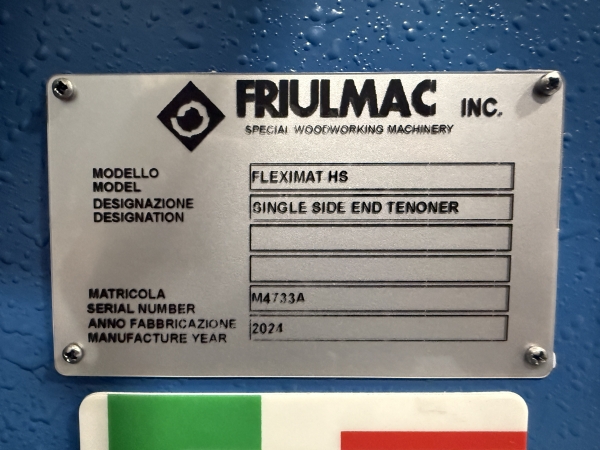

• Serial no. M4733A
