Northtech Model NT-SLR-14SC PRECISION STRAIGHT LINE RIP SAW
Machine Available
Stock #85452N

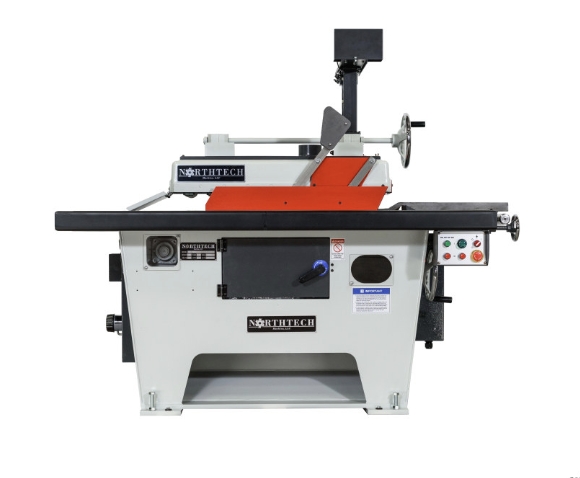

New- Northtech Model NT-SLR-14SC PRECISION STRAIGHT LINE RIP SAW
- FEED SYSTEM
- Saw motor: 15HP, 3PH 230V/460V
- Feed: 1.5HP variable feed range from 40 - 120 fpm
- PRODUCT DIMENSIONS
- Min. thickness: 3/16"
- Max depth of cut: 3-1/8" with 14" Ø blade
- Max. width of stock: (Blade to column arms) 18"
- FEATURES Chain and Race equipped with NT "True Track" adjustment
- Table size 61" x 34"
- Machine frame is constructed of a 1" thick base plate
- Solid steel frame with 1" thick column arms
- Safety interlock on blade access door preventing operator entry while blade is spinning
- Blade is equipped with pneumatic braking system
- 2" arbor and large support bearings
- Glue line rip is 8ft on 4/4 stock at 50fpm
- Motors and electrical components are UL/CE rated
- Industrial fence with cam lock quick release on rack and pinion glide
- Passline: 31-3/8"
- Machine Dimensions 70" X 54" X 63"
- Two rows of heavy duty kickback fingers
- (6) large pressure rollers for optimum holding power
- An automatic mechanical oiling system with low level feed stop
- (1) Laser light, laser guard and mounting bracket are included
