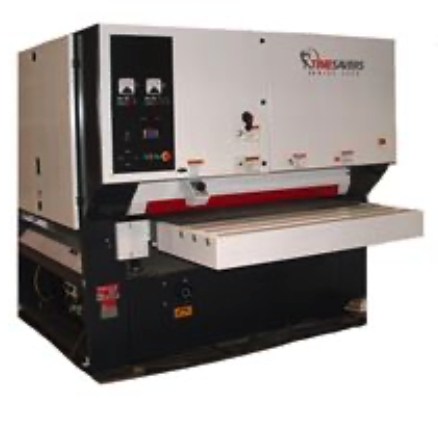

Timesavers Model 3331-25-133 Three Head 52" Twin Pad Widebelt/Orbital

Machine Available
Stock #71530N
New
   CALL FOR PRICE

  • Timesavers Model 3331-25-133 Three Head 52" Twin Pad Widebelt/Orbital Sander
  • Specifications:
  • Abrasive size combination head: 52 x 75"
  • Abrasive size orbital heads: 14 x 52"
  • Main motors: 30, 7.5, 7.5 HP
  • Maximum width stock: 51"
  • Minimum part length with vacuum bed: 6"
  • Maximum thickness opening: 6"
  • Infeed loading area: 24"
  • Feed speed: 15-45 FPM
  • Approximate full load amps at 460 volt: 120
  • Passline height: 32-38 Variable
  • Dust extraction: 5,250 CFM (5" static pressure)
  • Compressed air usage: 6 CFM @ 90psi
  • Standard Features:
  • Dual Action Sanding Head: (1st head position)

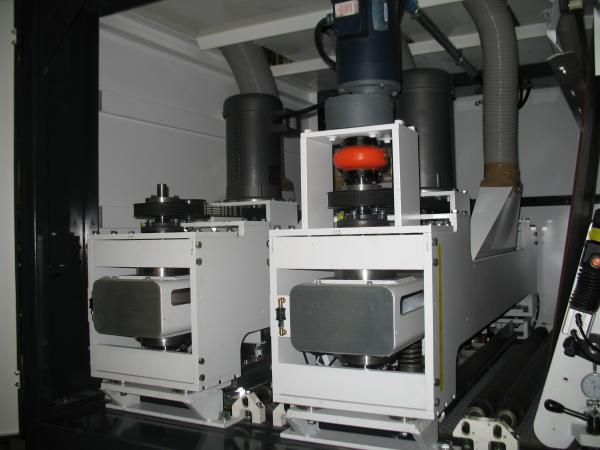

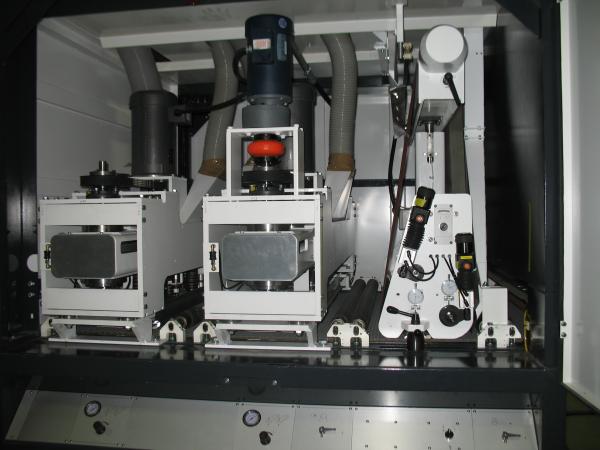

  • Twin Pad Dual Motion Orbital Heads:(2nd & 3rd positions)
  • Air Knife Blow-off
  • Infeed Stop Bar
  • Dual Infeed and Dual Outfeed Holddown Rolls
  • Air Operated Disc Brakes
  • Centralized Control Panel
  • Dial Indicators on Adjustable Drum Heads
  • Air Pop Up on Drums/Platens
  • Quick Release Outboard Support on Widebelt Head
  • Main Motor Percentage Watt Meter
  • Hour Meter
  • Four Jack Bed Construction
  • Motorized Thickness Adjustment
  • Electronic Go-To Device
  • Variable Speed Conveyor Drive
  • Spare Platen Assemblies
  • Through-Beam Abrasive Belt Tracking
  • U.L. Listed Components A/C Frequency
  • Vacuum Conveyor Bed
  • Factory Start-up and Training
