Timesavers Model 3341-25-1333 SP Four Head 52" Single Pad Widebelt/Orbital
Machine Available
Stock #71510N

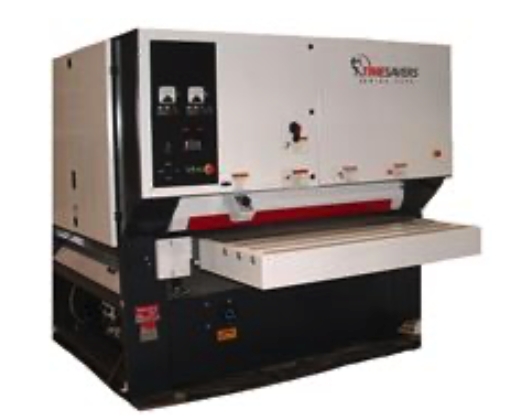

New- Timesavers Model 3341-25-1333 SP Four Head 52" Single Pad Widebelt/Orbital Sander
- Specification:
- Abrasive Size Combination Head: 52 x 75"
- Abrasive size (orbital heads): 52 x 14"
- Main motors: 30, 5, 5, 5HP
- Maximum width stock: 51"
- Maximum thickness opening: 6"
- Minimum part length with vacuum bed: 6"
- Infeed loading area: 24"
- Feed speed: 10-30 FPM
- Passline height: 33-38", Variable
- Dust extraction 7000 CFM (5" static pressure)
- Compressed air usage: 8 CFM @ 90psi
- Standard Features:
- Dual Action Sanding Head: (1st head position)
- Single Pad Dual Motion Orbital Head:(2nd – 4th positions)
- Infeed Stop Bar
- Dual Infeed and Dual Outfeed Holddown Rolls
- Air Operated Disc Brakes
- Centralized Control Panel
- Dial Indicators on Adjustable Drum Heads
- Air Pop Up on Drums/Platens
- Quick Release Outboard Support on Widebelt Head
- Quick Change Abrasive on Orbital Heads
- Main Motor Percentage Watt Meter
- Hour Meter
- Four Jack Bed Construction
- Motorized Thickness Adjustment
- Electronic Go-To Device
- Variable Speed Conveyor Drive
- Through-Beam Abrasive Belt Tracking
- U.L. Listed Components
- Factory Start-up and Training
