Timesavers Model 2331-45-001 Three Head 52" Widebelt
Machine Available
Stock #71340N

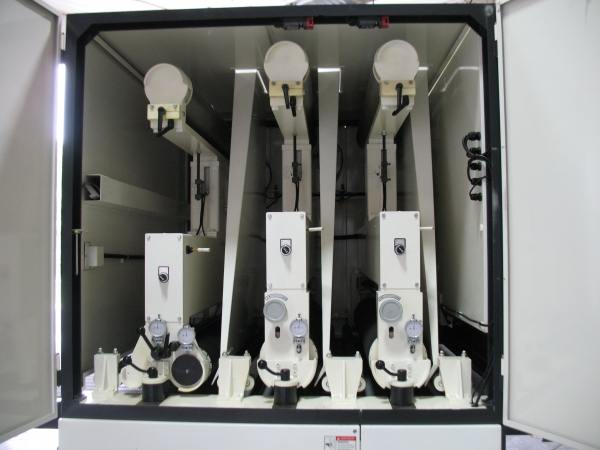

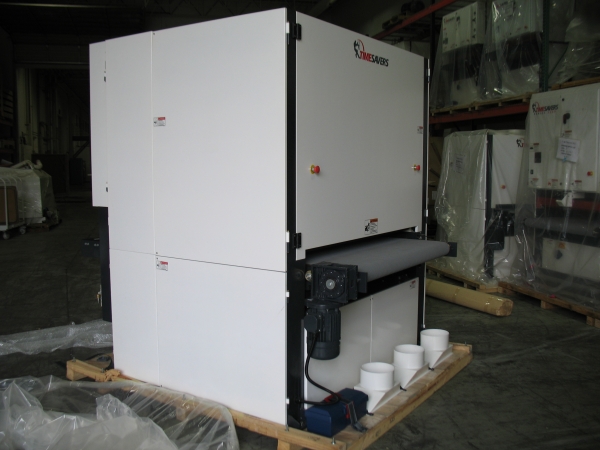

New- Timesavers Model 2331-45-001 Three Head 52" Widebelt Sander
- Specifications:
- Abrasive belt size: 52" x 103"
- Main motor: 30 HP, 25 HP & 25 HP
- Maximum width stock: 51"
- Minimum part length: 15"
- Maximum thickness opening: 5"
- Indeed Loading Area: 14"
- Feed speed: 15-45 FPM
- Passline height: 33-38"
- Dust extraction: 5480 CFM (5” static pressure)
- 6 CFM @ 90 psi
- Standard Features:
- 8” Diameter Contact Drum: (first & second heads)
- Dual Action Sanding Head: (third head)
- 30 & 25 Horsepower Main Drive Motors
- Dual Infeed and Dual Outfeed Holddown Rolls
- Air Operated Disc Brakes
- Centralized Control Panel
- Four Jack Bed Construction
- Infeed Stop Bar
- Dial Indicators on Adjustable Drum/Platen Heads
- Hour Meter
- Main Motor Percentage Load Meters: Electronic Go-To Device
- Motorized Thickness Adjustment
- Through-Beam Abrasive Belt Tracking
- Quick Release Outboard Support
- Part Set-up Device
- U.L. Listed Components
- Spare Platen Assembly
- Variable Speed Conveyor Drive
- Factory Start-up and Training:
