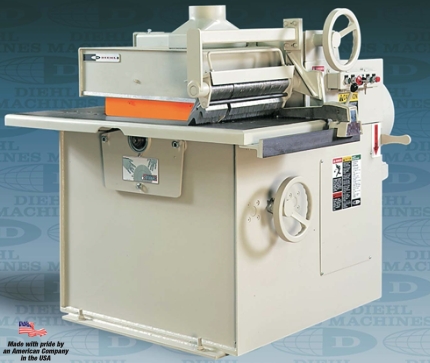

Diehl Model MR-90

• Diehl Model MR-90
• Specifications
• Various Motor HP Available
• Feed Motor: 2 HP
• Feed Speeds Available from 50-150 FPM
• Minimum Thickness: 1/4" (6mm) Maximum Thickness: 2.5" (38mm) Minimum Length: 12" (305mm) Std. Optional 8" (203mm) available
• Maximum Cutting Width: 12" (305mm)
• Saw Blade Dimensions: 12” with 2 3/4” hole for sleeve with 5/16” keyway
• Feed Rolls: 4” dia. on 5” centers, spur feed rolls 5” dia
• Arbor drive Direct motor driven with flexible coupling and manual arbor brake
• Standard with four upper powered corrugated feed rolls and two lower non-driven bed rolls providing a dependable and positive feed system
• Outboard bearing for the saw arbor
• Pivoting side guard mounted on the feed roll housing
• Upper and lower anti-kick back fingers and a manually activated arbor brake
• Optional
• Center feed roll can be added for ripping short length stock
