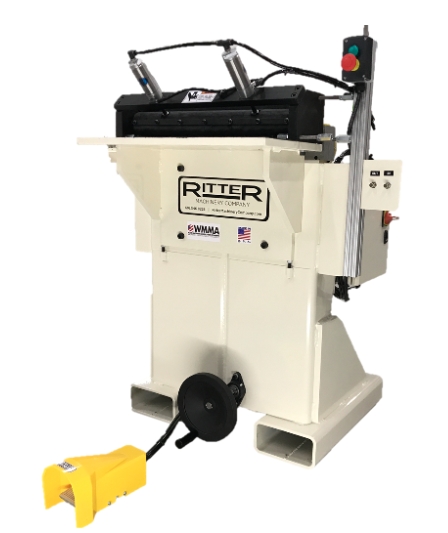

Ritter Model R853 Horizontal/Vertical Drawer Drill
Machine Available
Stock #05940N
New- Ritter Model R853 Horizontal/Vertical Drawer Drill
- General Specifications:
- Foot Actuated Drilling and Clamping Cycle
- (13)-Spindle Gear Head
- 32mm Spindle Centers on Gear Head
- (7) Right Hand, (6) Left Hand
- 10mm Bored Collets
- 2 HP Spindle Drive Motor, TEFC
- 0-2" Adjustable Boring Depth Turret
- 1/2" - 3/4" Thick Drawer Box Sides
- 14" Maximum Drawer Box Height
- 12" X 24" Machined Steel Work Table
- 34" Work Height
- Horizontal / Vertical Boring Fence System
- Horizontal / Vertical Material Clamp System
- Tooling Not Included
- Designed and Manufactured in the USA
