Omga Model TR 2B I INT NC

Machine Available
Stock #813510N
New
   CALL FOR PRICE

  • Omga Model TR 2B I INT NC
  • Data Sheet:
  • Max Distance Between Saws: 9'2"
  • Min. Distance Between Saws: 23 5/8"
  • Min. Distance Between Saws 45 deg: 23 5/8"
  • Cross Cut Capacity 90 deg: 6 3/4"
  • Cross Cut Capacity 45 deg: 4 1/2"
  • Max. Depth of Cut: 4 1/4"
  • Motor Power: 2 x 4HP
  • Saw Blade Bore: 1"
  • Saw Blade Diameter: 370mm (15")
  • Arbor Speed: 3200
  • Dust Port: 2 x 3 1/8"
  • General Information:

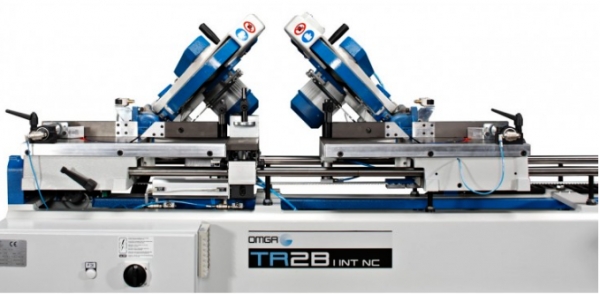

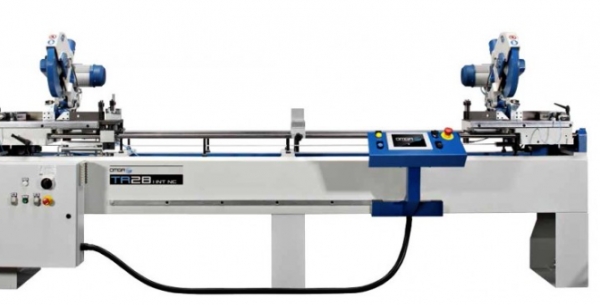

  • 14" Compound Double Mitre Saw fitted with one fixed head on the left and on movable head on the right with automatic traverse

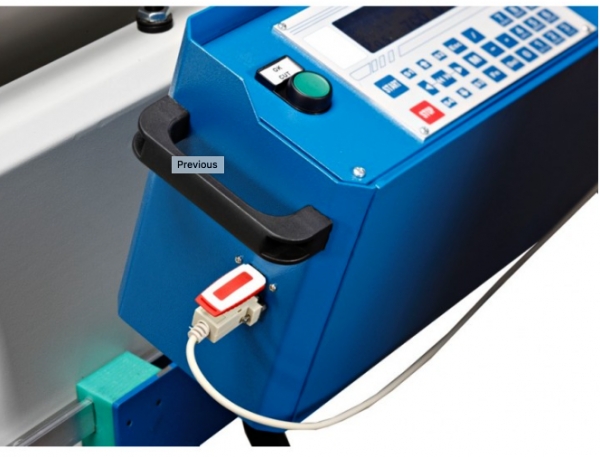

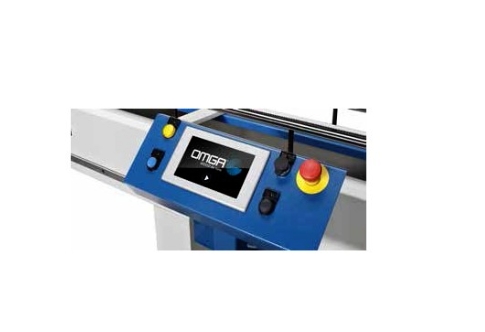

  • 7" Touch-Screen display NC
  • Precision ball bushing for the smoothness of movement
  • Positive stops for all the main angles are standard on both heads
  • One standard pneumatic vertical clamp on each head guarantees stability to the workpiece
  • Options:
  • Additional horizontal or vertical pneumatic clamps
  • Increased cutting length to 11"4", 14'7" or 18' available
  • Air over oil descent of the heads
  • Brackets for short pieces
  • Spray mist system
