Pillar Model HPLD Horizontal Point To Point Lockdowel Inserter
Machine Available
Stock #22500N

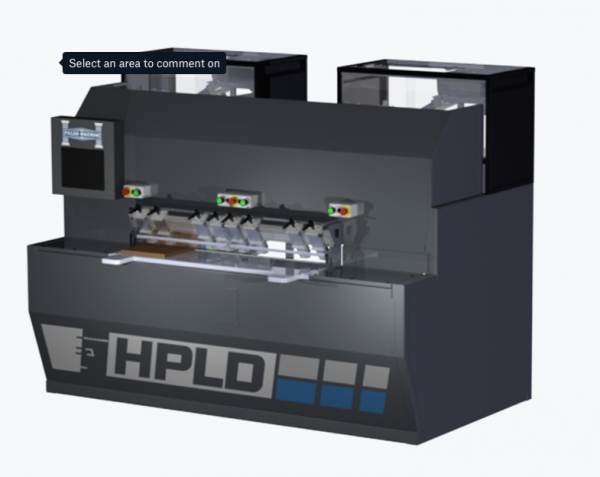

New- Pillar Model HPLD Horizontal Point To Point Lockdowel Inserter
- The HPLD is a horizontal point to point Lockdowel inserting machine
- This machine will insert H-clips, Channel Locks and Spring Pins with ease
- Using CNC control, this machine positions the drilling spindle to bore holes and insert the Lockdowel hardware
- Using the HPLD will allow you to produce three times as much product without needing more employees
- There’s no need for glue or clamping with the HPLD and Lockdowel system
- Lockdowels help reduce assembly time by 80% or more
- Putting together cases, cabinets and furniture should take minutes, not hours
- Cabinets built with EClips are SEFA 8 tested and passed
- They are in compliance with AWI standards
- You also have the ability to link the HPLD through Cabinet Vision’s screen-to-machine software
- Standard Features
- CNC X-Axis
- 15” Touch Screen
- 4 Work Zones
- 3 HP Direct Drive Routing Spindle
- Digital Readouts for height and depth
- 49” Work Area
- Lockdowel Eclips, feeders and inserters
- Lockdowel Spring Pin, feeder and inserter
- One 3” dust port
- CFM 350
- Options
- 96” Work Area
- Laser Part Measuring
- Barcode Reader
- Servo Controlled Y and Z Axis
- Wooden Dowel Insertion Unit
