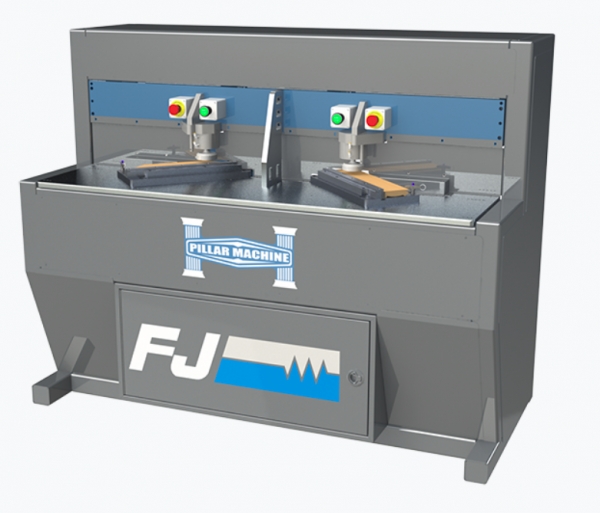

Pillar Model FJ Finger Joint Miter Machine

• Pillar Model FJ Finger Joint Miter Machine
• The FJ is a dual spindle PLC machining center used for producing high quality finger joint miter parts used in cabinet door manufacturing
• It includes two 5 HP motors for cutting the miter, two 1 HP spindles for drilling dowel holes
• There is a hogging tool to remove the majority of material before the finger joint is cut
• This saves on tooling costs for finger joint tools
• The FJ is driven and controlled by a Galil PLC
• This means there is no potentially complicated computer to operate
• This machine is controlled by PLC, pneumatics and relays
• Because this machine has two independent carriages it can simultaneously cut two parts at one time making it extremely fast
• It can produce between 250-350 doors per 8 hour shift with one operator The FJ is a dual spindle PLC machining center used for producing high quality finger
• joint miter parts used in cabinet door manufacturing
• It includes two 5 HP motors for cutting the miter, two 1 HP spindles for drilling dowel holes
• There is a hogging tool to remove the majority of material before the finger joint is cut
• This saves on tooling costs for finger joint tools
• The FJ is driven and controlled by a Galil PLC
• This means there is no potentailly complicated computer to operate
• This machine is controlledby PLC, pneumatics and relays
• Because this machine has two independent carriages it can simultaneously cut two parts at one time making it extremely fast
• It can produce between 250-350 doors per 8 hour shift with one operator
• Standard Features 2 PLC Driven Carriages
• 2 Work Zones
• Dual 5 HP Direct Drive Motors
• Dual 1 HP Dowel Hole Drill Spindles
• Top and Side Clamps
• Material Width: 1 1/2” to 3 1/2”
• Material Thickness: 5/8” to 1”
• 250-350 Doors Per 8 Hr Shift
• PSI 90 - 110
• Dust Ports 4” (2X)
• CFM 700
• Options
• Diamond Tooling
