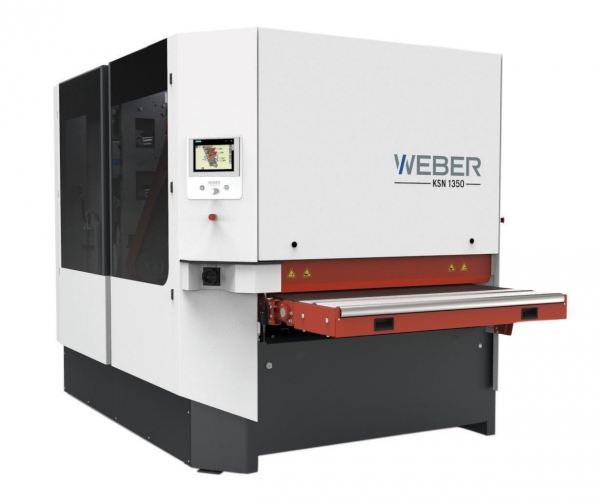

Weber Model KSN-36-1350 52" 3 Head Wide Belt Sander
Machine Available
Stock #71500N
New- Weber Model KSN-36-1350 52" 3 Head Wide Belt Sander
- Three sanding belts for calibrating, veneer and lacquer sanding. With constant pass-line 900 mm and in the following configuration:
- Head 1 - Contact Roller Head with grooved steel contact roller Ø 210 mm for precise calibration, electrical adjustment of the contact roller for grain compensation, pressure bar guide of the workpieces
- Head 2 - Contact Roller Head with grooved rubber contact roller Ø 300 mm, 60 Shore for absolutely precise calibration, electrical adjustment of the contact roller for grain compensation, pressure bar guide of the workpieces
- Head 3 - CBF - Dual Action Head with grooved rubber contact roller Ø 130 mm, 60 Shore programme controlled adjustment and grain compensation of the contact roller (accuracy 0.1 mm), cross operating lamella belt with separate drive 4,0 kW, ISA segmented pad system with 22 mm panel scanning and 22 mm pressure piece width workpiece controlled sanding belt blow-off with oscillation
- Operating width 52 in
- Drive sanding head 1 (frequency controlled): 30 Hp
- Drive sanding head 2 (frequency controlled): 25 Hp
- Drive sanding head 3 (frequency controlled): 25 Hp
- Drive feed: 2.6 Hp
- Drive height adjustment: 1.7 Hp
- Sanding belt speed: approx. 590 -3543 ft/min
- Sanding belt dimension: 54 x 103 in
- Panel thickness (min./max.): .157 – 7 in
- Pass-line (constant): 35.4 in
- Feed speed: 6.5 – 39 ft/min
- Compressed air requirement: 80 PSI
- Operating voltage:3PH/480/277VAC/GND 60 Hz
- Control voltage: 24 V DC
- Workpiece Cleaning and Vacuum Conveyor are optional at additional cost
