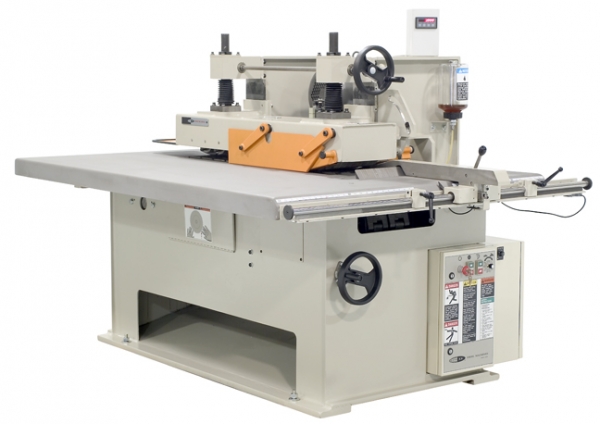

Diehl Model SL65-24 Straight Line Rip Saw

• Diehl Model SL65-24 Straight Line Rip Saw
• Diehl’s Full-Sized Rip Saw, a machine with the speed and performance to meet the most demanding applications and with guaranteed glue line accuracy. All this coupled with Diehl’s legendary quality and durability.
• Arbor Motor: 20HP Belt Drive Standard (Optional 25HP, 30HP, or 40HP Direct Drive Motors Can Be Quoted Upon Request)
• Feed Motor: 3HP
• Feed Speed: Variable, 75 to 200 FPM
• Stock Min. Thickness: 1/8” (3mm)
• Stock Max. Thickness w/ 14” (355mm) Blade: 1.5” (38mm)
• Stock Max. Thickness w/ 18” (457mm) Blade: 4.25” (108mm)
• Stock Min. Length: 12” (305mm)
• Saw Blade Arbor Bore: 2” (50.8mm)
• Throat Capacity: 24” (482mm)
• Arbor Speed: 3450 RPM
• Accurate Glue Line Cut (either straight or hollow): up to 8’ (2.4 m)
• Voltages Available: 208/240/480/575, 3 phase, 60 cycle, 380, 3 phase, 50 cycle w/ 110 control circuit
• Spindle Brake: Automatic
• Vacuum: (1) 6.25” (159mm) and (1) 3.25” (83mm) opening, 1300 CFM (41 cmm) required
• Worktable Height: Nominal 34” (864 mm)
• Upper Anti-Kickback Fingers w/ Cam Controlled Height
• Lower Anti-Kickback Fingers in Table
• Dimensions: 87” (2217 mm) L x 69” (1372 mm) W x 56” (1423 mm) H (for 65-19 model)
• Weight: net 5000 lb. (2273 kg), Crated: 5400 lb. (2455 kg), Crated For Export Shipment: 5800 lb. (2637 kg)
