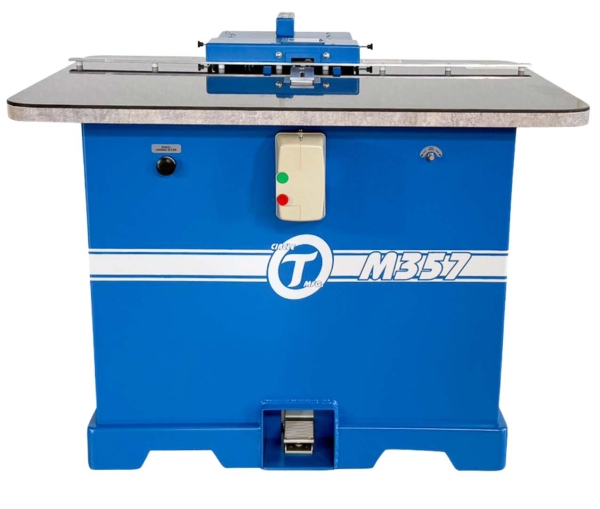

Circle T Manufacturing Model M357 Drawer Notcher
Machine Available
Stock #104400N
New- Circle T Manufacturing Model 357 Drawer Notcher
- Min Thickness of Drawer Box Back: 5/16"
- Max Thickness of Drawer Box Back: 3/4"
- Min Width Inside of Drawer Box: 5 1/8"
- Min Length Inside of Drawer Box: 8 1/4"

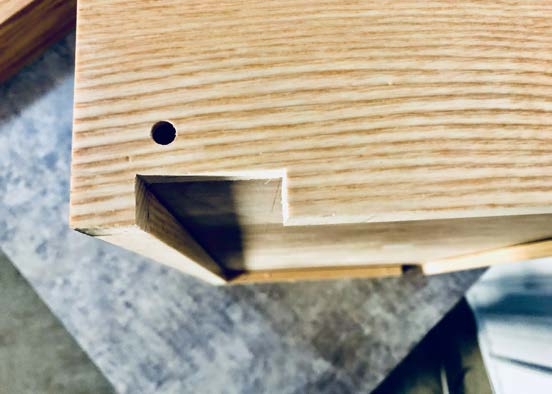

- Standard Notch Size 57mm (35mm and 51mm cutterheads also available for purchase)
- Standard Locating Hole Size 15/64"
- Main Motor: 1.5 HP
- Pneumatic Drill Included

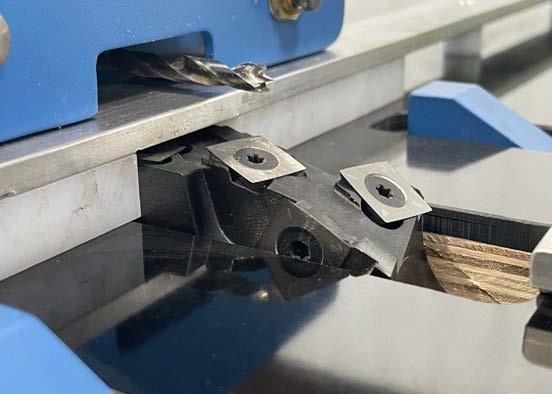

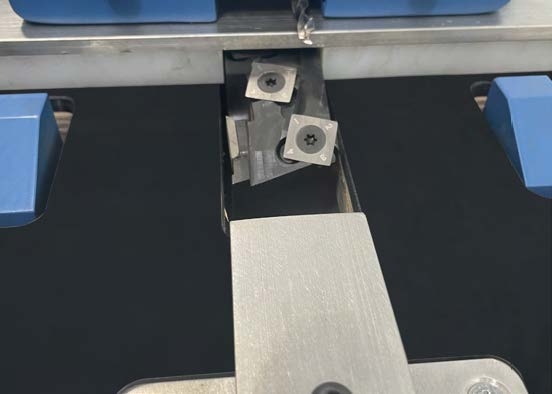

- 8" Insert Cutter
- Arbor Speed: 3,200 RPM
- Available in 120V and 220V Single Phase, 230V and 460V 3phase, Hydraulic, and Pneumatic Drive Packages as well
- Dust Collection Requirements: 670 CFM, 4" Outlet
- Electrical Version Pneumatic Requirement: 100 PSI, 6 CFM
- Pneumatic Version Requirement: 100 PSI, 76 CFM
- 20 AMP Disconnect at 110v 1ph
- 10 AMP Disconnect at 220v 1ph
- 6 AMP Disconnect at 230v 3ph
- 4 AMP Disconnect at 460v 3ph
- Overall Table Size: 31.5" x 47.5"
- Table Operating Area: 21.75" x 47.5"
- Footprint: 52" W x 42" D X 42" H
- Shipping Dimensions: 52"L x 47"W x 39"H
