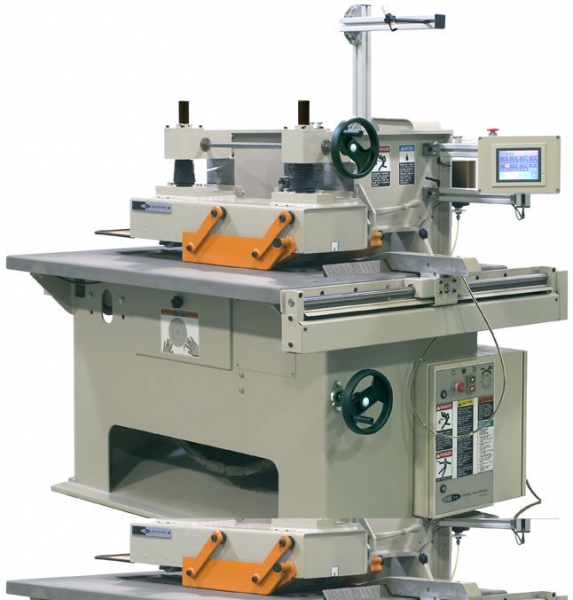

Diehl Model SL-35 Straight Line Rip Saw

• Diehl Model SL-35 Straight Line Rip Saw
• Diehl’s Mid-Sized Rip Saw, an economically priced machine with the speed and performance of large saws, with guaranteed glue line accuracy. All this coupled with Diehl’s legendary quality and durability.
• Arbor Motor: 15Hp (11.2 Kw), 20Hp (15 Kw) optional
• Feed Motor: 2Hp (1.5 Kw)
• Feed Speed: Variable, 50 to 140 FPM (12 to 42 mpm)
• Stock Min. Thickness: 1/8” (3mm)
• Stock Max. Thickness w/ 14” (355mm) Blade: 1.5” (38mm)
• Stock Max. Thickness w/ 16” (406mm) Blade: 2.55” (64mm)
• Stock Min. Length: 12” (305mm)
• Saw Blade Arbor Bore: 2” (50.8mm)
• Throat Capacity: 19” (482mm)
• Arbor Speed: 3450 RPM
• Accurate Glue Line Cut (either straight or hollow): up to 5’ (1.5 m)
• Voltages Available: 208/240/480/575, 3 phase, 60 cycle, 380, 3 phase, 50 cycle w/ 110 control circuit
• Spindle Brake: Automatic
• Vacuum: (1) 6” (152mm), (1) 3” (76mm) opening, 1250 CFM (35 cmm) required
• Worktable Height: Nominal 34” (864 mm)
• Upper Anti-Kickback Fingers w/ Cam Controlled Height
• Lower Anti-Kickback Fingers in Table
• Dimensions: 65” (1651 mm) L x 53” (1346 mm) W x 56” (1423 mm) H
• Weight: net 2750 lb. (1250 kg), Crated: 2960 lb. (1345 kg), Crated For Export Shipment: 3275 lb. (1485 kg)
