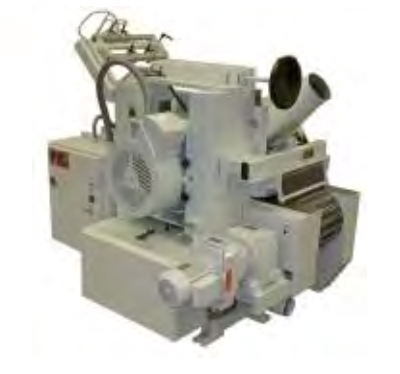

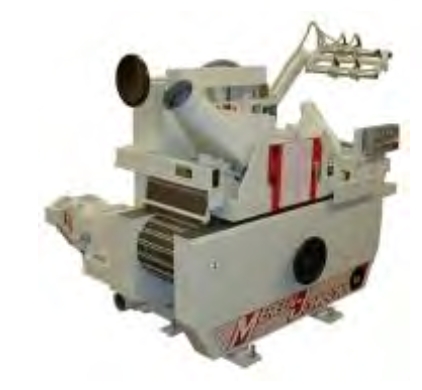

Mereen-Johnson Model 312-DC Ripsaw with Twistlock Collars
Machine Available
#86300N
New- Mereen-Johnson Model 312-DC Ripsaw with Twistlock Collars
- Arbor space capacity: 12"
- Thickness to 3-1/2" using 14" dia. tooling
- 30" glue-joint accuracy
- 22" minimum length for bust-up only
- 6" throat
- GLUE LINE QUALITY CUT
- Motor: 50 HP 3600 RPM TEFC Mereen-Johnson direct arbor drive
- Arbor lock-out on access door
- Air actuated disc arbor brake, stops arbor in approx. 15 seconds
- Power vertical adjustment of the arbor
- 3 HP TEFC heavy duty feed drive assembly with variable frequency drive, feed rates 30' to 235' per minute
- Programmable current trip jam protection
- Heavy duty pressure head equipped with side arbor access door and top access door facilitating the use of optional CamLock or TwistLock saw collars
- Four (4) TwistLock saw collars included
- Hold downs & Bed plate: Four 3" dia. air loaded overhead idle press rolls
- Full width segmented maple overhead spring loaded bedplate
- Manual handwheel vertical adjust of press rolls and bed plate for unit vertical adjust with scale and pointer thickness reference
- Kickback fingers: Single bottom and double upper infeed, and single upper outfeed
- Machine mounted, pivoting laser light mounting bracket, arranged for mounting up to six (6) laser lights. Pivoting feature allows for fast and easy laser light and saw blade alignment. Four (4) diode laser lights included
- OPTIONS AVAILABLE UPON REQUEST
