Maggi Model System 46 Boring Machine

Machine Available
Stock #06950N
New
   CALL FOR PRICE

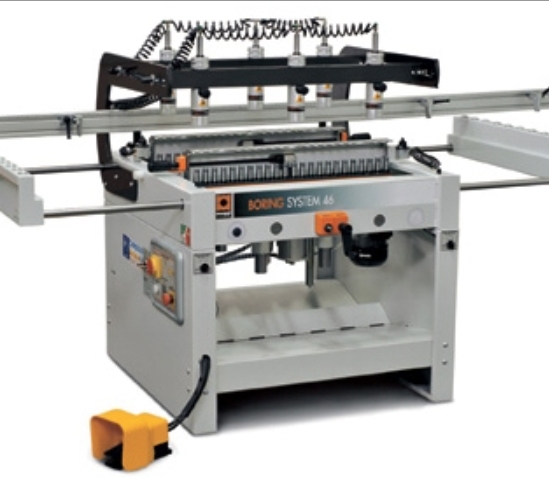

  • The Maggi System 46 Boring Machine

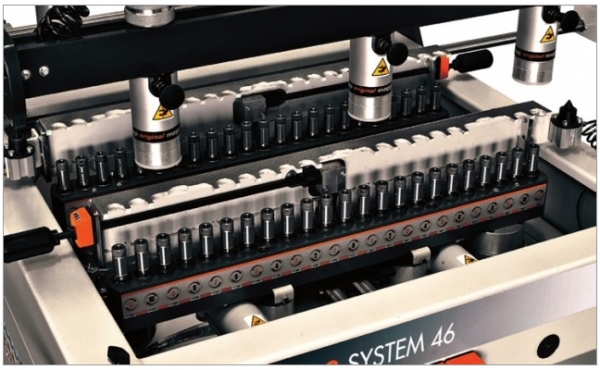

  • Provides (2) 23-spindle heads on 32 mm centers
  • Front end adjustment for quick and easy set-up
  • (2) 1.5 HP 2,800 RPM motors; max.
  • Boring depth is 2-1/16" (55 mm)
  • Side depth counter system; extractable 400 mm support rollers for long panels
  • Maximum distance between heads is 25-19/32" (650 mm) and minimum width is 5-1/8" (130 mm)
  • Complete with: 46 quick change chucks, 10' extension fence with (4) flip-stops and (2) pneumatic reference pins; (6) patented safety clamps
  • This machine can be used for single or double row line drilling
  • Uses 22 LH (red) and 24 RH (black) boring bits
  • Working air pressure 94 psi
  • 230v, 3ph
  • Shipping Within the Continental US: $299.00

Additional Machine Information
- BrochureBoringSystem46.pdf
